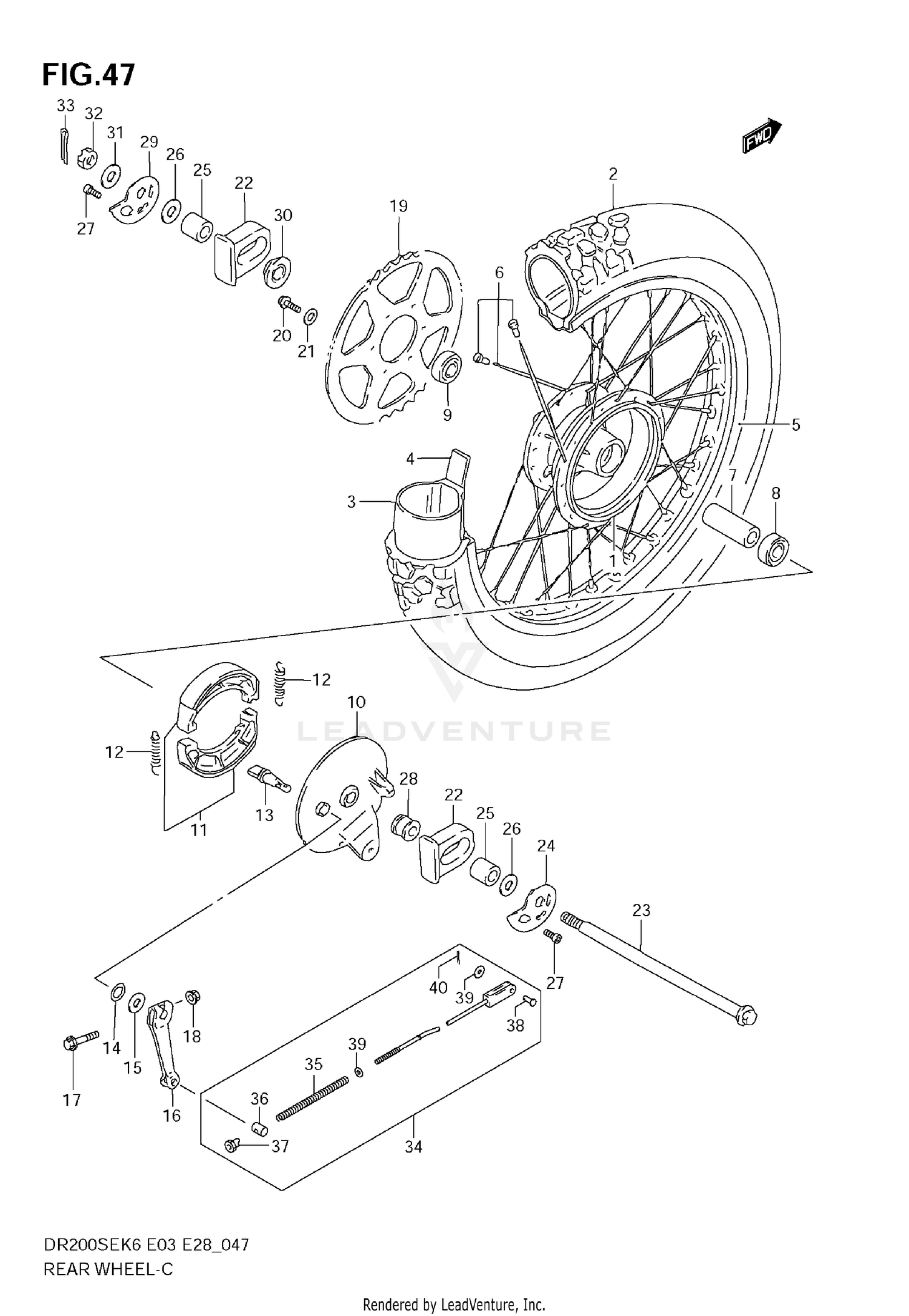

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,REAR WHEEL
64110-44A10
|
$457.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE,REAR (100/90-18M/C 56P)
65110-42AA0
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE ASSY,WHEEL INNER
65200-42AA0
Superseded by 65200-42AA1
|
$70.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
PROTECTOR, WHEEL INNER TUBE
65261-33030
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM,REAR WHEEL (18X2.15)
65311-42AA0
|
$445.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE ASSY,REAR WHEEL
65320-42AA0
|
$105.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (15.3X21.7X107.50)
09180-15013
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RH
08143-62027
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
08123-63027
Superseded by 08123-6302B
|
$27.69 | ||
|
Unavailable |
|||
|
#10
PANEL,REAR BRAKE ANCHOR
64210-44A00
|
$212.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHOE SET,BRAKE
54400-07870
|
$46.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09443-07001
Superseded by 09443-07025
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAM,BRAKE
54441-29305
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING (D:2.5,ID:13.8)
09280-14011
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (14.5X22X1.6)
09160-14055
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, REAR BRAKE CAM
64451-30501
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (L:40)
01550-0640B
|
$2.33 | ||
|
Unavailable |
|||
|
#18
NUT
08316-1006B
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SPROCKET,REAR (NT:45)
64511-42A01
|
$66.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (8X30)
09103-08048
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
09164-08020
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP,RR SWINGARM
61470-42A00
Superseded by 61470-42A01
|
$12.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE,REAR
64711-44A11
|
$52.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
ADJUSTER,CHAIN RH
61411-42A00
|
$13.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER,CHAIN ADJUSTER
61413-42A00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (15.5X30X3.20)
09160-15039
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT,CHAIN ADJUSTER
61431-42A10
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER,REAR AXLE,RH
64741-42A00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
ADJUSTER,CHAIN LH
61421-42A00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPACER,REAR AXLE,LH
64750-42A00
|
$13.83 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER (14.5X30X3.2)
09160-14062
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
08314-4014B
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
04111-3025A
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#34
ROD ASSY,REAR BRAKE
43300-42A02
|
$25.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING
09440-09004
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN
09209-13018
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
09150-06010
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PIN
09200-06013
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER
08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN
04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
