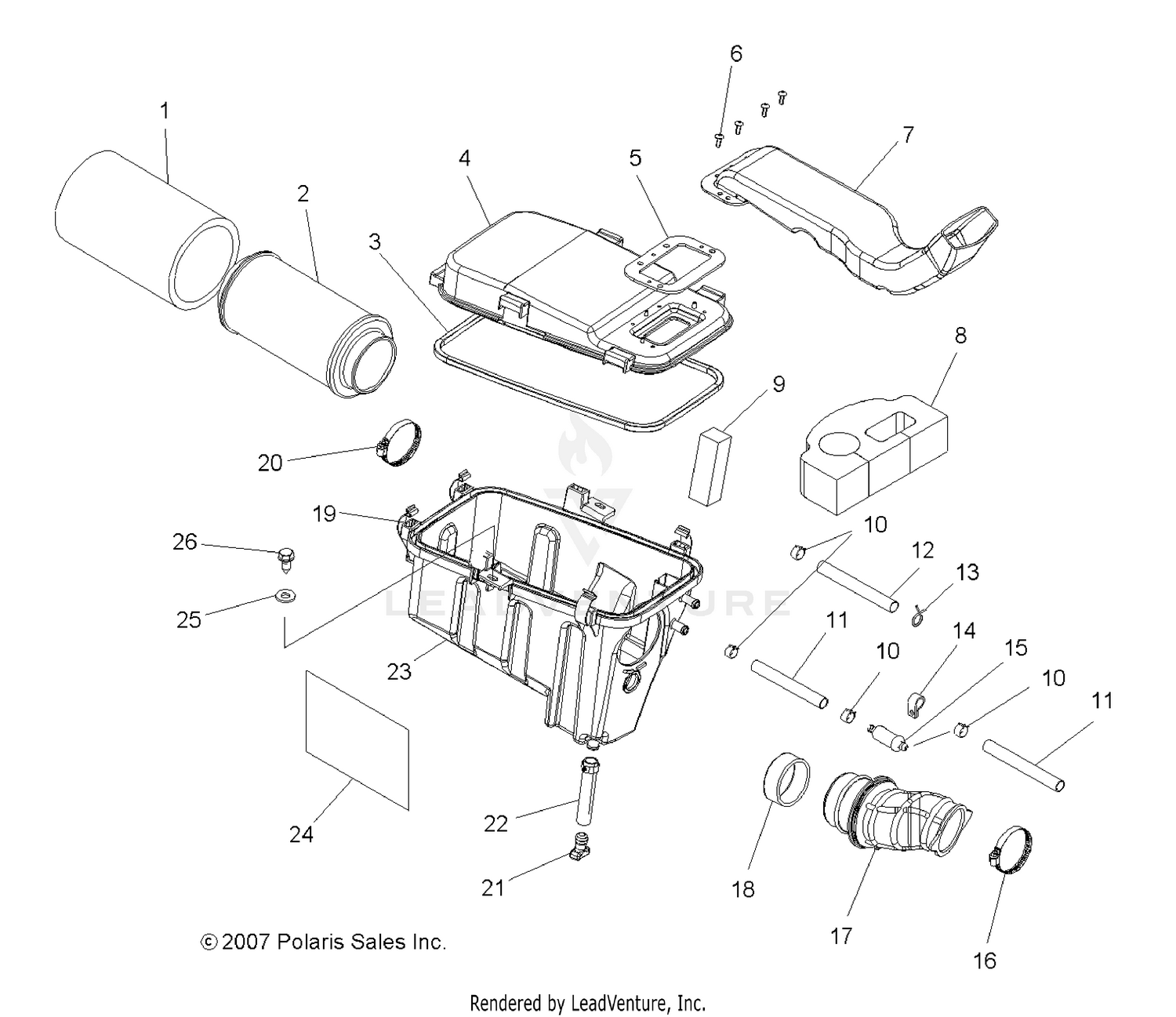

Engine, Air Intake System - A09tn50ax/az (49atvairbox08spx25) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Filter, Precleaner Sleeve
5811633
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER, AIR INTAKE
7080595
Superseded by 7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Air Box Cover
5812829
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Cover, Air Box
5436278
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket, Intake
5412748
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-#8X1/2,TR/PH,TYPE B-Y
7517317
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Duct, Air Inlet
5436957
Superseded by 5438031
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Seal, Foam
5812773
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Filter, Crankcase
5812910
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clamp, Hose
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Line, Breather
8450073-600
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hose, Breather
5413104
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clamp
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Clamp P
7080913
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Filter, Breather
2530029
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Clamp
7080413
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Boot, Carb
5412847
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Sleeve
5433847
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Clip, Air Box
5249292
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP-BAND,NARROW 60-80MM
7080707
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Plug, Trap
5435299
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Line, Fuel
8450059-150
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Box, Air
5436151
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Foil, Airbox
5812771
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Washer, Flat
7555859
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
