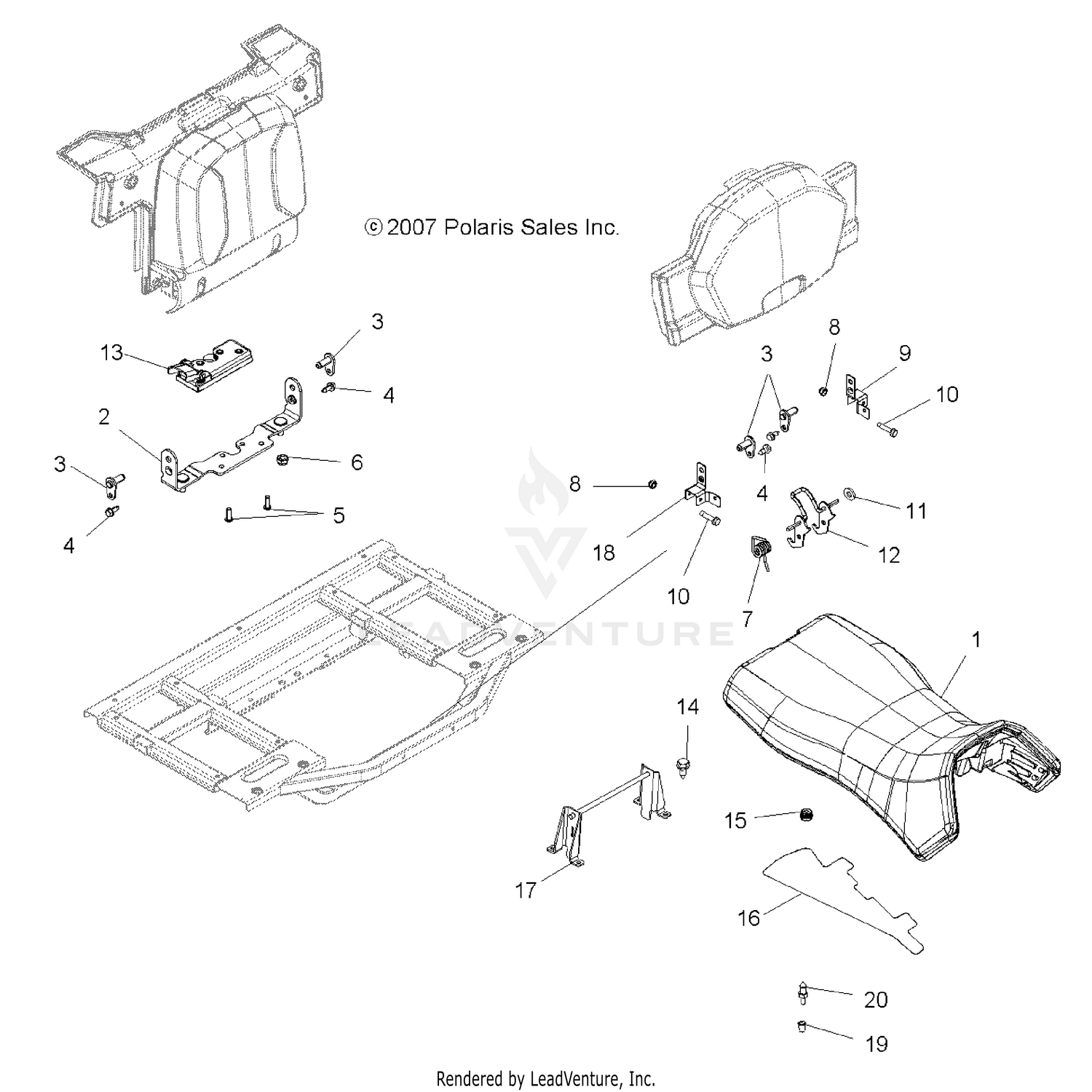

Body, Seat And Operator - A09tn50ax/az (49atvseat08spx25) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Seat, Operator, Black
2684133-070
Superseded by 2684917-070
|
$549.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Asm., Cover w/White Decal
2684134
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Pivot, Passenger Seat
1015414-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WELD-PIN,PIVOT
1015413
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Screw
7515177
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Spring
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Nut
7542122
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRACKET-PIVOT,SEAT,LH
5250563
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7512130
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spacer
7556091
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Rod, Passenger Seat, Black
1016335-067
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LATCH-SEAT,PASS,BACK
7081325
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7518239
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Grommet
5412994
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Foil, Seat Base
5813059
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Lockout, Passenger
1015355-067
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET-PIVOT,SEAT,RH
5250564
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Insert-1/4-20
7542143
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Pin, Seat Latch
5910306
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
