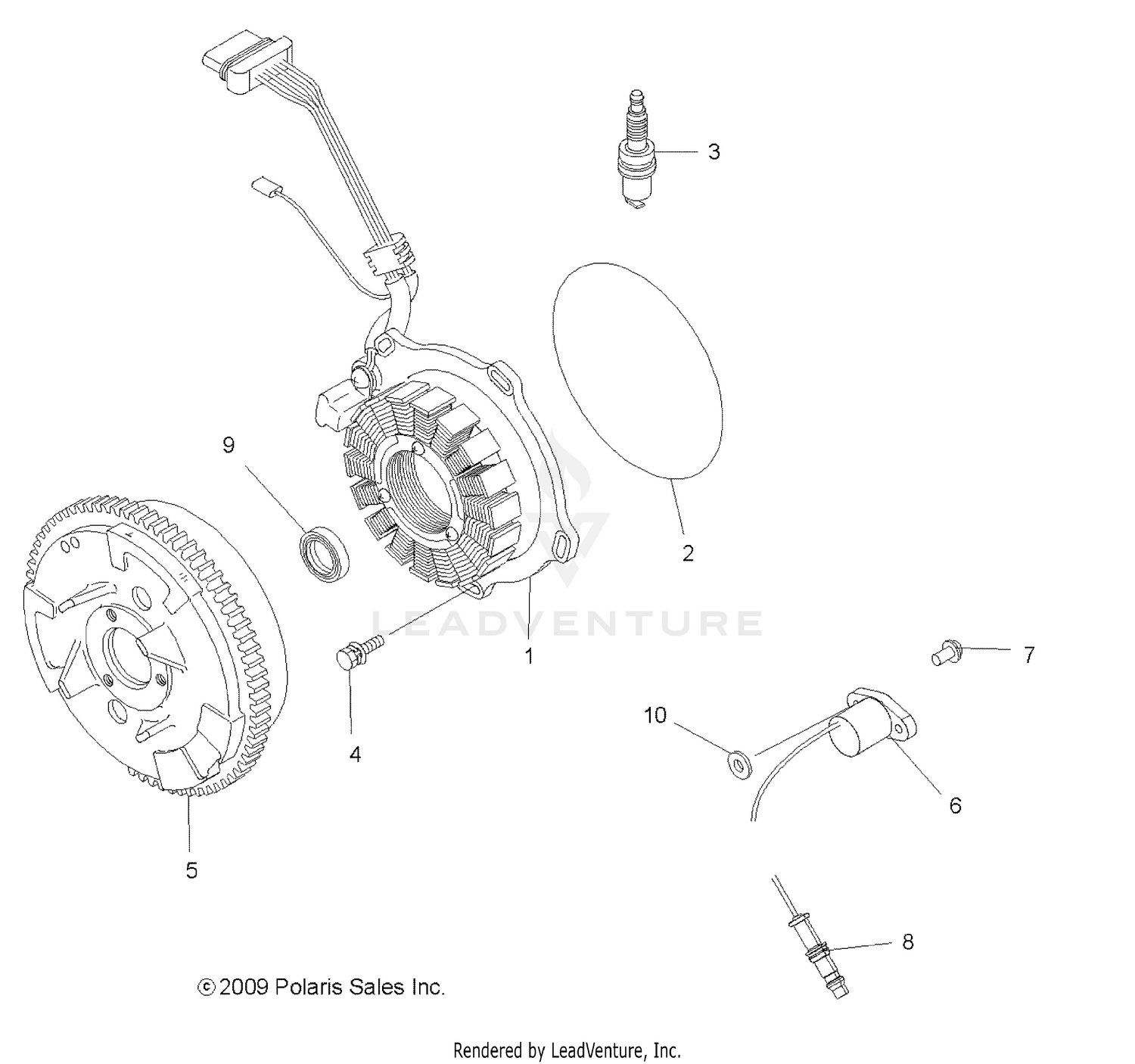

Electrical, Ignition System - A09tn50ax/az (49atvmagneto09sp500trg) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Magneto
3090081
|
|||
|
Unavailable |
|||
|
#1
Asm., Plate
3089959
|
$874.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-Ring
3084978
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Plug, Spark, NGK, BKR6E
3084997
Superseded by 3070172
|
$4.99 | ||
|
Unavailable |
|||
|
#4
Bolt and Washer
3081657
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Flywheel w/Ring Gear
3089905
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL-IGNITION,SINGLE,W/DIODE
4011834
Superseded by 4015072
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
7518196
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Wire, Spark Plug
4011692
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Seal, Oil
3084973
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Washer
7555746
Superseded by 7555904
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
