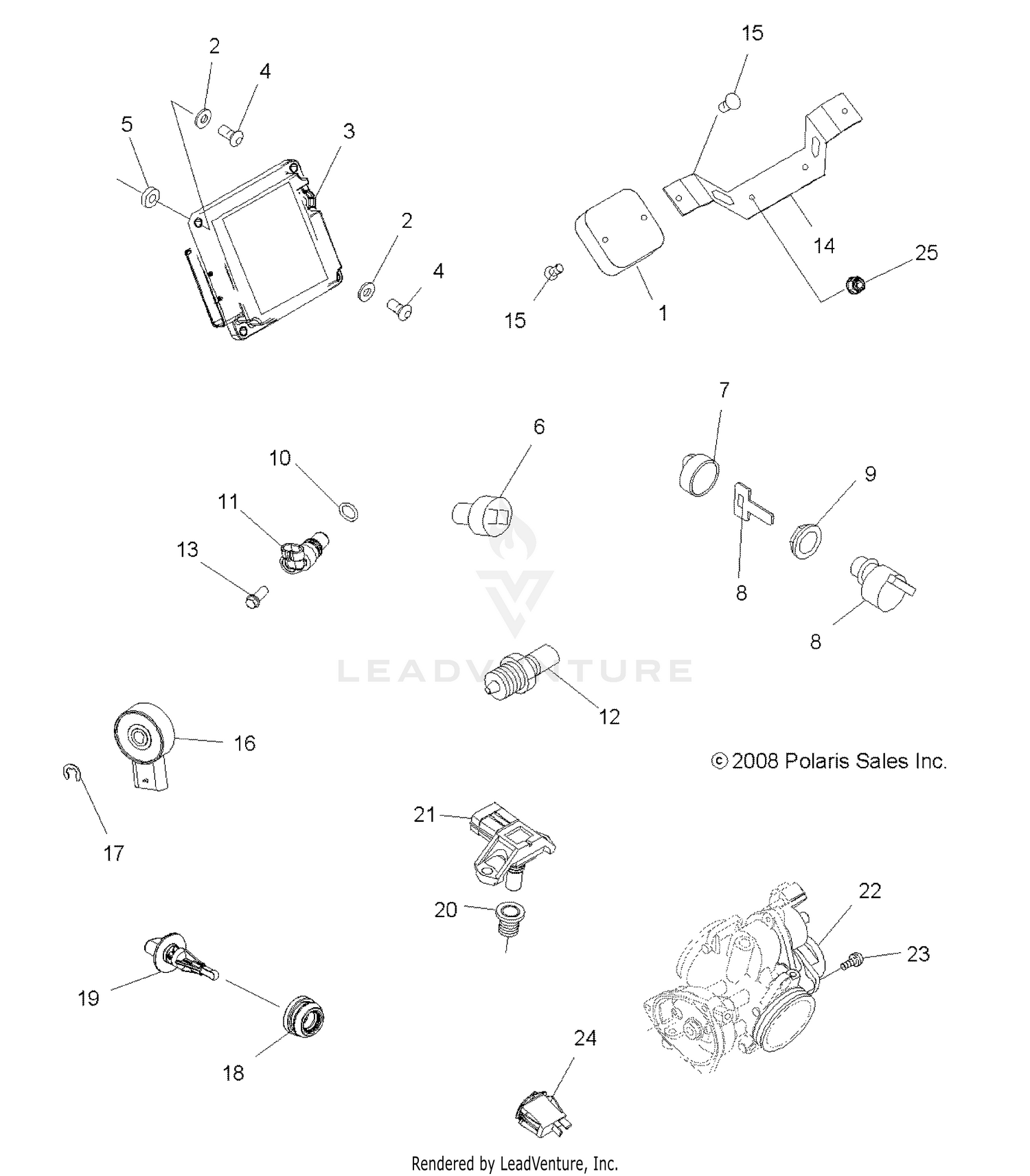

Electrical, Switches And Sensors And Ecm - A09tn50ax/az (49atvelect09spx25) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Regulator
4012384
|
$354.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer
7555746
Superseded by 7555904
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ECM, Service
4012443
|
$569.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Screw
7518552
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Nylon
7555932
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Switch
4110164
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY SWITCH KEY COVER
5433534
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Switch, Key, 3 Position
4012165
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLANK, KEY, SERIES 2000, 2100, 6700, 6800
4010278
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Blank, Key, Series 2200, 2300, 2700, 2800.
4010321
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT-IGNITION SWITCH,HOBBS
5433733
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
3234302
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR-SPEED,TRANS
4013908
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Sensor, Water Temperature
3089892
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
3234247
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bracket, Mount, Voltage Regulator
5248725
Superseded by 5253219
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bracket, Mount, Voltage Regulator
5253219
|
$12.99 | ||
|
Unavailable |
|||
|
#15
Screw
7512024
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH-ROTARY,6 PIN
3233835
Superseded by 3236115
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ring, Retaining
3233834
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Grommet, Air Temp Sensor
5436346
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Sensor, Air Temp
2410687
|
$189.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Grommet
3089902
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM-SENSOR W/O-RING
3089895
Superseded by 3089953
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Asm., Sensor
3140173
Superseded by 3131705
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
3131628
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Switch, Turf, On/Off
4011966
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Nut, Nylok
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
