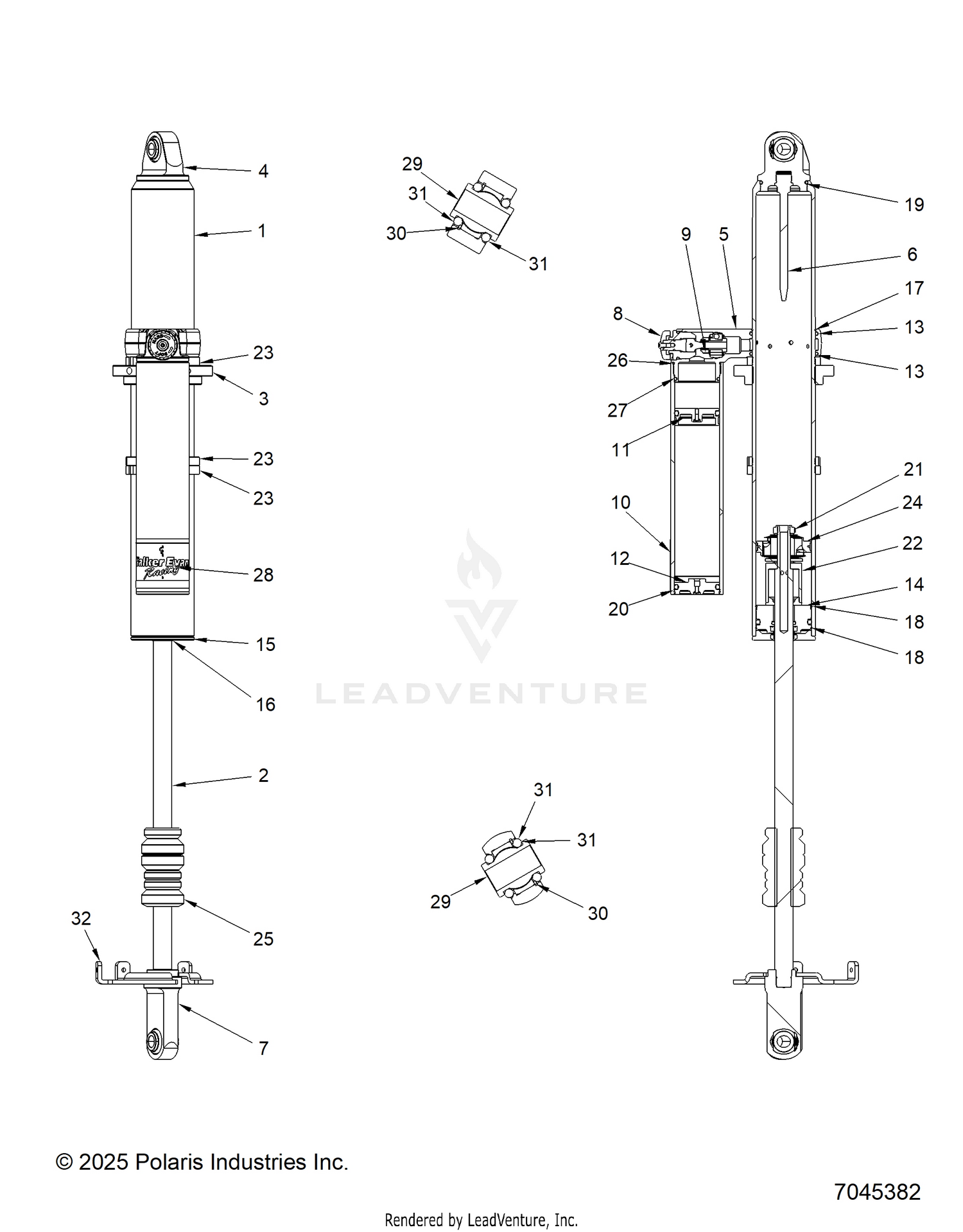

Suspension, Rear Shock Internal - Z24rmc2kah/bh (7045382) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SHOCK-REAR,G4 MP,LH
7045382
|
$1,744.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHOCK-REAR,G4 MP,RH
7045383
|
$1,744.99 | ||
|
Unavailable |
|||
|
#1
SHOCK BODY, 3.0 CO,IMPACT EXTRUDED 21.554L
-------
|
|||
|
Unavailable |
|||
|
#2
SHAFT, NEEDLE, .875, .625 STEM, 21.865L
-------
|
|||
|
Unavailable |
|||
|
#3
SPRING NUT, 3.0, 3.75 ID SPRING
-------
|
|||
|
Unavailable |
|||
|
#4
3.0 BODY LOOP, 1.187 BORE, BRNG STEP
1800975
|
$234.99 | ||
|
Unavailable |
|||
|
#5
BRIDGE, 3.0 FORGED
-------
|
|||
|
Unavailable |
|||
|
#6
NEEDLE-3/8,THREAD IN,NO SLOT
1801033
|
$189.99 | ||
|
Unavailable |
|||
|
#7
SHAFT LOOP, 1.187 BORE,BEARING STEP,ORIENTATION
-------
|
|||
|
Unavailable |
|||
|
#8
ASM. SS RETENTION NUT (GOLD)
1800857
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, CHECK ASSEMBLY
1800848
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RES BODY, 2.5" X 11", WIRE RING
1800979
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RES, PISTON 2.5IN ASM
1800752
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
2.5 END CAP WITH BUILT IN CHARGE PORT
1800960
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
2-234 O-RING (VITON)
1800980
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
3.0 SEAL HEAD, 7/8 SHAFT, PRESS IN, WIRE RING
1800981
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
3.0 WIPER CAP, PRESS IN, 7/8 SHAFT
1800983
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIPER 2.5 SH 0.875 SHAFT
1800641
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINING RING 3.0
1800984
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RETAINING RING 3.0
1800985
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING 2-226 (VITON)
1800988
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ID RETAINING RING, 2.5"
1800847
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLEXLOC, THIN, 5/8-18
1800970
|
$59.99 | ||
|
Unavailable |
|||
|
#22
CHECK VALVE, 2 PIECE,HI-FLOW .875 SHAFT X 2.005L, 2x .082 BLEED
-------
|
|||
|
Unavailable |
|||
|
#23
NUT-JAM,3.0",1830026
1800974
|
$189.99 | ||
|
Unavailable |
|||
|
#24
PISTON ASM
-------
|
|||
|
Unavailable |
|||
|
#25
3.70L BUMP STOP LG
1800993
|
$49.99 | ||
|
Unavailable |
|||
|
#26
O-RING 2-033
1800613
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING 2-225
1800500
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DECAL-SHOCK,7045382
-------
|
|||
|
Unavailable |
|||
|
#29
WER-2000131
-------
|
|||
|
Unavailable |
|||
|
#30
SNAP RING, COM-10,INVERTED
-------
|
|||
|
Unavailable |
|||
|
#31
O-RING 2-314
1800990
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RETAINER-SPRING,3.75",STAMPED
5270086
|
$54.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
