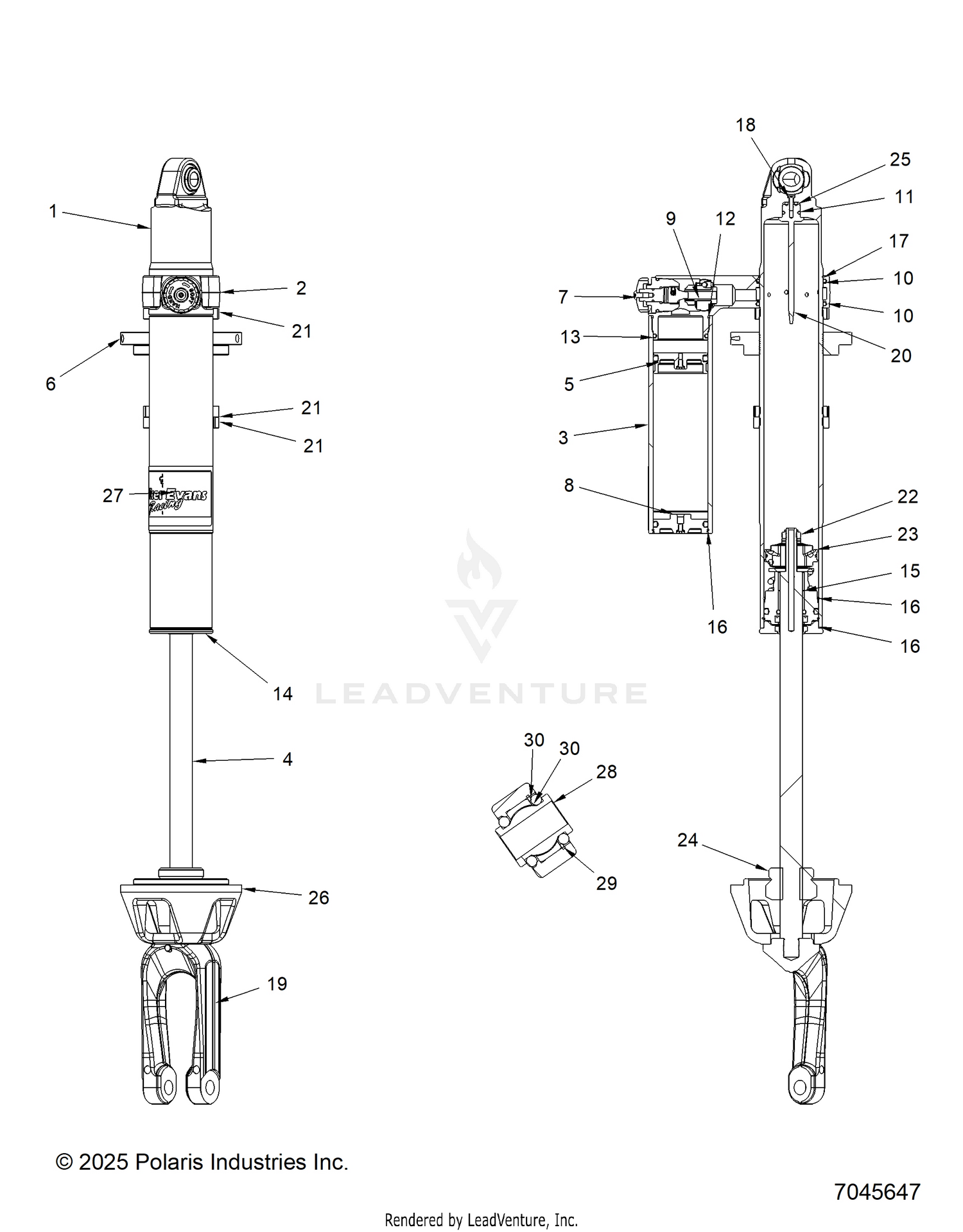

Suspension, Front Shock Internal - Z24rmc2kah/bh (7045647) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SHOCK-FRONT,G4 MP,LH
7045647
|
$1,579.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHOCK-FRONT,G4 MP,RH
7045648
|
$1,579.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOCK BODY - 2.5 IMPACT EXTRUDED
-------
|
|||
|
Unavailable |
|||
|
#2
BRIDGE, 2.5, WER ADJUSTER,FORGED, EXT
-------
|
|||
|
Unavailable |
|||
|
#3
2.5IN 8.5L PB RES CAN WR (HARD CLEAR)
1800837
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT - NEEDLE .875 X 16.742L
-------
|
|||
|
Unavailable |
|||
|
#5
RES, PISTON 2.5IN ASM
1800752
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING NUT, 2.5, 3.5 ID SPRING
-------
|
|||
|
Unavailable |
|||
|
#7
ASM. SS RETENTION NUT (GOLD)
1800857
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
2.5 END CAP WITH BUILT IN CHARGE PORT
1800960
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, CHECK ASSEMBLY
1800848
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING 2-230
1800497
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING 2-112
1800095
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING 2-033
1800613
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING 2-225
1800500
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WIPER CAP ASM. 2.5 PRESS FIT
1800962
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL HEAD ASM. 2.5 PRESS IN, .875 SHAFT, NEGATIVE SPRING
1800963
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
ID RETAINING RING, 2.5"
1800847
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
2.48 X 0.0625 WIRE RING
1800846
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
#8-32 X .500 LOW HEAD SCREW
1800843
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT LOOP, CLEVIS, .625 THD, 5.827L
5143792
|
$89.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE, PRESS IN, .400 X 4.0L
-------
|
|||
|
Unavailable |
|||
|
#21
2.5IN CROSSOVER RING/ JAM NUT
1800842
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-FLEX-TOP LOCK 7/16
1801000
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON ASM
-------
|
|||
|
Unavailable |
|||
|
#24
1.25 BUMP STOP LG
1800593
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING -202
1800887
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RETAINER-SPRING,CAST
5634675
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DECAL-SHOCK,7045647
-------
|
|||
|
Unavailable |
|||
|
#28
WER-2000131
-------
|
|||
|
Unavailable |
|||
|
#29
SNAP RING, COM-10, INVERTED
-------
|
|||
|
Unavailable |
|||
|
#30
O-RING 2-314
1800990
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
