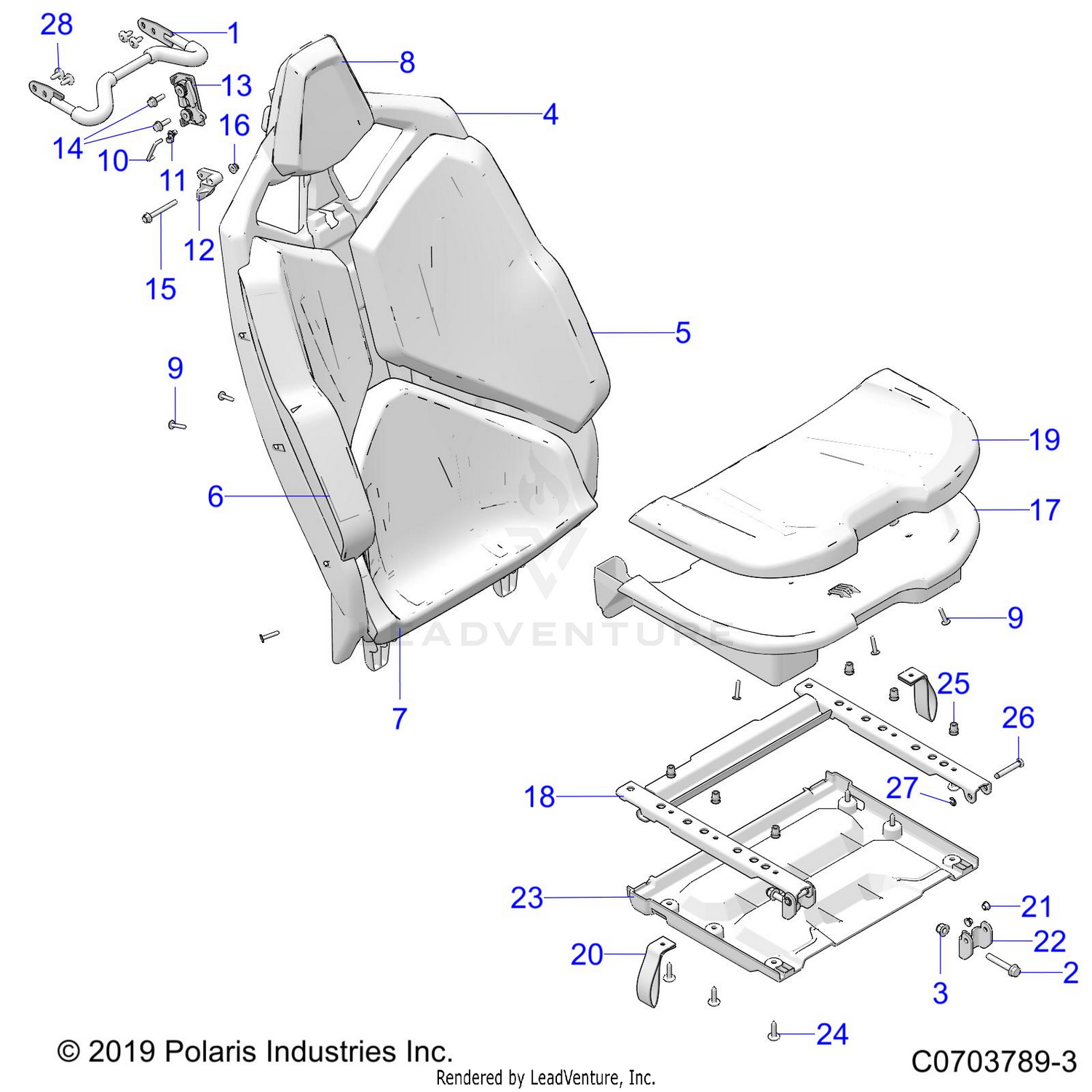

Body, Seat Asm.,rear - Z24rmc2kah/bh (c0703789-3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-REAR SEAT STRIKER
2638068
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-M8X1.25X50 HX/FL-Y
7517793
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-SEAT,BACKBLK/PBLU,GREY ST
2690345
|
$709.99 | ||
|
Unavailable |
|||
|
#5
ASM-BOLSTER,LH,BLK/PBLUE,GR ST
2690337
|
$94.99 | ||
|
Unavailable |
|||
|
#6
ASM-BOLSTER,RH,BLK/PBLUE,GR ST
2690338
|
$94.99 | ||
|
Unavailable |
|||
|
#7
ASM-LOW BACK,BLACK,C-GRAY ST
2690346
|
$109.99 | ||
|
Unavailable |
|||
|
#8
ASM-HEADREST,BLK
2691819
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
|
$2.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ROD-REAR SEAT,LATCH
5341855
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP-DOOR LATCH
5454637
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
HANDLE-LATCH,REAR SEAT,BLK
5456202-070
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-LATCH,RTRY,2 STAGE,LH
7082459
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-HXFL-M6X1.0X20 8.8 ZOD NYL
7518613
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCR-HXFL-M6X1.0X55 8.8 ZOD
7519171
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ASM-SEAT BASE,FLIP,BLK/PBL,GST
2638169
|
$244.99 | ||
|
Unavailable |
|||
|
#17
ASM-SEAT,BOTTOM,BLK/PBLUE,GST
2690347
|
$239.99 | ||
|
Unavailable |
|||
|
#18
WELD-SEAT FRAME,REAR,FLIP,BLK
1024845-458
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ASM-BOTTOM,BLK/PBLUE,GREY ST
2690348
|
$119.99 | ||
|
Unavailable |
|||
|
#20
STRAP-SEAT
2689264
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING-DOOR PIVOT
5266311
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRKT-SEAT FRAME,HINGE,REAR
5267628
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PANEL-UNDERSEAT,REAR,FLIP
5456052
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT-RIVNUT,M6X1.00
7547789
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN-DOOR HINGE
7662356
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
E-CLIP,M6, DIN 6799
7710466
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCR-M6X1X16 TR/TX-M
7518936
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
