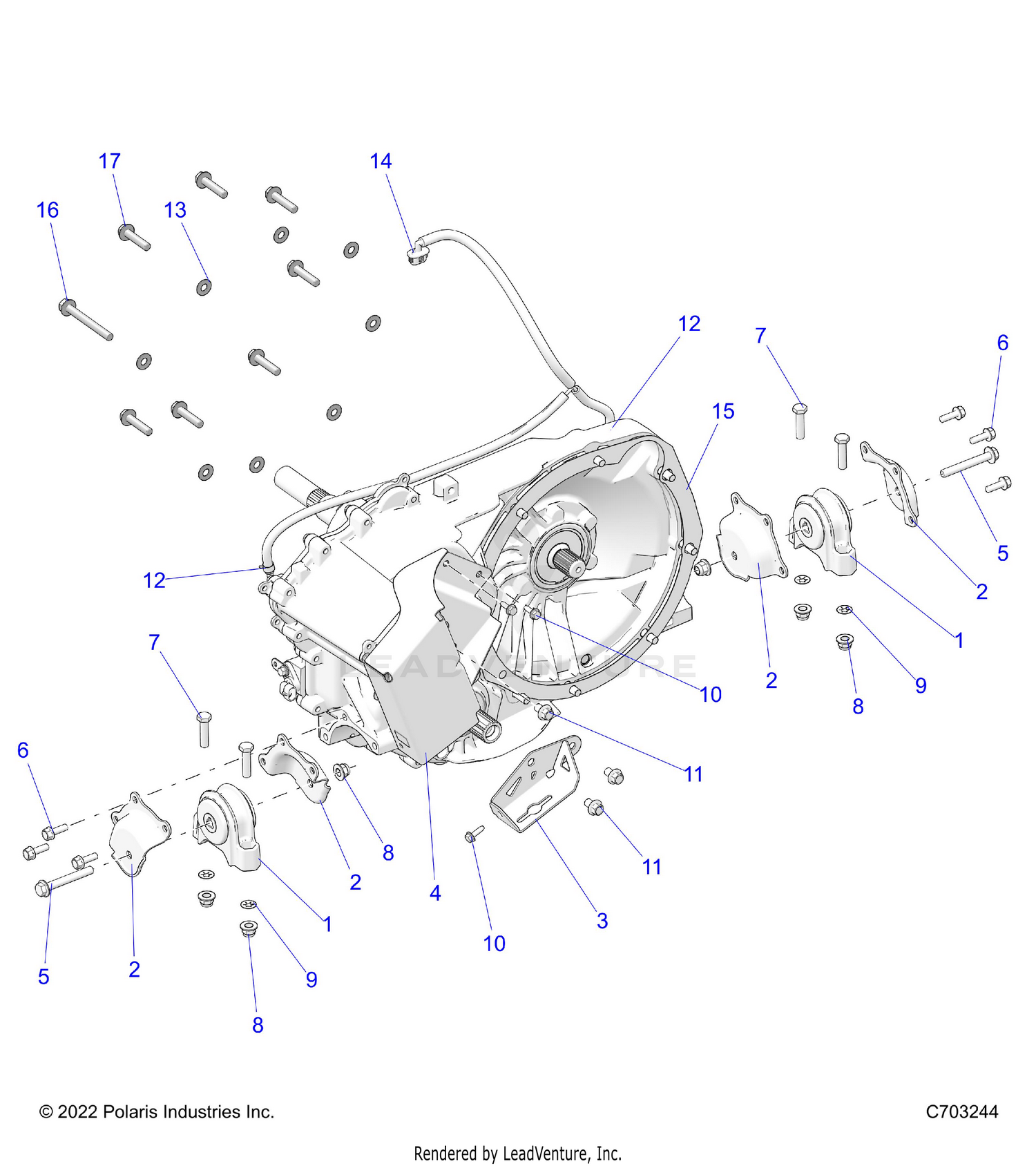

Drive Train, Gearcase, Main, Mounting - Z24rmc2kah/bh (c703244) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOUNT-ISOLATOR,G4
1337135
|
$104.99 | ||
|
Unavailable |
|||
|
#2
BRKT-MOTOR MOUNT,BLK
5267287-458
|
$54.99 | ||
|
Unavailable |
|||
|
#3
BRKT-TRANS,CABLE MNT,BLK
5268251-458
|
$74.99 | ||
|
Unavailable |
|||
|
#4
SHIELD-SENSOR, GEAR POSITION
5268362
|
$64.99 | ||
|
Unavailable |
|||
|
#5
SCR-HXFL-M10X1.5X75 8.8 ZY3
7518473
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCR-HEXFLGHD,M8 X 25,0600086(10)
7517839
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCR-HEXHD,M10X40,0600088
7517993
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HXFL-M10X1.5 8 ZTB NYL
7548029
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER-BOLT,PUSHNUT,3/8"
7670146
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCR-HXFL-M10X1.5X16 8.8 ZPB
7517951
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP-HOSE, 17/32, GREEN
7081432
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER-10.5X22.0X1.6 SPC
7556155
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FITTING-VENT LINE,90
5453464
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET-BELL HOUSING
3610343
|
$59.99 | ||
|
Unavailable |
|||
|
#16
SCR-HXFL-M10X1.5X90 10.9 ZPB
7519172
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCR-HXFL-M10X1.5X45 10.9 RIE
7519906
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
