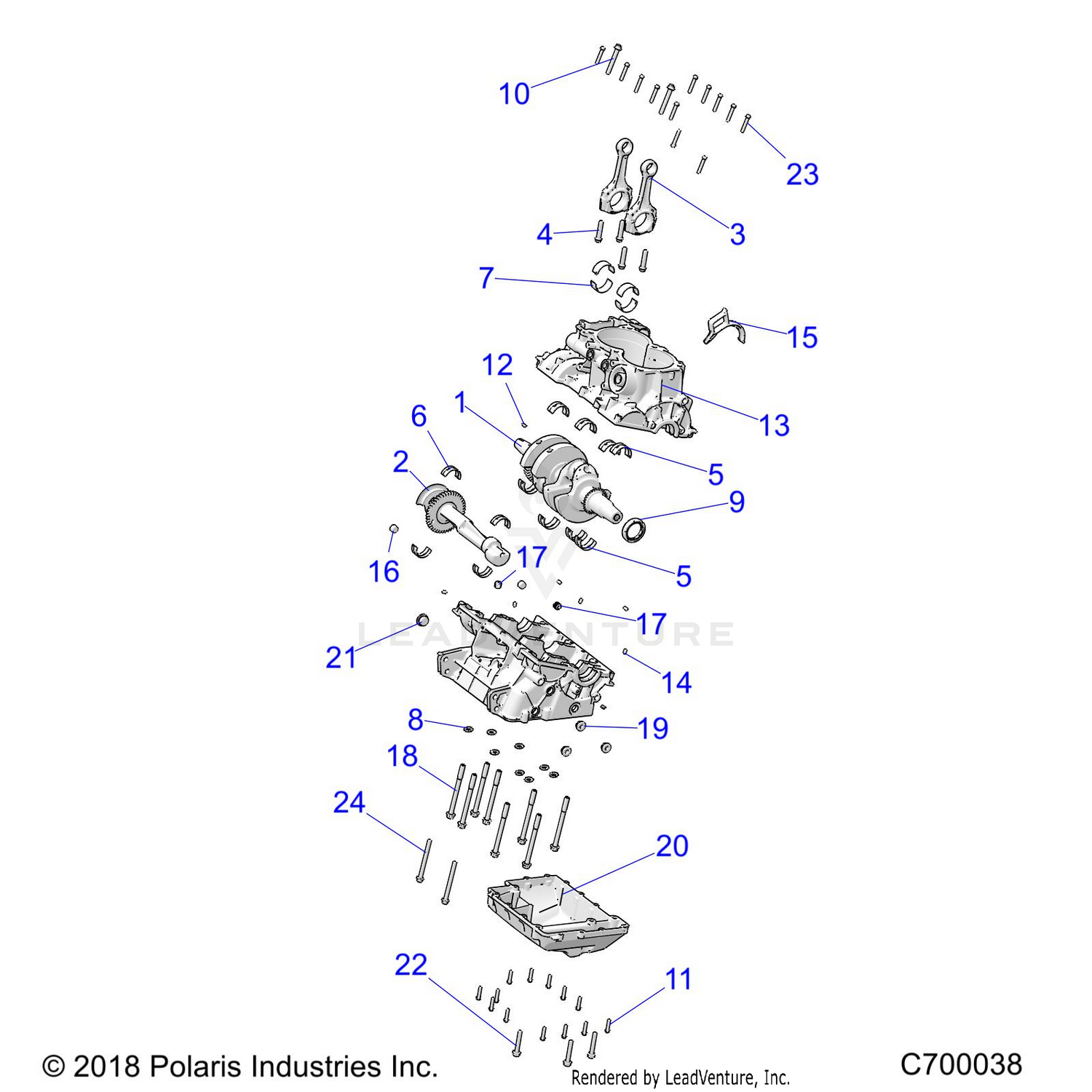

Engine, Crankcase And Crankshaft - R19rse99n1 (c700038) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-CRANKSHAFT,MACH
1204832
Superseded by 3023700
|
$1,259.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-BALANCE SHAFT
1204835
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-CONNECTING ROD
3023077C
Superseded by 3023077
|
$184.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SCR-ROD,MJ9X1X40-4H6H,12.9
7520378
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, MAIN, WHITE
3514662-001
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING-MAIN,G-90,41MM,BLU
3514662-002
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING-MAIN,G-90,41MM,GRN
3514662-003
|
$11.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING-MAIN,G-90,41MM,YLW
3514662-004
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING-MAIN,G-90,41MM,RED
3514662-005
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING-BAL SHAFT,38X41X17.5
3514756
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CONNECTING ROD, WHITE
3514663-001
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CONNECTING ROD, BLUE
3514663-002
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CONNECTING ROD, GREEN
3514663-003
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CONNECTING ROD, YELLOW
3514663-004
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
-------
|
|||
|
Unavailable |
|||
|
#9
SEAL-CRANKSHAFT
3610284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
7519186
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY, WOODRUFF
-------
|
|||
|
Unavailable |
|||
|
#13
K-CRANKCASE
2207831
|
$1,334.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN-DOWEL,M6X10
5132835
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIVERTER, OIL DRAIN
-------
|
|||
|
Unavailable |
|||
|
#16
PLUG
7052413
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLUG
7518835
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCR-HXFL M10X1.25X115MM 10.9
7519141
Superseded by 7520979
|
$13.29 | ||
|
Unavailable |
|||
|
#19
PLUG-HEX SCKT,W/O-RING,M16X1.5
7052642
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, SUMP
5137873
|
$108.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG-HEX SCKT,W/O-RING,M20X1.5
7052643
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
7517793
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
7518578
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
7519154
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
