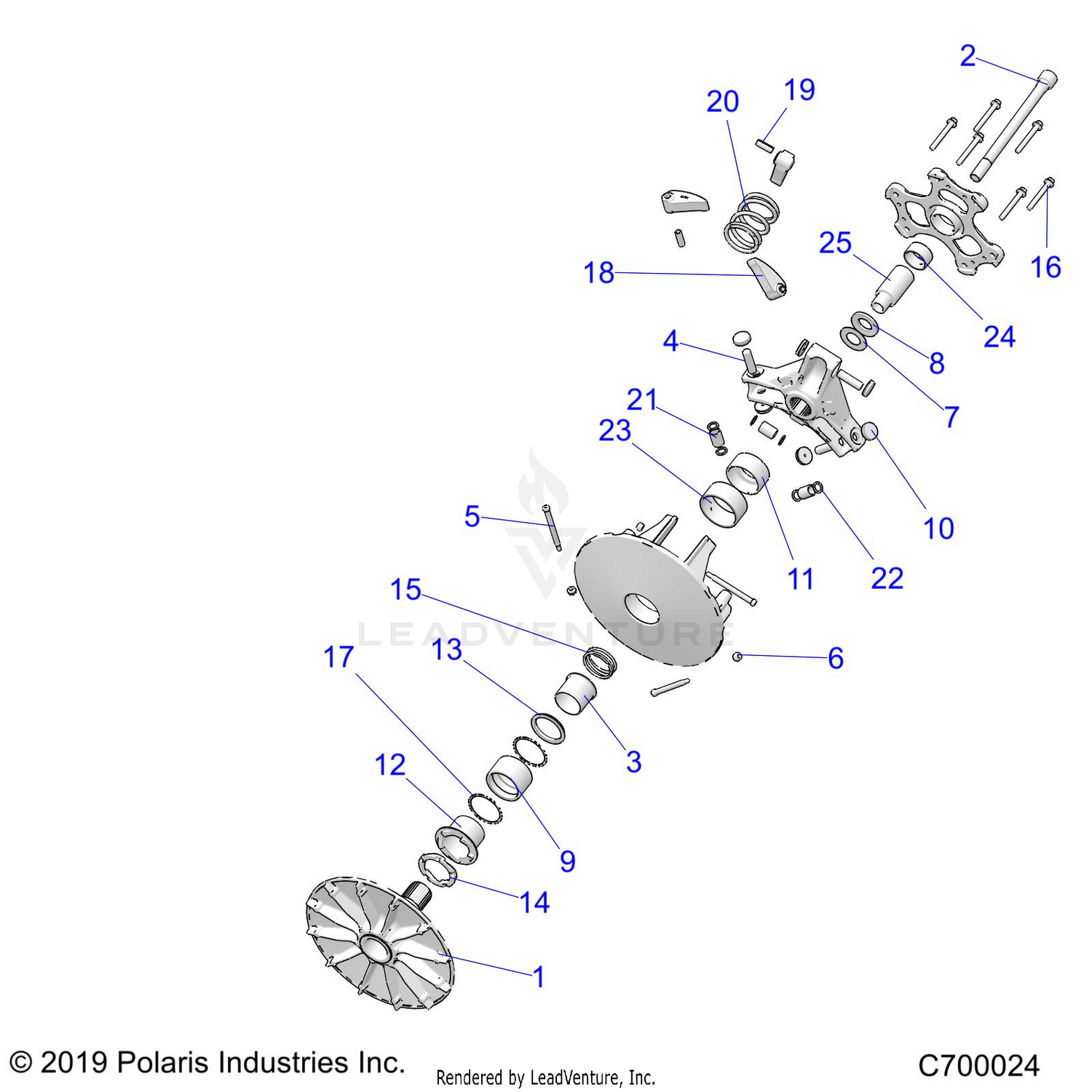

Drive Train, Primary Clutch - R19rse99n1 (c700024) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
ASM-DRIVE CLUTCH,BASIC,P90X
1323397
Superseded by 1323698
|
$639.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM-SHEAVE,STAT,P90X
5140724
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-SH-M14X1.5X180 10.9 SPC
7520526
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-SLEEVE,36MM
3515009
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN-SPIDER
5140978
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT-SHIFT WEIGHT,BUSHED
7520585
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-10-24-FLEX LOC-Z
7541906
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WSHR-20.5X38.0X0.75 ZY3
7557017
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WSHR-BELLE,21X37.5X3.8,SPC
7557018
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-CLUTCH,ONEWAY,50MM,30RLRV
1523288
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUTTON-CLUTCH,22MM
5453433
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER-CLUTCH,P90X
5140729
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLEEVE-FLANGE,EBS,15DEG,QPQ
5142798
Superseded by 5142116
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER-FLANGE
5141803
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
HELIX,DRIVE,P90X,15DEG
5454048
Superseded by 5456000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING-ONEWAY,EBS
7044697
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCR-M6X1.0X50.0 HX/FL-Y/D
7517932
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER-CLUTCH,P90X
7556984
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM-WEIGHT-SHIFT,32-114
1323565
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSHING-WEIGHT,1/4X7/8,DU
5453843
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING-CLUTCH,103-165
7045110
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM-SPIDER ROLLER,P90X
1323717
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER-CLUTCH,SPIDER ROLLER
5453844
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING-MOVABLE,50MM
3514984
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSHING-COVER,38.1MM
3514983
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
POST-CLUTCH,OUTER
5140976
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
