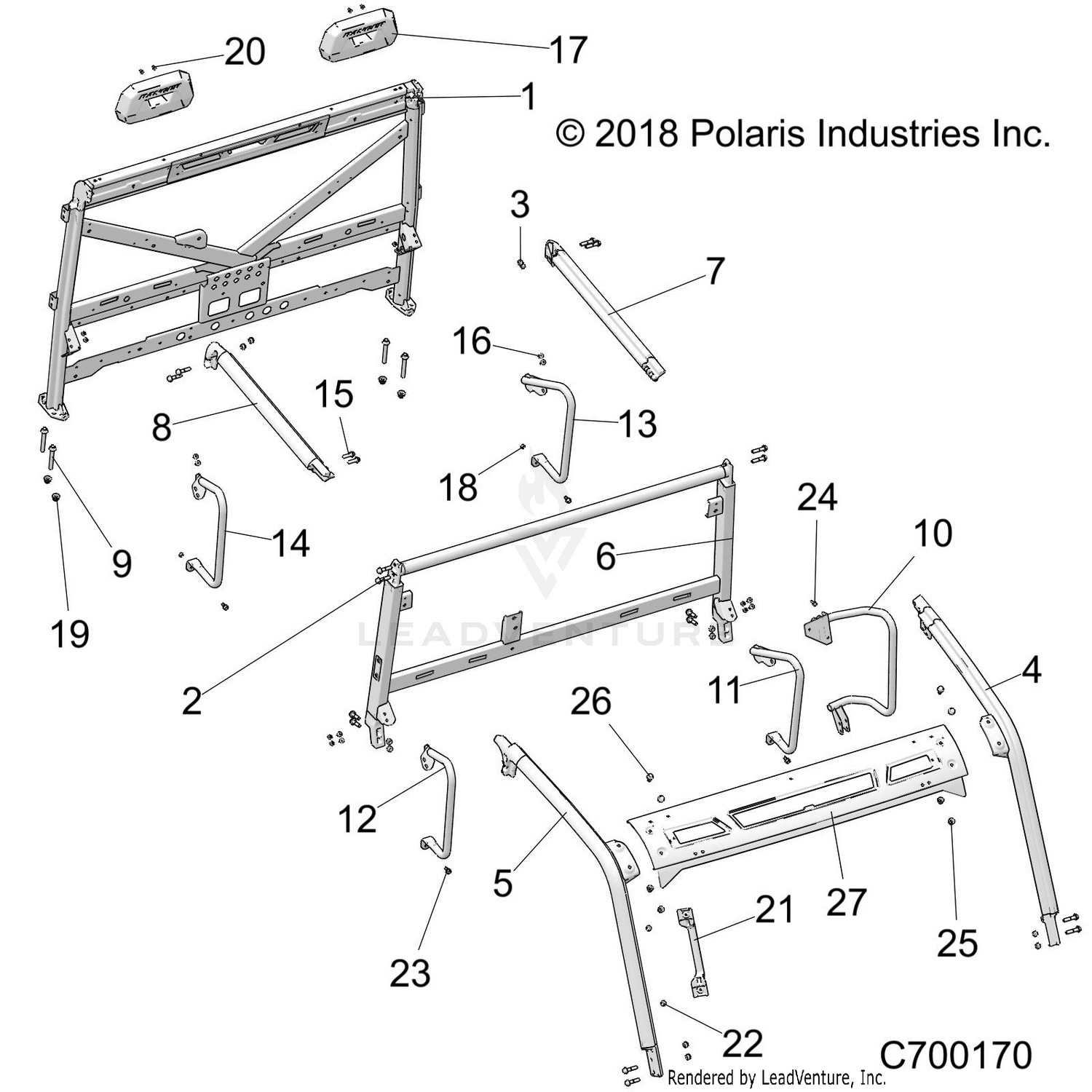

Chassis, Cab Frame - R19rse99n1 (c700170) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WELD-CAB FRAME,REAR,M.BLK
1022909-458
|
$1,274.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCR-HXFL-M10X1.5X45 10.9 RIE
7519906
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-HEX-M10X1.5 10 ZB3 NYL
7547746
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WELD-CAB FRAME,FRT,LH,BLK
1023336-458
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WELD-CAB FRAME,FRT,RH,BLK
1023337-458
|
$404.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WELD-CAB FRAME,CTR,M.BLK
1023318-458
|
$414.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WELD-CAB FRAME,REAR,LH,BLK
1023338-458
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WELD-CAB FRAME,REAR,RH,BLK
1023339-458
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCR-HXFL-M12X1.75X90 10.9 ZPC
7518705
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WELD-BOLSTER,SEAT,M.BLK
-------
|
|||
|
Unavailable |
|||
|
#11
WELD-BOLSTER,FRONT,LH,M.BLK
1023411-458
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WELD-BOLSTER,FRONT,RH,M.BLK
1023412-458
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WELD-BOLSTER,LH, M.BLK
1023165-458
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WELD-BOLSTER,RH, M.BLK
1023166-458
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-M10X1.50X35 HX/FL-Y/D
7518334
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TXTH-M6X1.0X25 ZFB
7519650
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HEADREST-BLK
5439110-070
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT-HEX-M8X1.25 10 P&O
7547080
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HXFL M12X1.75 8 ZOD NYL
7547441
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
HANDLE-GRAB,ROPS,BLK
5450844-070
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-HXFL-M8X1.25X20 8.8 ZOD P3
7519133
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT-HXFL-M10X1.5 8 ZB3 NYL
7520117
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCR-HXFL-M10X1.5X20 10.9 RIE P
7519905
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
K-PLATE WSHLD MNT, UPR, RGR XP EU
2207607
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
