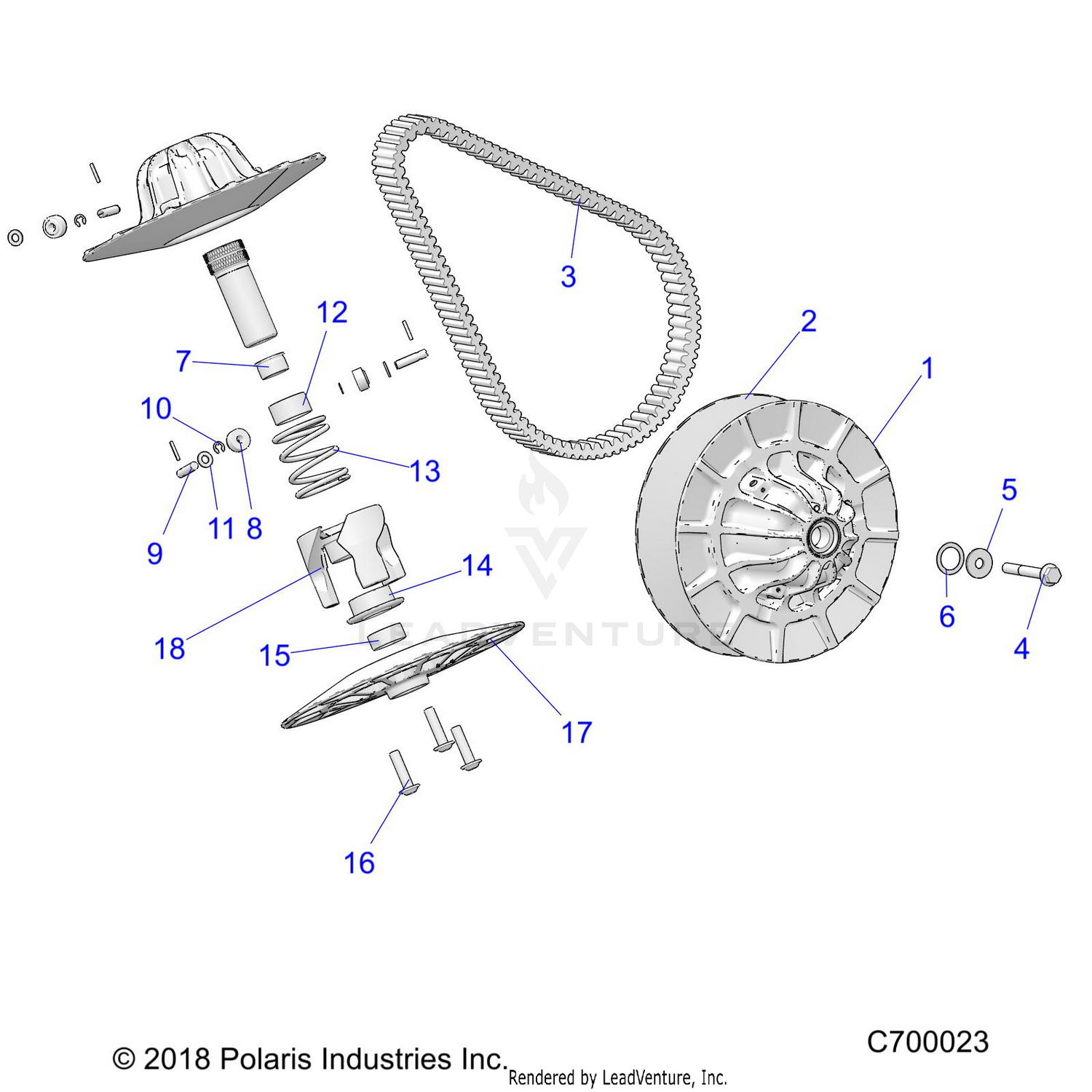

Drive Train, Secondary Clutch - R19rse99n1 (c700023) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-DRIVEN,STATIONARY,P90X
1323450
|
$509.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-MOVABLE SHEAVE,CREW
1323564
|
$329.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BELT-DRIVE
3211186
|
$199.99 | ||
|
Unavailable |
|||
|
#4
SCR-HXFL-M10X1.25X80 8.8 ZOD
7519363
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-FLAT M10X30X2.5 HARDEN
7556698
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM-RING,23.25X32.25X0.5
7557060
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING-P90X,29X22X17
5141303
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROLLER-8X22X11.25,PAI4203
5454447
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN-DRIVEN,ROLLER,8MM
5141086
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
E-CLIP,M6, DIN 6799
7710466
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WSHR-8.4X16X1.6ZY3 HARD
7557065
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING-DU,35X20
3514903
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING,DRIVEN
7044761
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUP-DRIVEN SPRING,P90X
5633759
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING,DU,P90X
3515007
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCR-TXFLBH-M10X1.25X40 10.9SPC
7520698
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ASM-MOVEABLE SHEAVE
1323455
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
ASM-HELIX,MACH,36-48BA67
1323566
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
