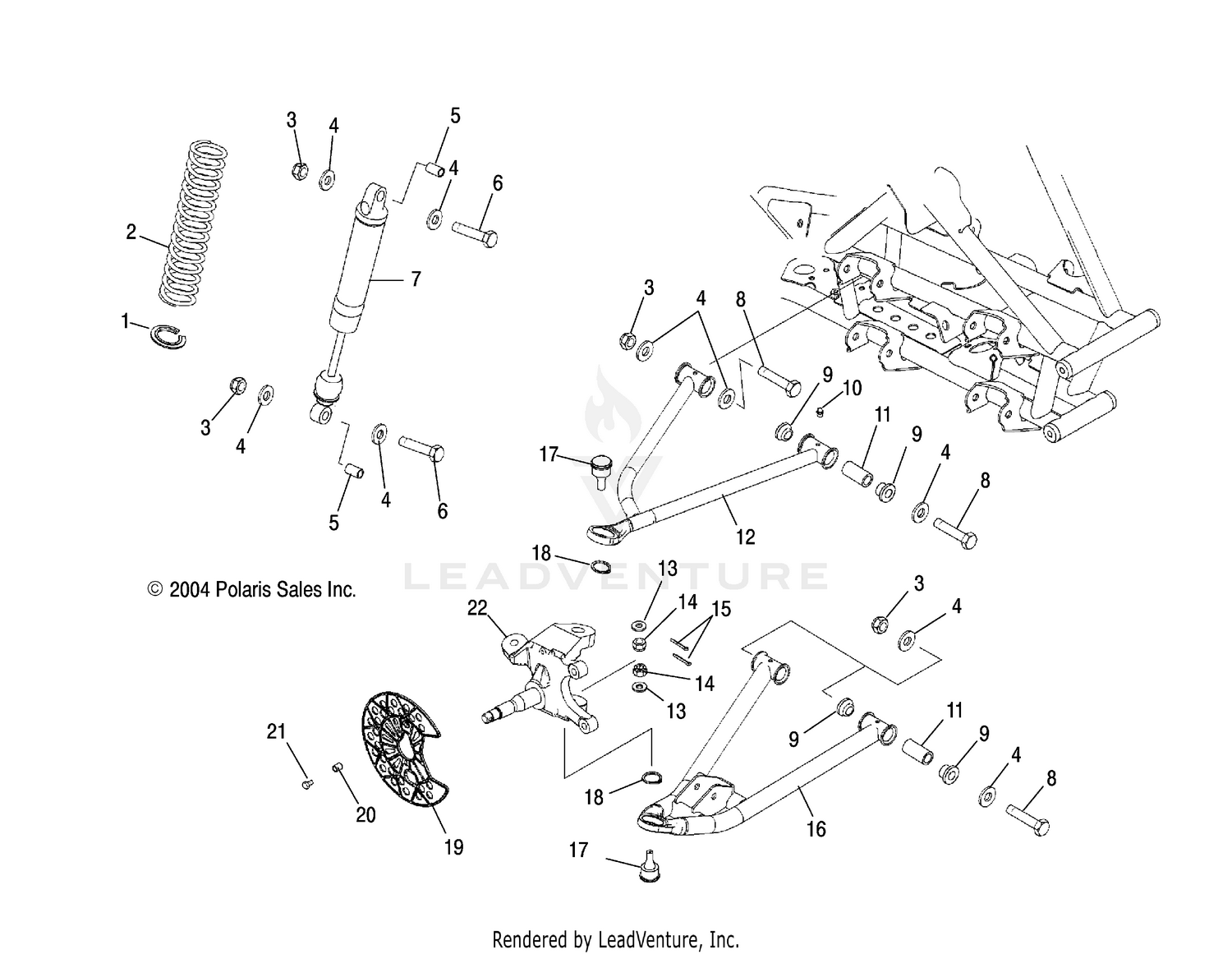

Front Suspension - A05gj50aa/ab/ac (4995119511b04) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RETAINER,SPRING,SLOTTED
5630580
Superseded by 5020618
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Spring, Compression, Red
7043092-293
|
$48.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
Spring, Compression, Cosmic Sunburst
7043092-446
|
|||
|
Available to order. Add to View Price |
|||
|
#2
Spring, Compression, Red
7043137-293
|
|||
|
Unavailable |
|||
|
#2
Spring, Compression, Cosmic Sunburst
7043137-446
|
|||
|
Unavailable |
|||
|
#3
Nut, Nylok
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer, Flat
7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Sleeve
5334149
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7515415
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SHOCK, IFP, FRONT
-------
|
|||
|
Unavailable |
|||
|
#8
Screw
7515406
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bushing, A-Arm
5434575
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Fitting, Lubrication
7080433
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Shaft, A-Arm
5133406
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
A-Arm, Upper, LH, Silver
1014612-385
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
A-Arm, Upper, RH, Silver
1014613-385
|
|||
|
Available to order. Add to View Price |
|||
|
#13
WASHER(10)
7555928
Superseded by 7555801
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut, Castle
7542523
|
|||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Pin, Cotter
7661205
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
A-Arm, Lower, LH, Silver
1013799-385
|
$304.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
A-Arm, Lower, RH, Silver
1013801-385
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Joint, Ball
7081190
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Ring, Retainer
7710533
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Guard, Disk, Inner
5435727
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Screw
5334653
Superseded by 7518441
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screw
7518426
|
|||
|
Unavailable |
|||
|
#21
Screw
7518441
|
$6.99 | ||
|
Unavailable |
|||
|
#22
Asm., Knuckle, Steering, LH
1822643
|
$229.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Asm., Knuckle, Steering, RH
1822644
|
|||
|
Available to order. Add to View Price |
|||
