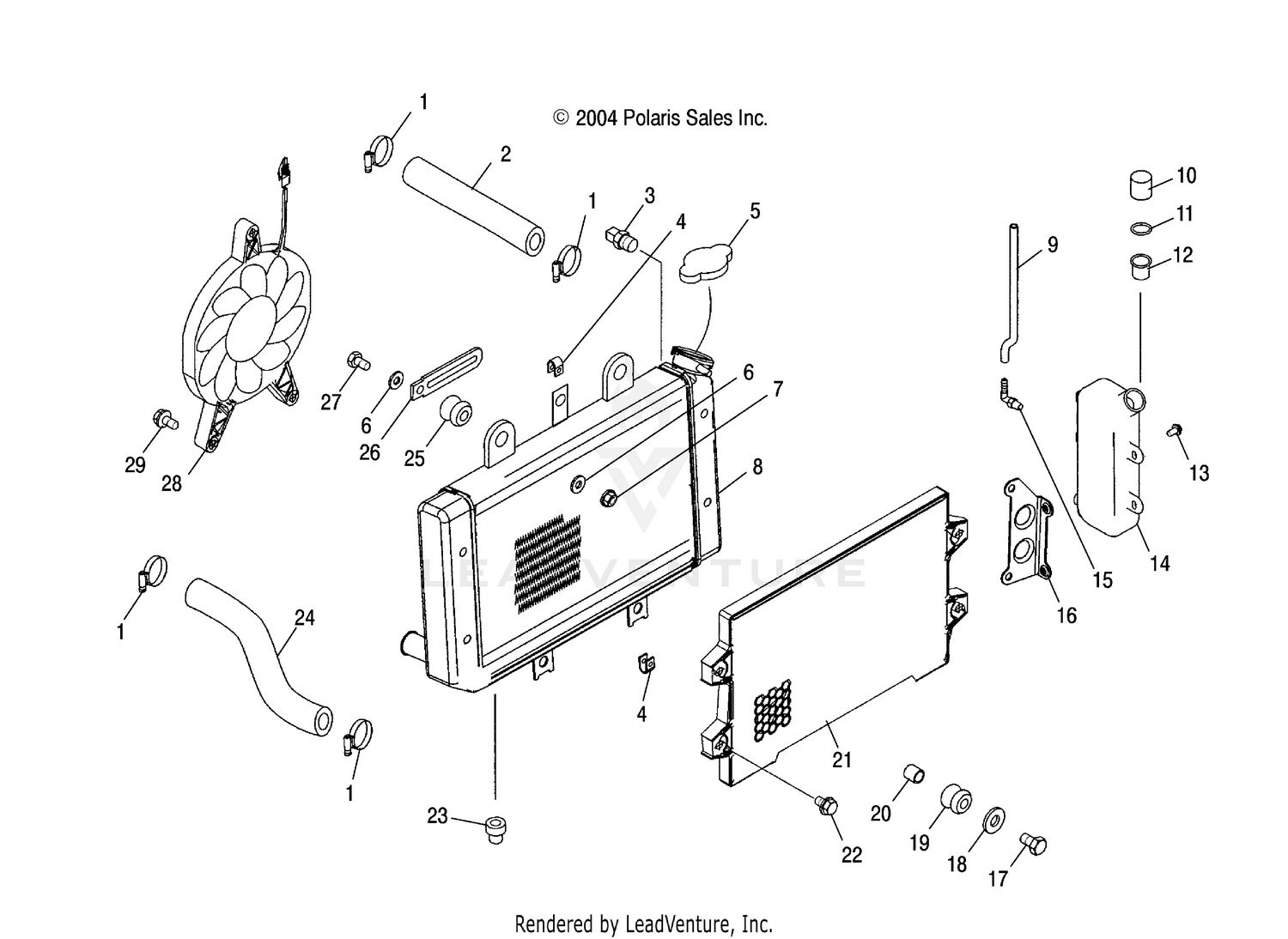

Cooling - A05gj50aa/ab/ac (4995119511a11) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
7080614
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hose, Water
8450050-28
|
|||
|
Unavailable |
|||
|
#3
Sensor, Thermal Harness
4010808
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
U-Clip
7547197
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cap, Pressure
1240093
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Washer, Flat
7558301
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Nut, Nylok
7542122
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Radiator
1240130
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Line, Fuel
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Screw
7512084
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Tank, Surge
5434856
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Fitting
7052065
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Bracket, Surge Tank
5247340
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
Screw
7517510
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Washer, Flat
7558301
|
$1.49 | ||
|
Unavailable |
|||
|
#19
Grommet
5410437
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Spacer
5333796
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Screen, Radiator
5435881
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw w/Washer
7547220
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Hose, Radiator, Formed
5412678
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Asm., Grommet and Insert
5411975
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Retainer
7080654
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bolt
7512163
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Asm., Fan and Motor
2520272
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bolt
7517975
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
