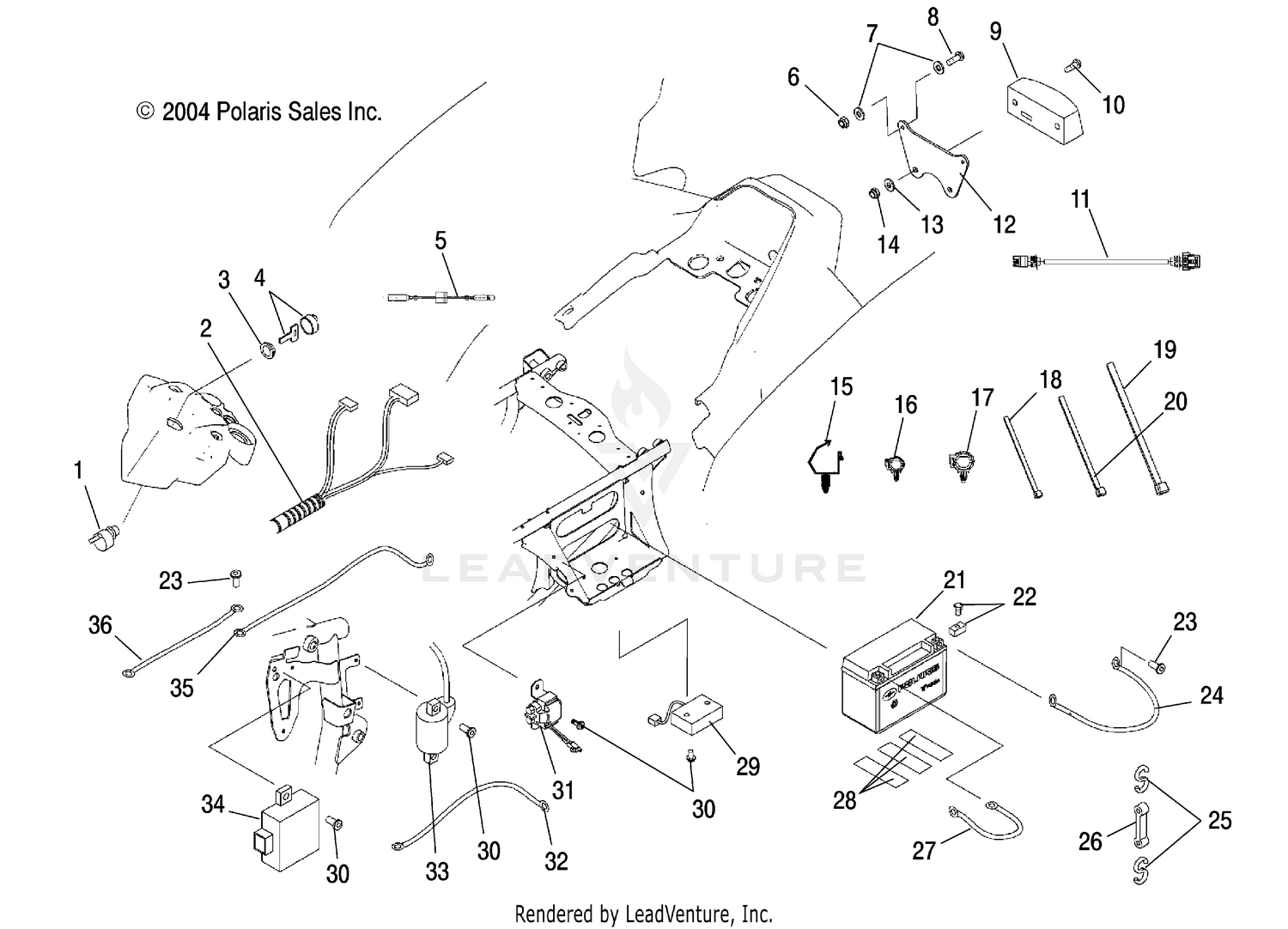

Electrical - A05gj50aa/ab/ac (4995119511b14) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Switch, Ignition
4110264
Superseded by 4012163
|
$134.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Harness, Main
2410527
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Kit, Fusible Link
2202147
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Breaker, Circuit, 20AMP
2410323
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Breaker, Circuit, 10AMP
2410394
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT-IGNITION SWITCH,HOBBS
5433733
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Switch, Ignition
4110264
Superseded by 4012163
|
$134.99 | ||
|
Unavailable |
|||
|
#4
BLANK, KEY, SERIES 2000, 2100, 6700, 6800
4010278
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Diode, 6 AMP
2410000
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Nut, Nylok
7541925
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Washer
7556034
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Screw
7512027
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Asm., Taillight
2410572
|
|||
|
Unavailable |
|||
|
#10
SCR-8-32X2 1/4, TORX,TH
7518432
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Wire, Taillight, LED
2410596
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Mount, Taillight
5812681
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Washer
7555727
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut
7547004
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Clip, Routing
7670109
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Clip, Rosebud
4020139
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Clip, Rosebud
4020149
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
Battery
4010678
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Kit, Battery Bolt
2202213
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7515199
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Cable, Ground, 6 Inch
4011169
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hook, Battery Strap
7081123
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
STRAP, RUBBER
5410608
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Cable, Battery/Solenoid, Red, 7 Inch
4010884
|
$19.59 | ||
|
Unavailable |
|||
|
#28
Pad
5810317
|
|||
|
Available to order. Add to View Price |
|||
|
#29
Rectifier, Regulator
4010654
Superseded by 4012536
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Screw
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Switch, Magnetic
4011087
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Cable, Solenoid/Starter
4010093
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Coil, Ignition
3089266
Superseded by 3088053
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Asm., CDI System
3089613
|
$394.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Cable, Ground, 13.75 Inch
4011170
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#36
Cable, Ground, 10 Inch
4010926
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
