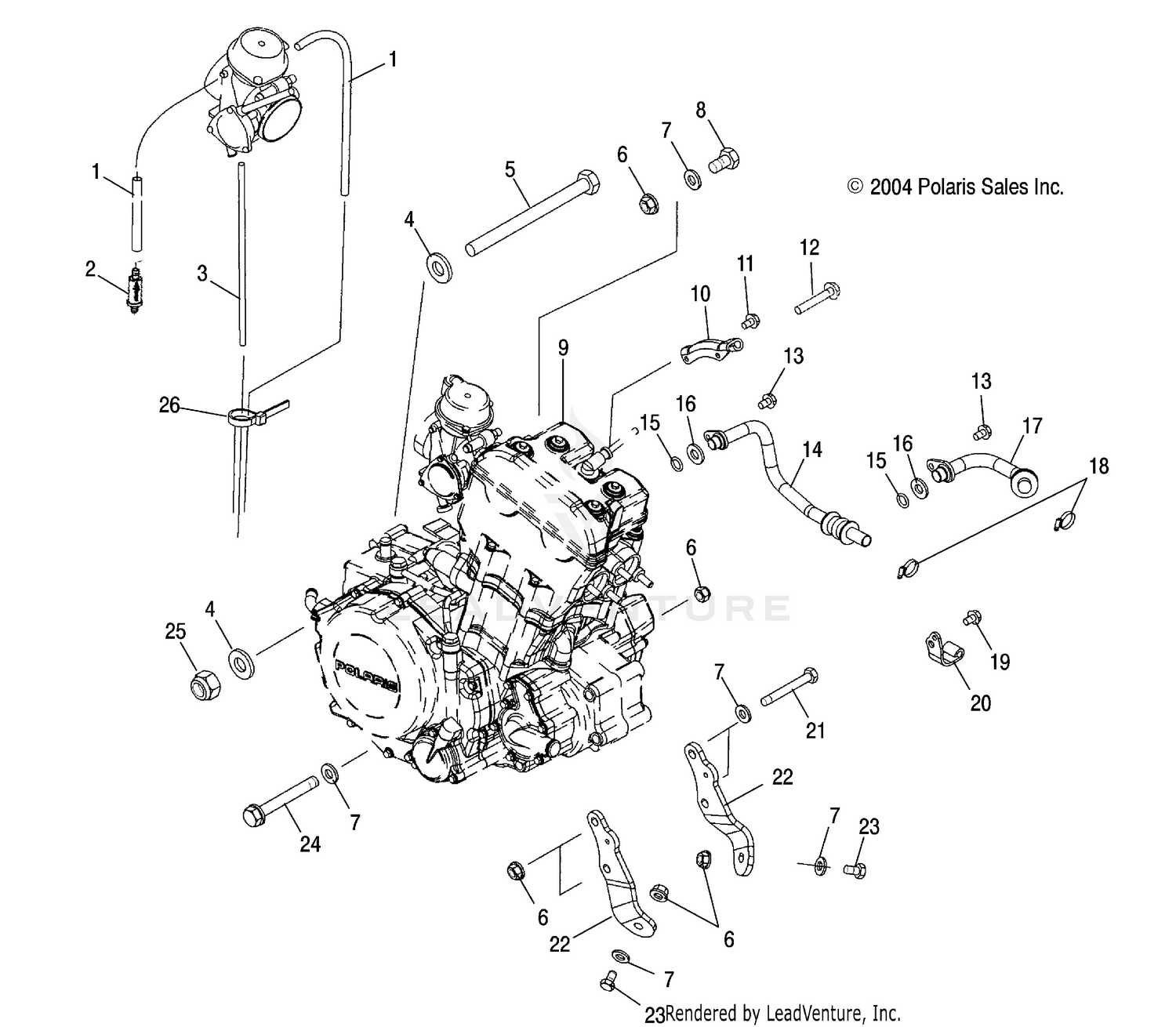

Engine Mounting - A05gj50aa/ab/ac (4995119511a13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Line, Fuel
8450003-1525
|
$89.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
Filter, Fuel
2530009
|
$7.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Line, Fuel
8360009-600
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer
7556264
|
|||
|
Unavailable |
|||
|
#5
Bolt, Swing Arm
7518148
|
|||
|
Unavailable |
|||
|
#6
Nut, Flange
7547108
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Washer, Flat
7555806
|
$0.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Screw
7515433
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
Short Block, ES500PLE020
3089536
|
$5,254.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Bracket, Mount, Clutch Cable
5248313
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw
7518430
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7518431
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7517915
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Asm., Hose, Oil Return
2520413
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-Ring
5411356
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Washer, Flat
7556113
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Hose, Oil Suction
2520414
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
Screw
7517653
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bracket, Mount, Reverse Cable
5248314
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bolt
7517507
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Mount, Motor, Lower, LH
5248315
|
|||
|
Unavailable |
|||
|
#22
Mount, Motor, Lower, RH
5248316
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Bolt
7512457
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Bolt
7515514
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Nut, Lock
7547096
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
