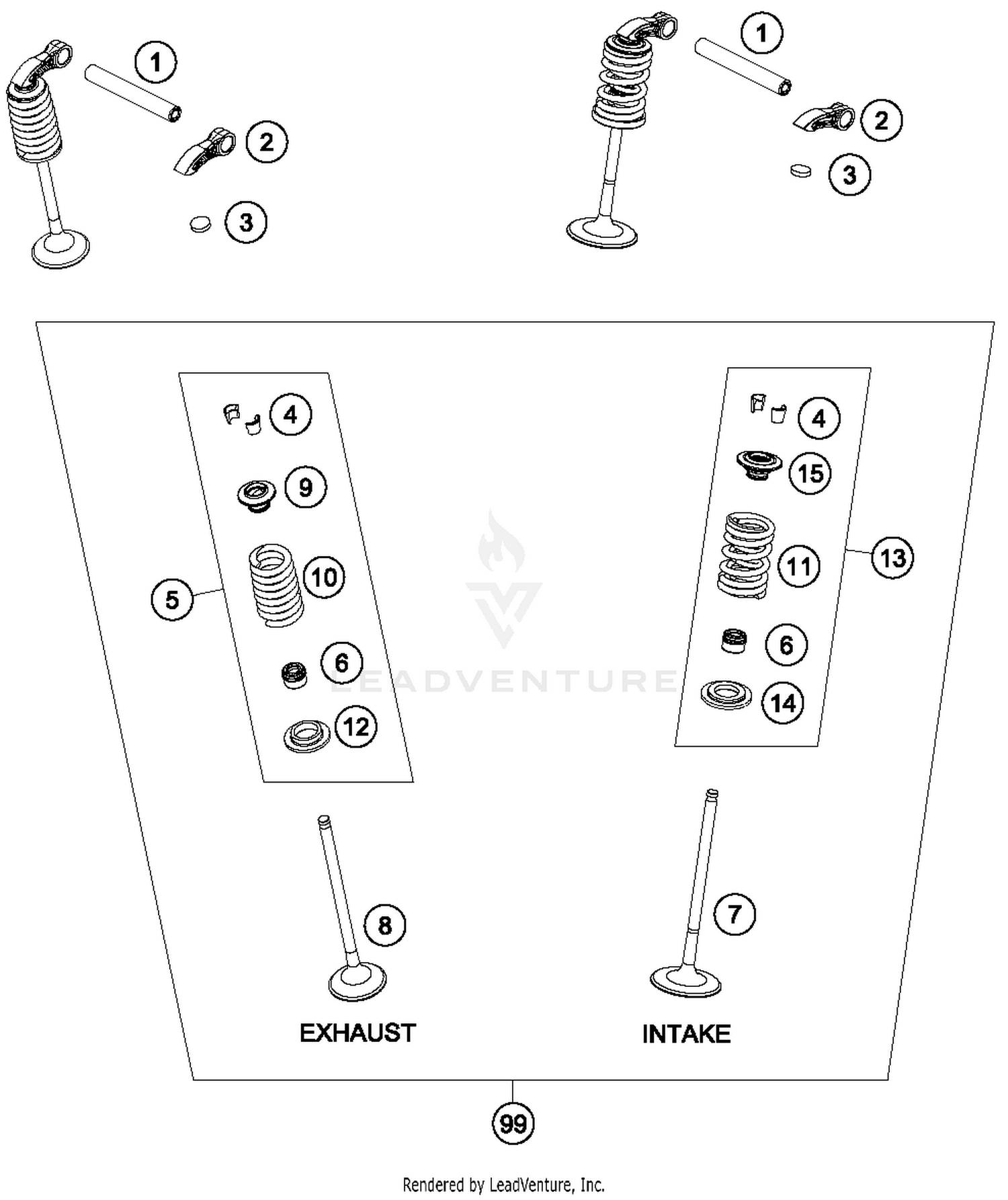

Valve Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cam follower shaft
77236056000
Superseded by 77236056100
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE LEVER
77236060100
|
$119.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/1,72
77036035172
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/1,76
77036035176
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/1,80
77036035180
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/1,84
77036035184
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SHIM D=8,9/1,88
77036035188
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/1,92
77036035192
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SHIM D=8,9/1,96
77036035196
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,00
77036035200
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,04
77036035204
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,08
77036035208
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SHIM D=8,9/2,12
77036035212
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,16
77036035216
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,20
77036035220
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SHIM D=8,9/2,24
77036035224
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SHIM D=8,9/2,28
77036035228
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,32
77036035232
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,36
77036035236
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,40
77036035240
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,44
77036035244
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,48
77036035248
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,52
77036035252
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,56
77036035256
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHIM D=8,9/2,60
77036035260
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
valve collet
77036033000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE SPRING KIT EXHAUST
79036028044
|
$132.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE-STEM SEALING 05
77036027000
|
$7.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
INTAKE VALVE
77736030000
|
$124.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
EXHAUST VALVE
77736031000
|
$157.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE SPRING PLATE
79036132000
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE SPRING NHK HUB 10MM
77736028000
|
$27.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE SPRING
79236028000
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
Valve spring washer
77736136000
Superseded by 77736136100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE SPRING KIT INTAKE
79036128044
|
$153.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
Valve spring washer
79036236000
Superseded by 79036236100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE SPRING RETAINER
79036232000
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#99
VALVE KIT 250 SX-F FACTORY
79036030010
|
$784.62 | ||
|
Available to order. Add to View Price |
|||
