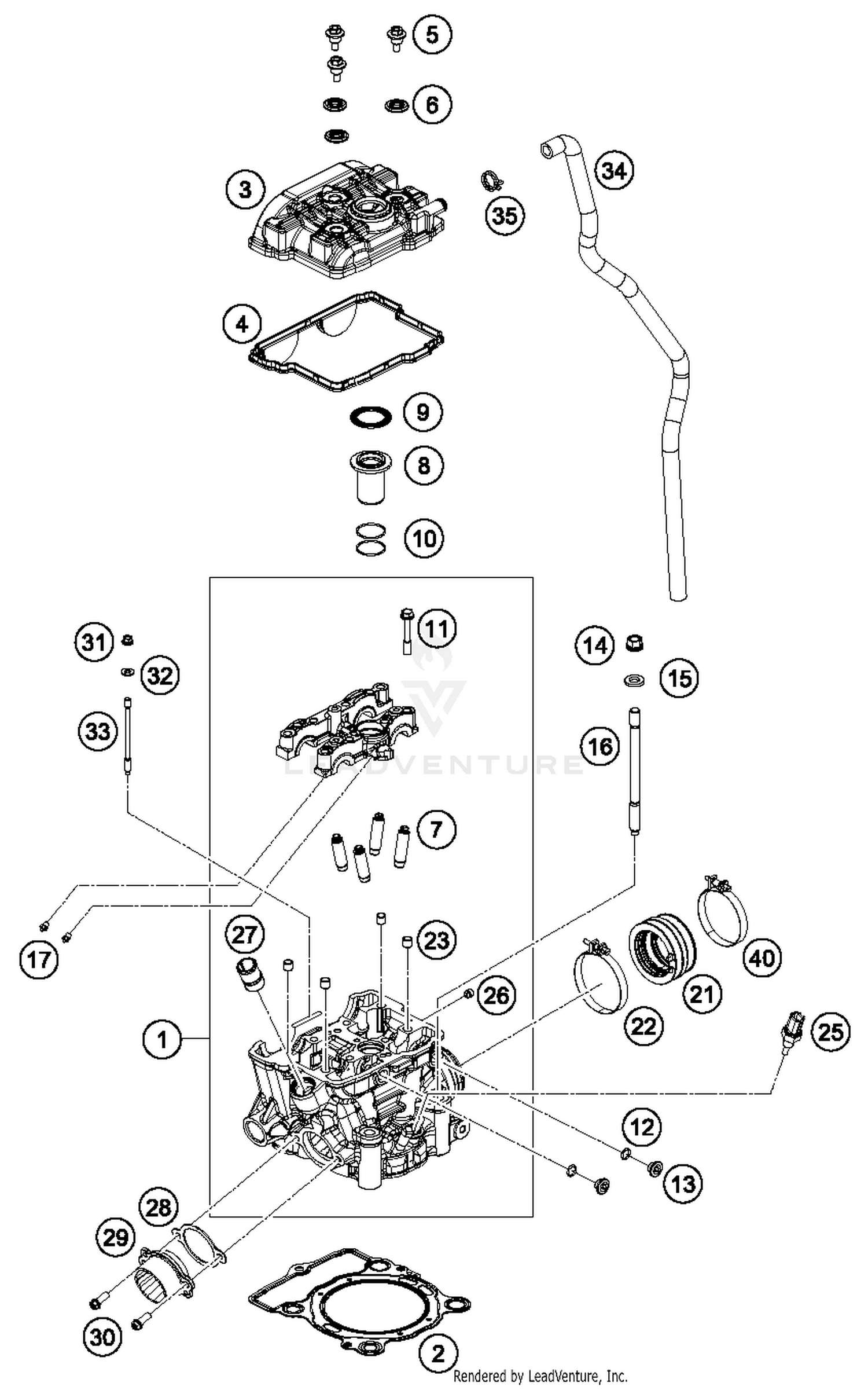

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD CPL.
79036020044
|
$937.52 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER HEAD GASKET
79030036086
|
$113.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE COVER
7773605200033
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE COVER GASKET
77736053000
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE COVER SCREW
77336054150
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
Sealing element
77036054150
Superseded by 77036054250
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE GUIDE OUTLET
77136026001
|
$32.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
INSERT SPARK-PLUG SHAFT
77736075000
|
$22.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET SPARK-PLUG SHAFT
77336053050
|
$6.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING 1,5x26
0770260015
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Collar screw M7x1x42
77330067142
Superseded by 77330067242
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING 9x1,5 V80 SH
07700900151
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW PLUG
77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR NUT M10X1,25 SW13
77336088210
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
washer 19x10.5x2.5
77336089010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STUD BOLT M10X1,25
79230044000
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
oil jet 50 M5
60030063050
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER CUP
79236044100
|
$45.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE CLAMP GEMI 63MM 05
61036047000
|
$8.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
DOWEL(BUSH BRIDGE)7/9/8 05
77036090000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#25
water temperature sensor
79435047000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW PLUG
59030296000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW IN NOZZLE M20X1,5
58030010200
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET EXHAUST FLANGE
77236041000
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#29
Exhaust flange
77736039000
Superseded by 79136039000
|
$37.61 | ||
|
Available to order. Add to View Price |
|||
|
#30
HH collar screw M6x16 TX30 SL
0025060166S
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR NUT M6X1 SW8
77336088106
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
STUD BOLT M6
79230043000
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#34
ENGINE BREATHER TUBE
79030087000
|
$37.17 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP YDNAC 10173 (18MM)
58431082300
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE CLAMP GEMI 58MM
77236048000
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
