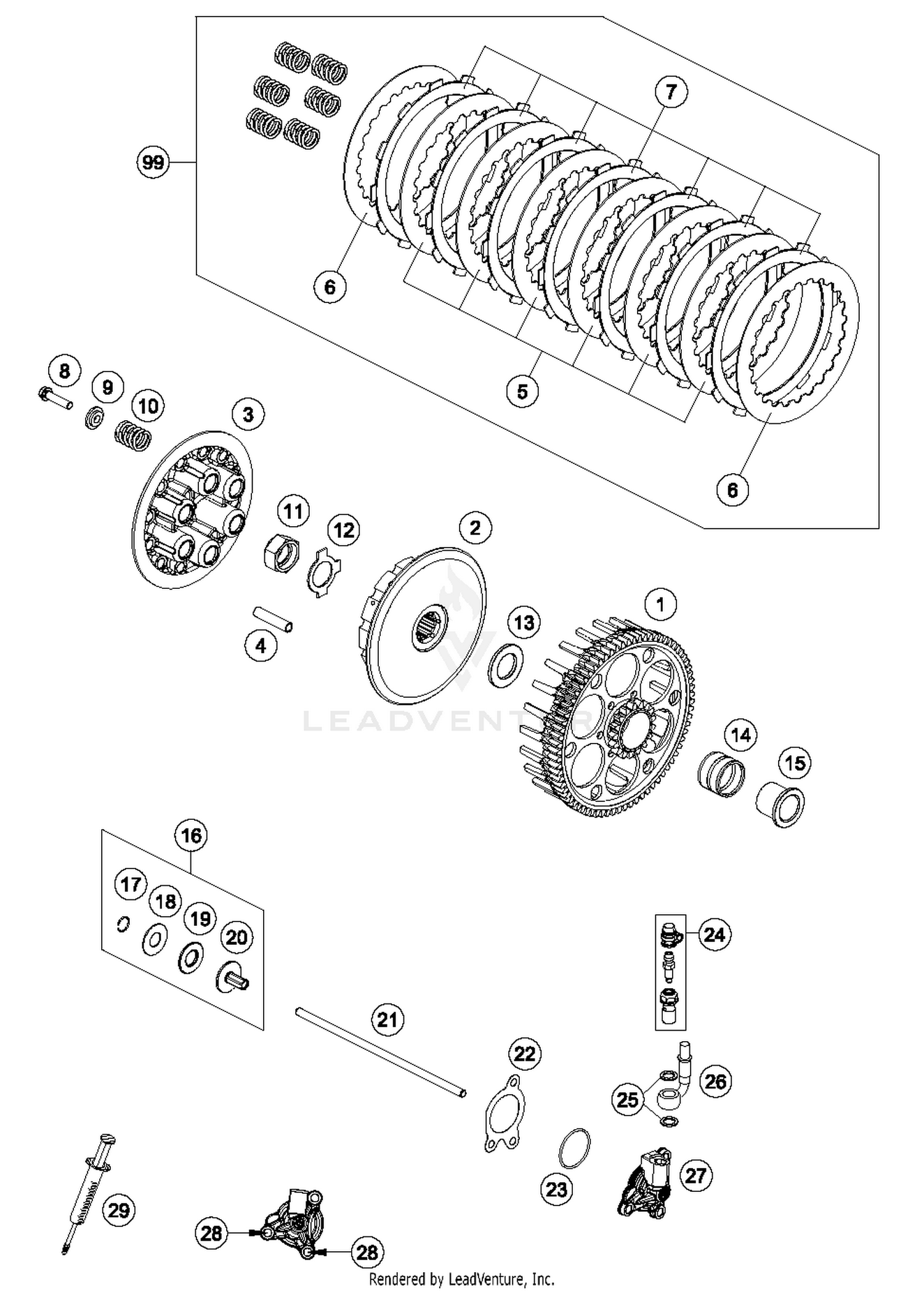

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
clutch basket SX
79232001073
Superseded by 79232301073
|
$289.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
clutch hub
79232002000
Superseded by 79232002100
|
$137.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE CAP
79232003000
|
$50.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
Sleeve, 7.95x35
79232004000
Superseded by 79232104000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INTERMEDIATE DISC 1,4MM 2002
59032010200
|
$12.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
INTERMEDIATE DISC 1MM 2002
59032010100
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Lining disc 1,95mm
59032011100
Superseded by 79532011000
|
$26.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
HH collar screw M6x25 TX30
0025060256
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING RETAINER 6,2X12X18X3,6
59032006000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLUTCH SPRING
79232005000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Nut M18x1.5 Precote
77232019000
Superseded by 0910001801400S
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHEET METAL LOCK
77232018000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER 21,8 X 37 X 3
77232009100
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
inner ring
77232015000
Superseded by 77232015100
|
$24.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRESSURE PIECE CPL. 08
78032057044
|
$30.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP DIN7993-RW12
0993012000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
AXIAL WASHER AS1226 12X26X1
54637098200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXIAL NEEDLE BEARING AXK 1226
54637097200
|
$11.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PRESSURE PIECE CPL. 08
78032057000
Superseded by 78032057044
|
$30.68 | ||
|
Unavailable |
|||
|
#21
PUSH ROD
79232054000
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
Seal, slave cylinder
79232065000
Superseded by 79232065100
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BLEEDER SCREW CPL.
79032064000
|
$35.74 | ||
|
Available to order. Add to View Price |
|||
|
#25
CU-SEAL RING 8 X 16 X 1
0603080161
Superseded by 56530080000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CLUTCH PIPE
79232063000
|
$132.21 | ||
|
Available to order. Add to View Price |
|||
|
#27
OUTPUT CYLINDER CPL.
79232061044
|
$220.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH collar screw M6x16 TX30
0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#99
CLUTCH KIT 350 SX-F
79232010010
|
$247.27 | ||
|
Available to order. Add to View Price |
|||
