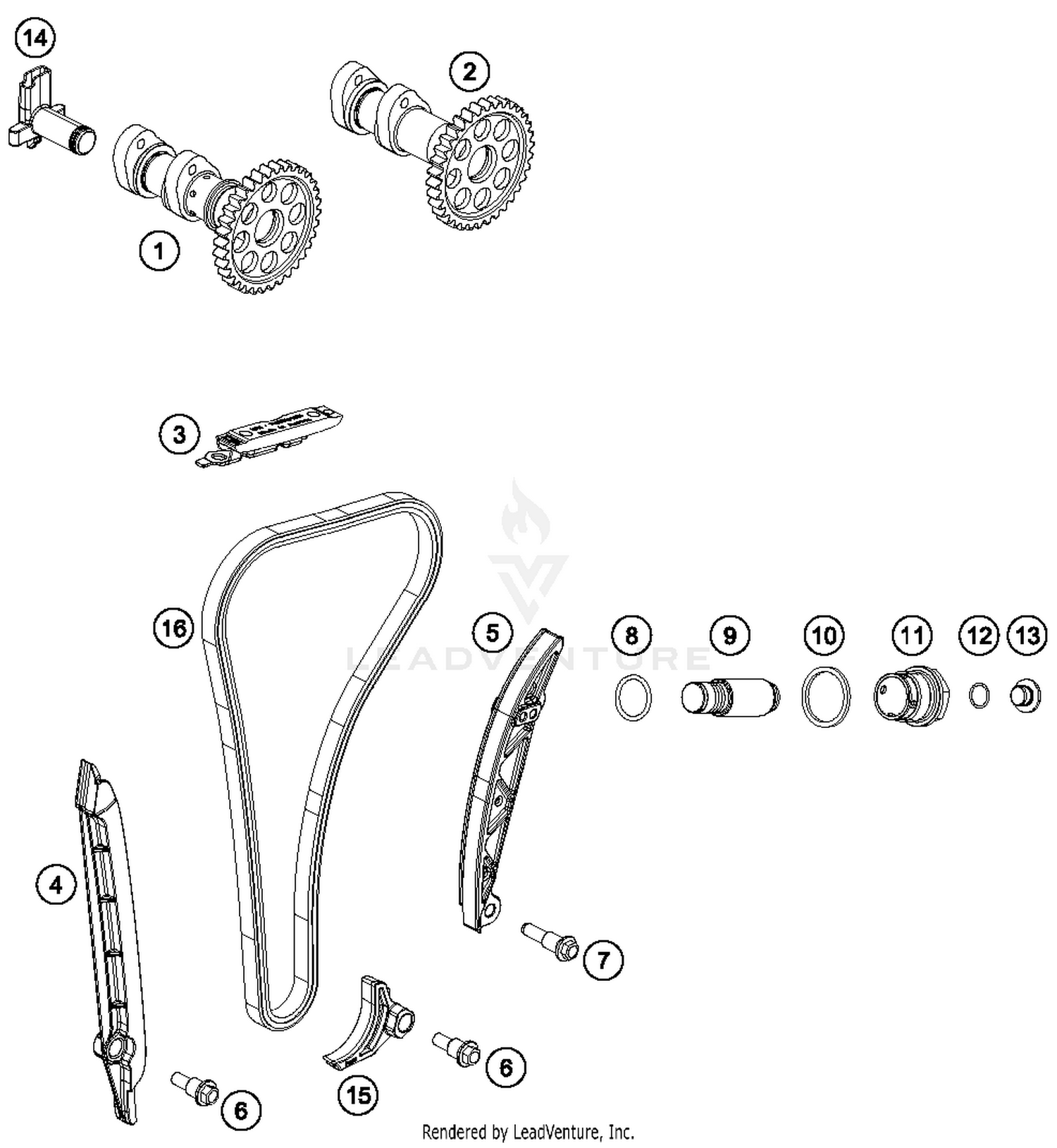

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT INTAKE
79036009000
|
$244.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAMSHAFT EXHAUST
79036010000
|
$240.01 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIMING CHAIN GUIDE TOP
79236004000
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE RAIL
79236001000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
TENSIONING RAIL
79236002000
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSHING SCREW M6
77236001160
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING SCREW M8
77236002160
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
o-ring 18.00x2.00 NBR70
0770180020
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CHAIN ADJUSTER HYD. 05
77036003000
|
$86.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CU SEAL-RING DIN7603 A24X29X2
0603242920
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDING BOLT M24X1,5
77336008000
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
o-ring 10.00x1.00 NBR70
0770010010
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW PLUG
77236080000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
ANGLE PIECE F. BREATHER SYSTEM
77236081000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SECURING PROTECTION
77236005000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIMING CHAIN
79236013100
|
$124.62 | ||
|
Available to order. Add to View Price |
|||
