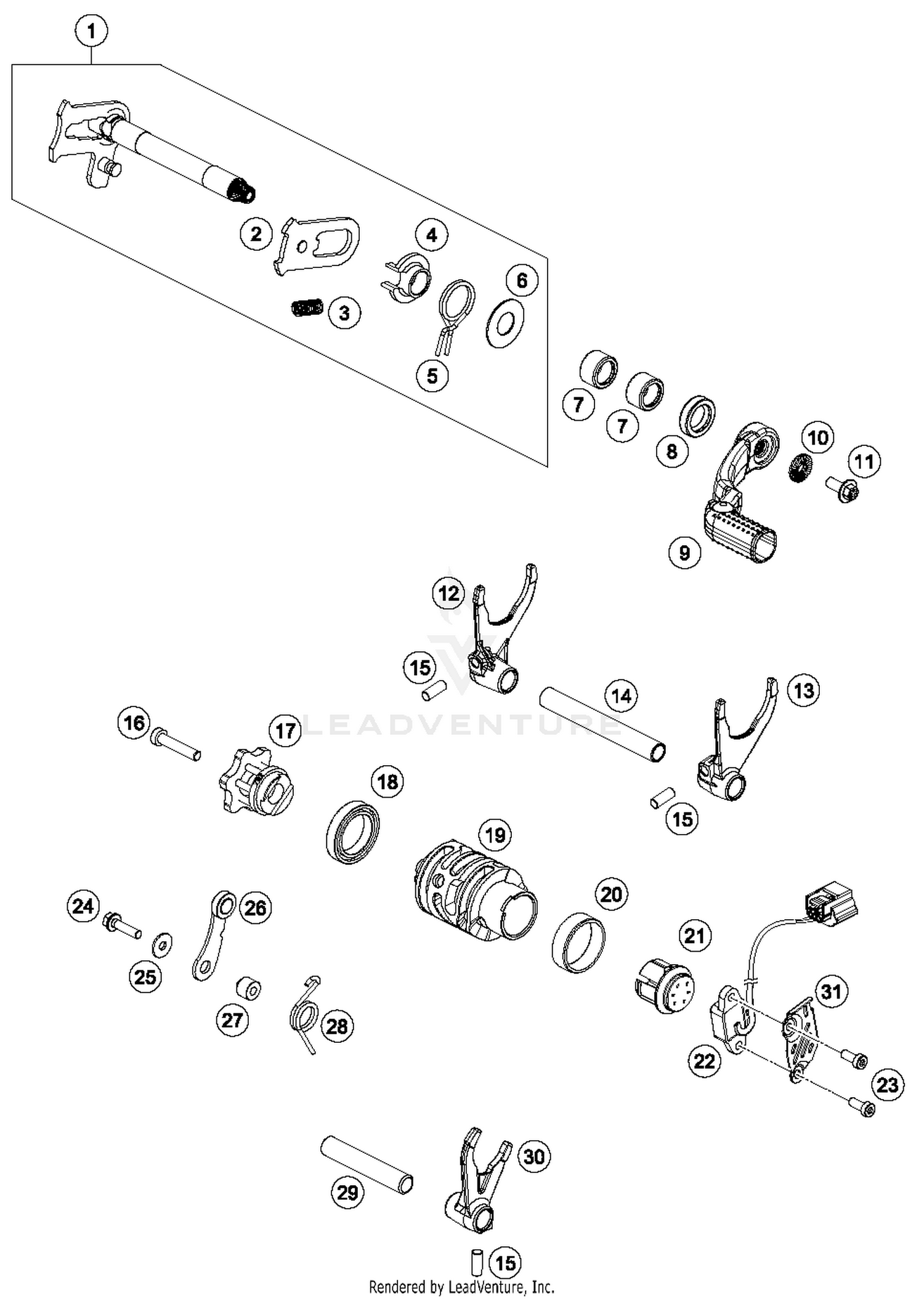

Shifting Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT CPL.
79234005133
|
$98.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLIDING PLATE CPL.
79234008144
|
$41.79 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONING SPRING 0,8MM
56534013100
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING GUIDE
54634020000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
RETURN SPRING 03
54834014000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOP DISK 14X30X1
54634050000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
needle sleeve HK 1412 14x20x12
54632095000
|
$8.24 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
radial shaft seal 14x24x6 B
0760142460
|
$10.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SHIFT LEVER CPL.
79234031000
Superseded by 79234031100
|
$120.66 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAIR NORDLOCK WASHER M6
50233041500
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HH collar screw M6x15 TX30
0024060156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SHIFT FORK 1.-3. GEAR
79234103000
|
$61.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIFT FORK 2.-4. GEAR
79234102000
|
$62.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIFTING MAIN L=93MM 05
77034019000
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE ROLLER DIN5402 6X14,8
0402061480
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AH SCREW DIN6912 M 6X30
0984060302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shift star cmpl
79234015000
Superseded by 79234015100
|
$30.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL BEARING 61805 C3
0625618050
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIFT ROLLER
79234112000
|
$83.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRICTION BEARING CONTROLLER
79234012010
|
$27.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
magnet holder cpl.
79234012020
|
$69.07 | ||
|
Available to order. Add to View Price |
|||
|
#22
gear position sensor
79211023000
|
$142.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
CYL. SCREW DIN6912 M5X14 8.8
0984050143S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
HH collar screw M5x20 TX30
0025050206
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
washer DIN 9021 A - 5.3
0021050003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Detent arm cmpl.
79234024044
Superseded by A46034024044
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
SLEEVE FOR LOCKING LEVER
54634052300
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCKING LEVER SPRING 03
54834023000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SHIFT. RAIL MAIN SHAFT 250/300
54834019000
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHIFT FORK 5.-6. GEAR
79034101000
|
$61.26 | ||
|
Available to order. Add to View Price |
|||
|
#31
Guard plate motion sensor
79211024000
Superseded by 79211024100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
