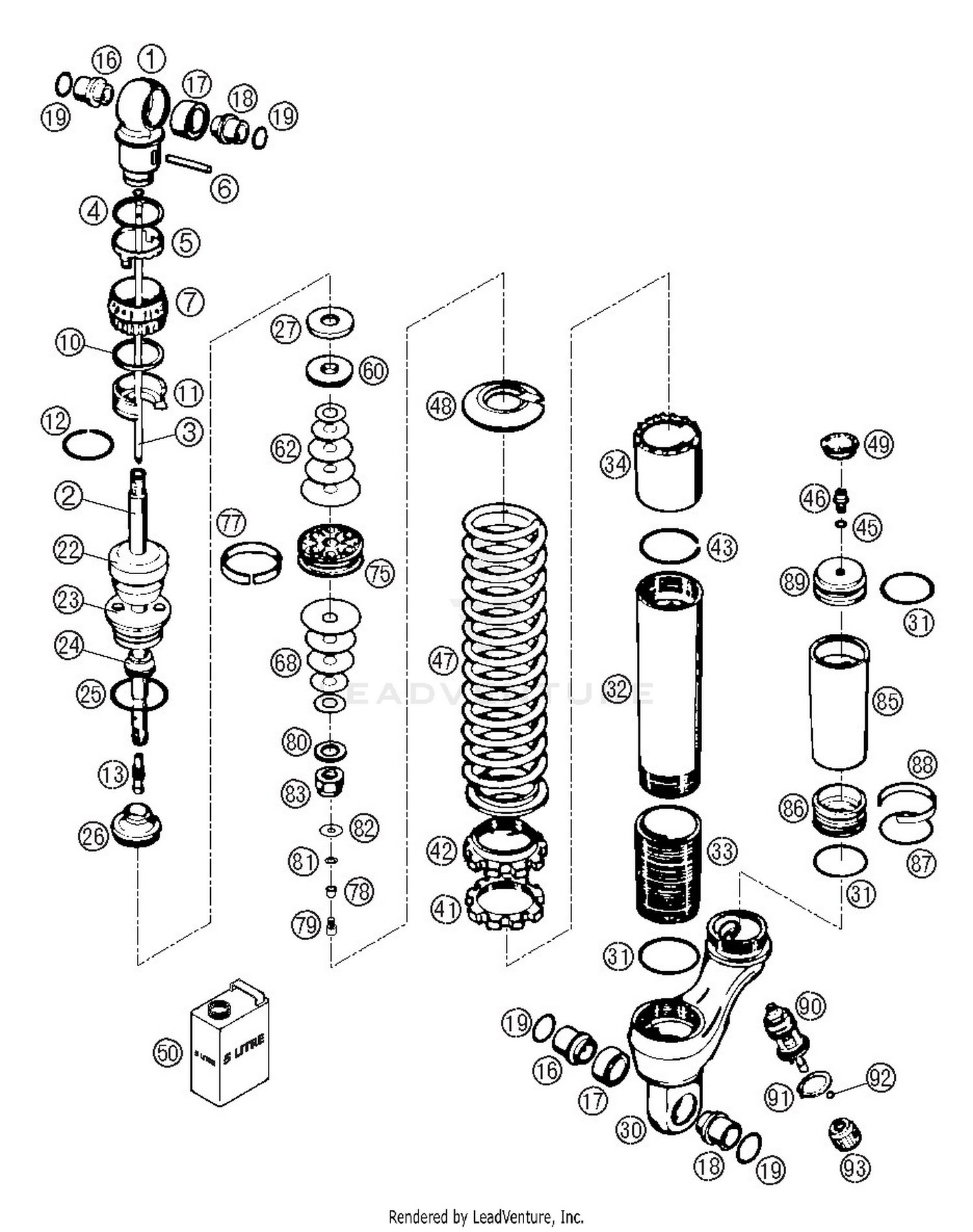

Shock Absorber Wp Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABS. BOTTOM L=46
46811525
|
$256.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON ROD D=14, L=126
36120586
|
$168.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE CPL. D=4, L=142
46811401S
|
$132.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING 36X0,5
46811222
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
46811263
|
$12.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN 4X35
46811261
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJ. KNOB D=41
46811262
|
$15.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
Shaft seal 29x35x3
46811221
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
INTERMEDIATO RING H=4
46811367
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP 22X1,2
46811268
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE SEAT 5X17,25
46811259
|
$84.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
ADAPTOR BUSH KGW 10X20
46811076
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
Ball joint bearing 15x25x13
46811027
Superseded by 50180005
|
$34.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
ADAPTOR BUSH KGW 10X22
46811077
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL KGW
46811050
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUMP RUBBER WP65 RED
36120135
|
$30.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW CAP M37,65
36120521
|
$86.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL 1424
46811044
|
$23.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-ring 29,74x3,53 NBR70
36120064
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
ADAPTER CPL. D=36 H=20,5
36120522S1
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHIM 28,5X14X2
36120469
|
$12.42 | ||
|
Available to order. Add to View Price |
|||
|
#30
SHOCK ABSORB.CASE PGB KGW H=33
36120726
|
$264.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-ring 40x2 NBR70 black
46811042
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#32
TUBE L=167
36120137
|
$83.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
Bush M40x1xM44x1,5x70
36120019
|
$34.19 | ||
|
Available to order. Add to View Price |
|||
|
#34
PROTECTION SLEEVE L=40
36120467
|
$21.54 | ||
|
Available to order. Add to View Price |
|||
|
#41
Lock nut shock M44x1,5
36120015
|
$36.18 | ||
|
Available to order. Add to View Price |
|||
|
#42
Adjustment nut shock M44x1,5
36120418
|
$53.78 | ||
|
Available to order. Add to View Price |
|||
|
#43
Round-wire snap ring 38x1,5
40540015
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-ring 5,28x1,78 HNBR70 red
46810893
Superseded by S208600003000FB
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUG SCREW M5X6 CPL.
36120151
Superseded by 36120151ST
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING WP 40-220
93010049
|
$150.91 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPRING WP 45-220
93010050
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#48
Spring retainer 27x57x2
36120386
|
$31.78 | ||
|
Available to order. Add to View Price |
|||
|
#49
Rubber cap do not open 22x5,5 NBR
46811208
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
SHOCK ABSORBER FLUID 5 LT
50180342S1
Superseded by 50180751S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
REBOUND BUSH H=5,6
36120557
|
|||
|
Unavailable |
|||
|
#62
SHIM 10X16X0,30
36120312
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X21X0,20
36120334
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X23X0,20
36120335
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X25X0,20
36120336
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X27X0,20
36120337
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X29X0,15
36120330
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X31X0,15
36120331
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X33X0,15
36120332
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X27X0,15
36120329
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X19X0,15
36120325
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#62
SHIM 10X33X0,20
36120340
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
SHIM 10X18X0,30
36120314
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
SHIM 10X21X0,25
36120342
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
SHIM 10X23X0,25
36120343
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
SHIM 10X25X0,20
36120336
|
$2.41 | ||
|
Unavailable |
|||
|
#68
SHIM 10X16X0,10
36120284
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#68
SHIM 10X23X0,20
36120335
|
$2.41 | ||
|
Unavailable |
|||
|
#68
SHIM 10X25X0,15
36120328
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#75
Piston 10,5x35,6x13,65 3,5/5,5
36120603
Superseded by 36120071
|
$72.59 | ||
|
Available to order. Add to View Price |
|||
|
#77
Pistonring 33x35x8
36120040
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#78
BUSHING 6X9X3
46811267
|
|||
|
Unavailable |
|||
|
#79
BLEED SCREW M 4X6
46811251
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#80
Washer 10x22x2,5
36120604
|
$24.52 | ||
|
Available to order. Add to View Price |
|||
|
#81
Shim 6x9,5x0,30
40540450
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#82
Shim 6x18x0,10
40540403
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#83
PISTON ROD NUT CPL. H=15,2
36120605S2
|
|||
|
Unavailable |
|||
|
#85
RESERVOIR SCREW L=98 GREY
36120631
|
$177.07 | ||
|
Available to order. Add to View Price |
|||
|
#86
Piston 42mm reservoir
36120024
|
$37.40 | ||
|
Available to order. Add to View Price |
|||
|
#87
O-ring 32x5 Viton70
36120466
|
$8.78 | ||
|
Unavailable |
|||
|
#88
Piston ring 36,5x39,5x3,9
46810022
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#89
SCREW FOR RESERVOIR CAP M5
36120552
|
$52.61 | ||
|
Available to order. Add to View Price |
|||
|
#90
CC-COMPRE.DAMPING CONTROL CPL.
46810850S7
|
|||
|
Unavailable |
|||
|
#91
LOCK WASHER JV24
46810334
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#92
STEEL-BALL D=4,75
46810333
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#93
ADJUSTING KNOB CC-MECH. CPL.
50180131S
|
$29.57 | ||
|
Available to order. Add to View Price |
|||
