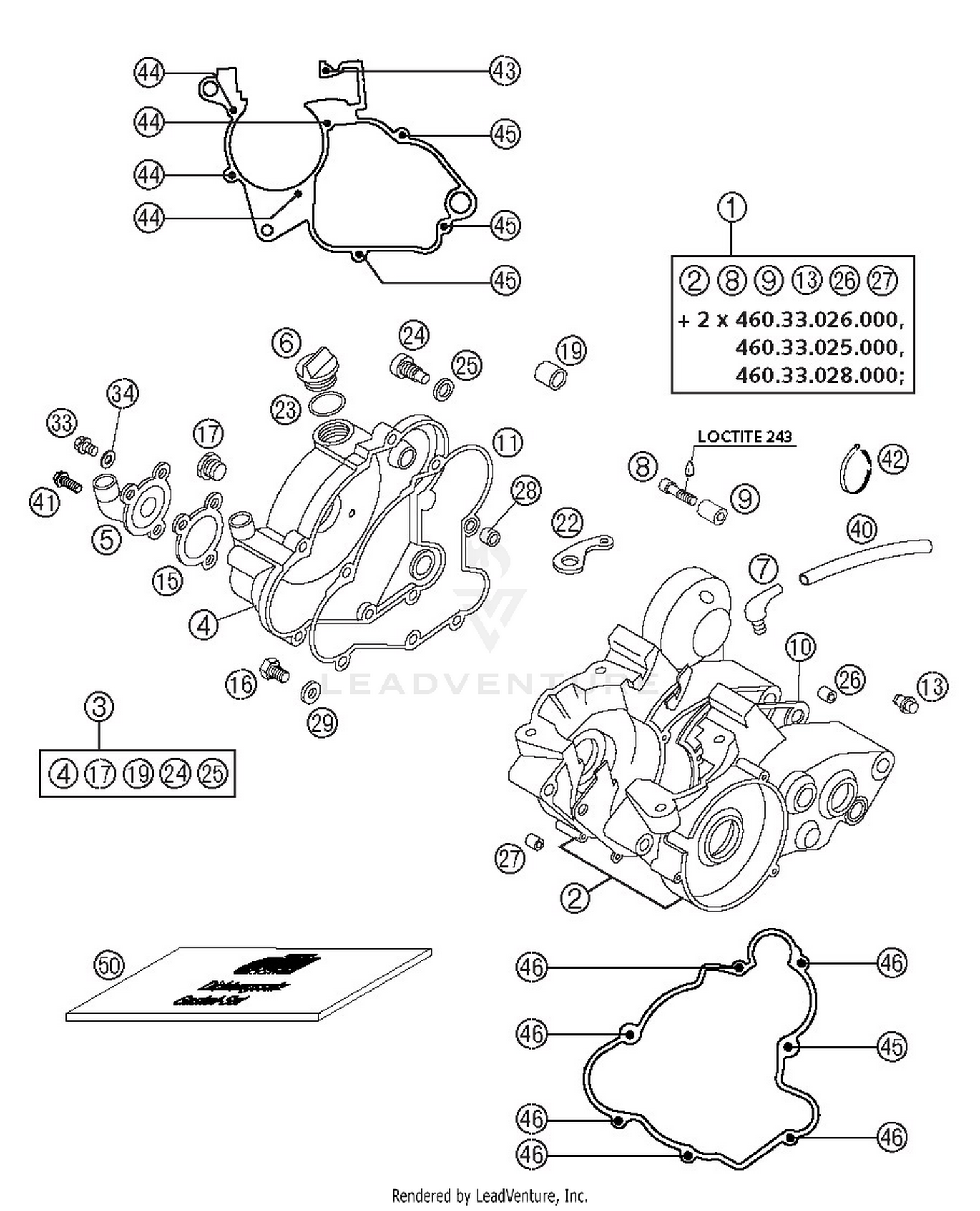

Engine Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CASE CPL. 65 SX 2003
46030000244
|
$390.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH COVER CPL. 65 SX 2002
46030001200
|
$125.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
WATER PUMP COVER 50 LC 2002
45135052000
|
$56.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
oil plug cpl. M24x3
58030020000
Superseded by 58030020100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
ANGLE PIECE 90 DEGREE M10X1
51030022000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
ENGINE CASE GASKET 60/65
46030039000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH COVER GASKET INSIDE
46030025000
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET WATER PUMP COVER 02
45135053000
|
$15.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
OIL DRAIN PLUG M10 WS=13
46030021100
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS TYPE GN 540
49030095000
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
PRESS IN BUSH KICKSTARTER 65SX
46033068000
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELEASE LEVER 65 SX 2002
46032059100
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING 16,00X3,00 NBR 70
0770160030
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SPECIAL SCREW 65 SX
46033067000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER F. SPECIAL SCREW 65 SX
46033067100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DOWEL 17X15
46030023100
|
$10.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
DOWEL 12X14,5
46030023000
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
DOWEL 9X15
46030024000
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#29
COPPER GASKET 10,2X14X2 MM 01
0603101420
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
HH collar screw M6x10 TX30
0015060103
Superseded by 0025060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CU-SEAL RING DIN7603-6X10X1
0603061001
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PVC-HOSE 5 X 8 MM
31007007001
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#41
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
AH SCREW DIN0912-M 6X40 A2
0912060404
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
AH SCREW DIN0912-M 6X45
0912060453
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
AH SCREW DIN0912-M 6X30
0912060303
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
AH SCREW DIN0912-M 6X25
0912060253
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
GASKET SET CPL. 65 SX 2002
46030099100
|
$150.44 | ||
|
Available to order. Add to View Price |
|||
