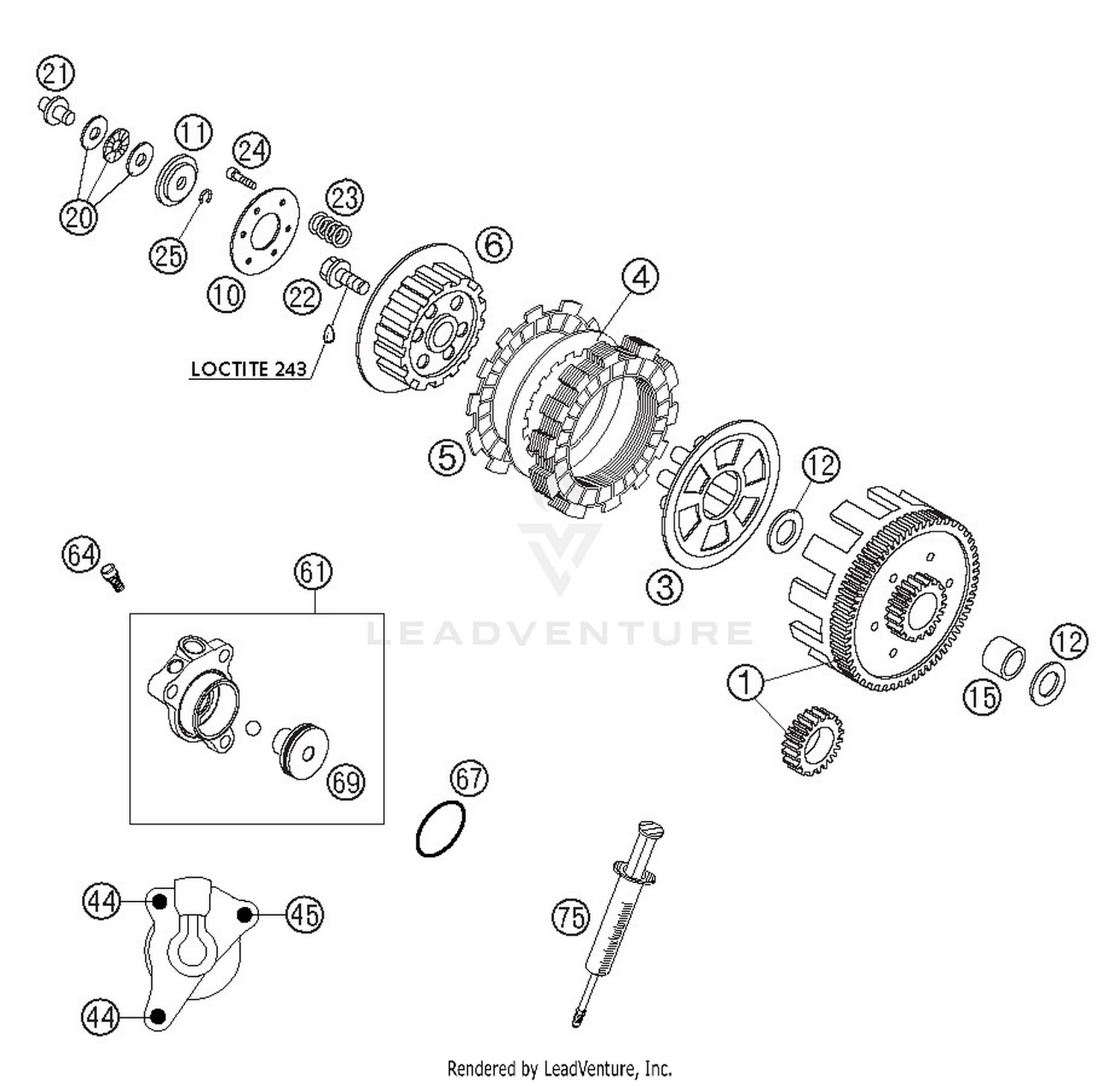

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIM.DR.W.CLUTCH HUB 23:75 '99
46032000144
|
$463.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE CAP 60/65 CCM '98
46032003000
|
$89.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
INTERMEDIATE DISK STEEL
46032010000
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
LINING DISK
46032011000
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER CLUTCH HUB 60/65 CCM '98
46032002000
|
$112.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING RETAINER 25X63,5X2
46032006000
|
$33.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARRIER FOR AXIAL BEARING
46032008000
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOP DISK 17,2X30X1,5
49032012000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
INNER RING 22X17X20,5
46032015000
|
$36.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
AXIAL BEARING 6X19X2
46032056000
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
PRESSURE PIECE 65 SX 2002
46032054100
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH COLLAR SCREW M10X20
46032019000
Superseded by 46132019000
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLUTCH SPRING REINFORCED 60/65
46032005100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
TAB WASHER DIN6799-RS 6,0
0799060000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
CYLINDER CPL. 250-380
54732061044
|
|||
|
Unavailable |
|||
|
#64
BLEEDER SCREW WITH CAP
54732064000
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#67
O-RING 30,00X1,50 NBR 70
0770300015
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#69
OUTPUT CYL. WITH BLEEDER SCREW
54632066000
Superseded by 75032061044
|
$283.24 | ||
|
Available to order. Add to View Price |
|||
|
#75
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
