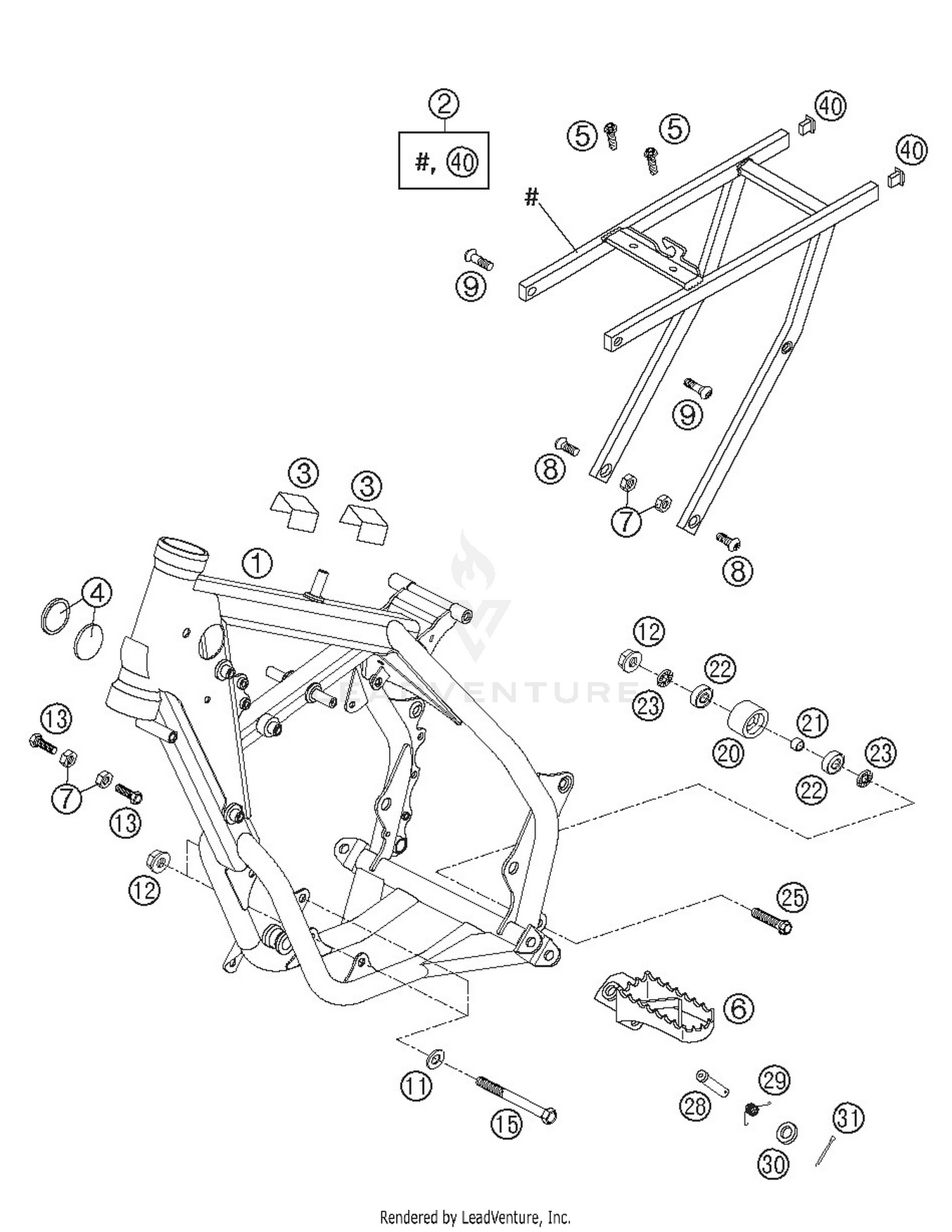

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 65 SX ''MD3R'' 2003
4610300110090
|
$428.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME 65 SX 2002
46103002044
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
METAMOLL FOR BATTERY BRACKET
58711054050
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG 37MM
54606004000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
FOOT PED L/S SILVER '98
5460304010090
|
$41.14 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOT PED R/S SILVER '98
5460314010090
|
$47.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLAT HEAD SCREW M. ISA45 M8X20
54610052000
Superseded by 0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SELF LOCKING NUT M8 10.9
54310086200
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HH SCREW DIN 931 M8X80 10.9
0931080803
Superseded by 0931080805
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CHAIN ROLL D=30MM
50203053000
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSHING 8.2 X 12 X 6
74003021000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
PLUG-IN CAP SW14 99
50303002182
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
