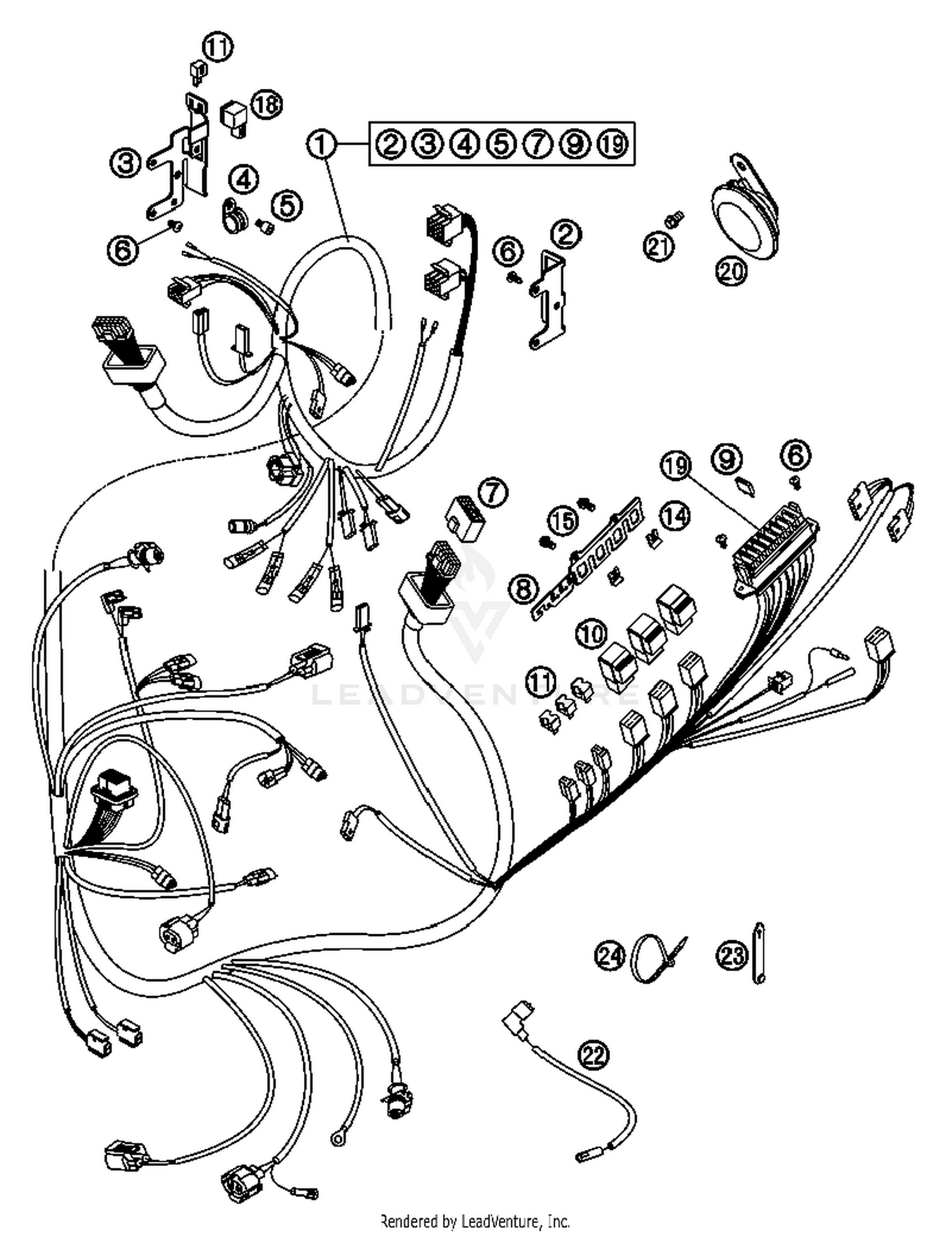

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAIN WIRING HARNESS 05
62511075000
|
$592.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUPPORT BRACKET L/S
58611083000
|
|||
|
Unavailable |
|||
|
#3
SUPPORT BRACKET R/S
58611183000
|
|||
|
Unavailable |
|||
|
#4
CLAMP RSGU 15/12
49007439000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
AH SCREW DIN0912-M 5X10
0912050103
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
EJOT PT screw K50x12
0016050121
Superseded by 0081050121
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUMMY PLUG ALARM SYSTEM 05
61011075020
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET RELAY 05
62511057050
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 10 A 2000
58011109110
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE 15 A
58011109115
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER RELAY '96
58411057000
|
$27.49 | ||
|
Unavailable |
|||
|
#11
DIODE S3H-15 97
58411096100
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
RANGE CHANGE METAL NUT M5
54603048200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
FLASHER UNIT 97
44611207200
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE-BOX COVER
58511075510
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
DC HORN 05
62511060000
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
OIL-PRESSURE SWITCH CABLE 03
60011092000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 45MM 03
60011093045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RUBBER CABLE TIE 75MM 03
60011093075
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
