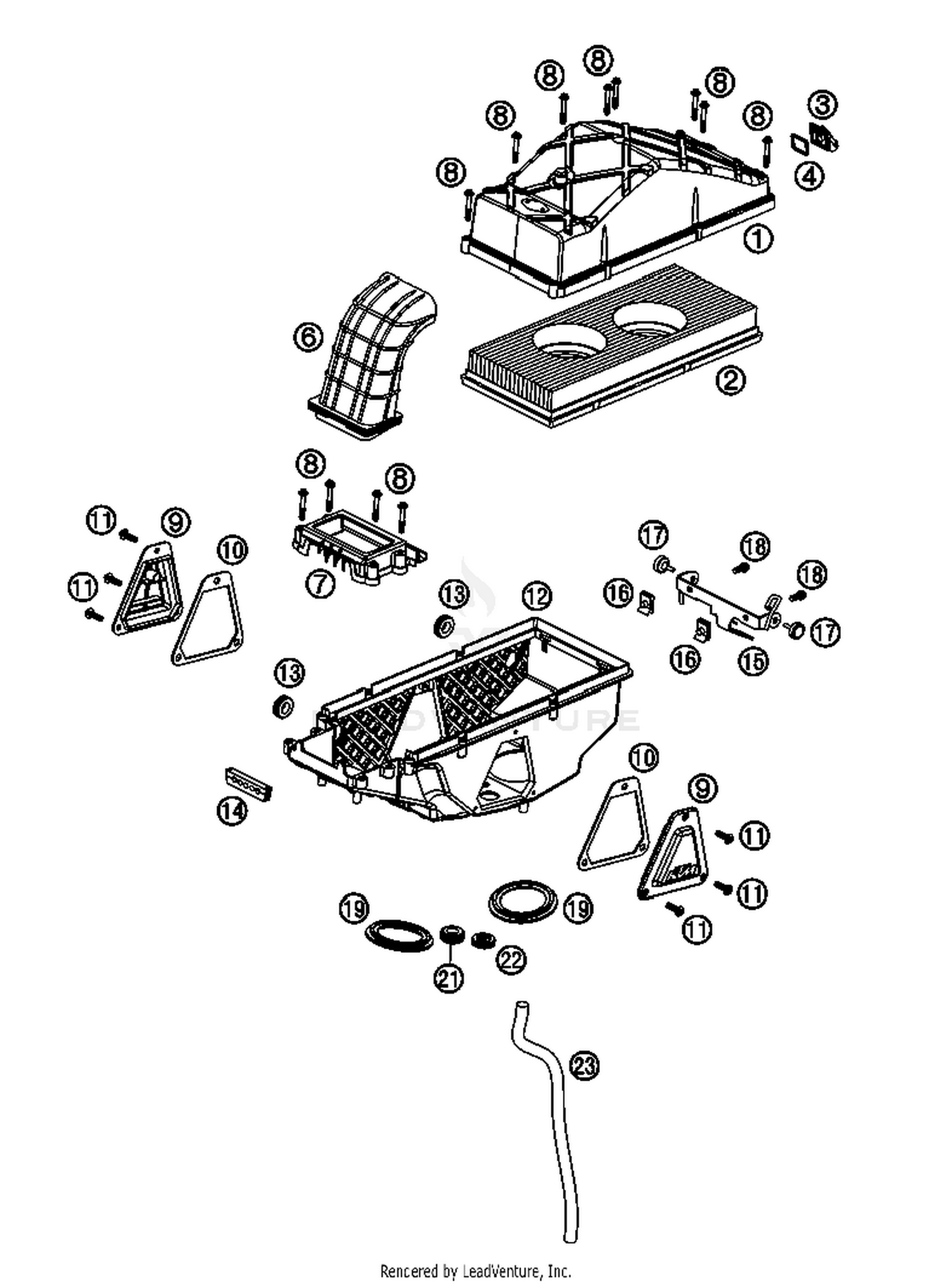

Air Filter Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AIRBOX COVER LC8 03
60006002000
|
$51.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
AIR FILTER LC8 03
60006015000
|
$58.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR FOR SAS LC8 03
60006007000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET SAS CONNECTOR 03
60006007050
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
INTAKE SNORKEL 03
60006040000
|
$32.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
AIRBOX FRONT PART LC8 03
60006004000
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW K60X35/15 03
60006006000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
AIRBOX COVER L/S R/S 03
60006003002
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET F. AIRBOX COVER L/S R/S
60006003050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW FOR PLASTIC K60X20 SW6
0017060203
Superseded by 0017060205
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FILTER BOX LOWER PART USA
60006001033
|
|||
|
Unavailable |
|||
|
#13
RUBBER SLEEVE D=16MM CLOSED 03
60006001050
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER SLEEVE CABLE PASSAGE 03
60006001030
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET PANEL SAS A. EPC 03
60006001020
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
clip nut M6
54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISTANCE RUBBER AIRBOX 03
60006001021
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
HH collar screw M6x16 TX30
0015060163
Superseded by 0025060166
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RUBBER SLEEVE AIRBOX 03
60036045000
|
$47.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER SLEEVE FUEL HOSE 03
60006001041
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER SLEEVE STOP SCREW
60006001023
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE 10X14 PER METER
57005020001
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
