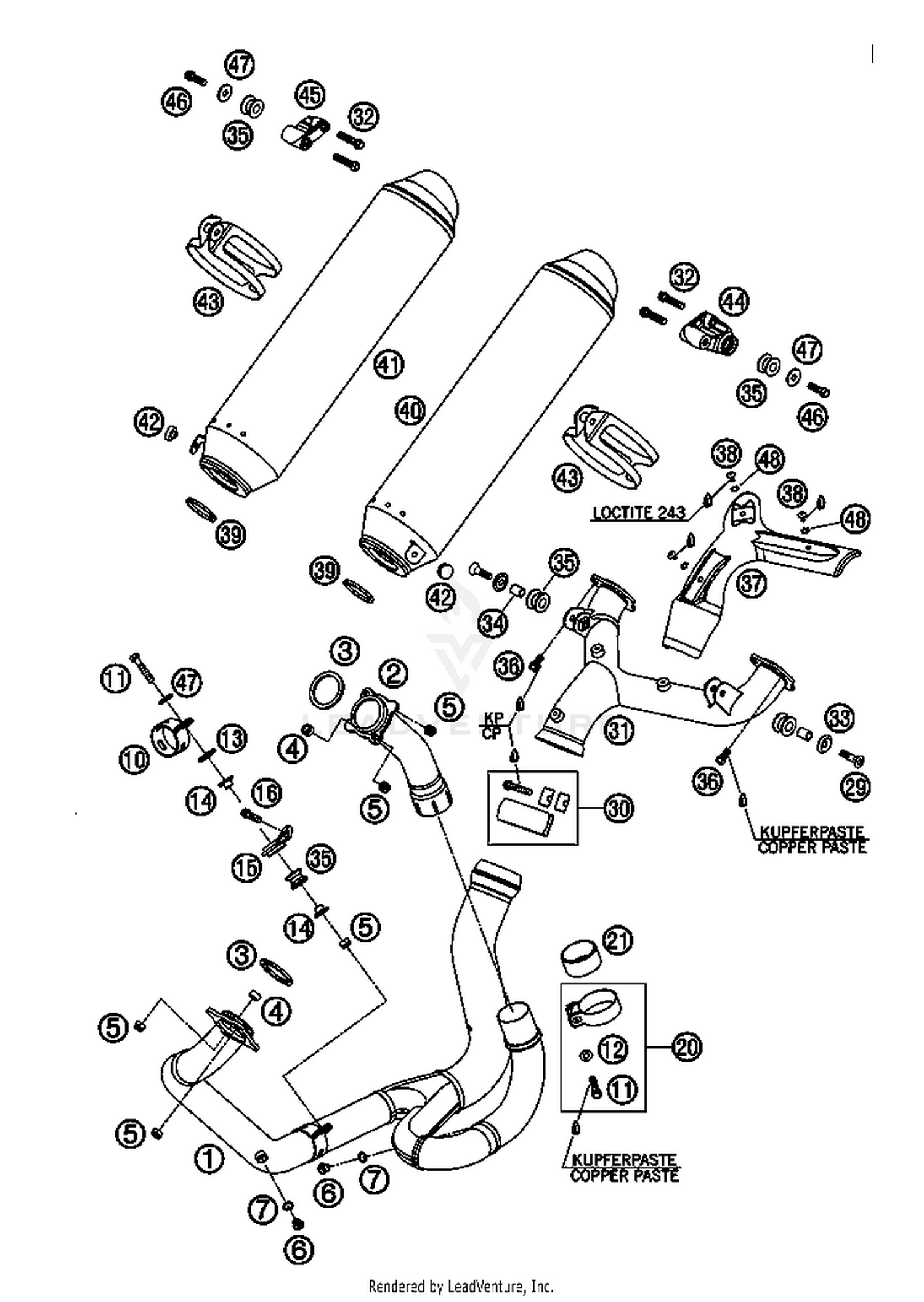

Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE FRONT 05
62505007100
|
$794.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
EXHAUST PIPE REAR 05
62505008000
|
$164.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET 03
60005005000
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER BUSH. 8,5X15X7,5 05
61005009000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
self-locking nut M8 Cu
51010086100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG DIN0908-M10X1 A2
0908100000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
sealing ring DIN 7603 10x14x1
0603100141
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP EXHAUST PIPE 05
61005007049
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
HH COLLAR SCREW M8X40 TX40
0015080403
Superseded by 0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
INSOLATE WASHER 8,5X28X3
51005067000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
collar bushing 8.5x12x23.5x10
58405050065
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
EXHAUST PIPE BRACKET FRONT 07
62505015050
Superseded by 62505015150
|
$18.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CLAMP CPL. D=53,2MM 05
61005051100
|
$31.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
Graphite ring 45X50X25
58405005001
|
$19.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#30
EXHAUST CLAMP CPL. 05
61005052000
|
$33.43 | ||
|
Available to order. Add to View Price |
|||
|
#31
DISTRIBUTOR TUBE 05
62505048100
|
$389.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
HH collar screw M8x30
0015080303
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPECIAL WASHER ALU 8X24 MM ELO
58303061100
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPACER BUSH. 8,5X12X18MM 05
62505069000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#35
damp. component silicone grey
54305068100
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
HH COLLAR SCREW M8X16 TX40
0015080163
Superseded by 0025080166
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
THERMAL SHIELD 05
62505047000
|
$83.57 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW TORX M5X10 05
58605083010
|
$2.99 | ||
|
Unavailable |
|||
|
#39
EXHAUST GASKET 03
60005005002
|
$7.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
SILENCER L/S USA 06
62505183100
|
$924.68 | ||
|
Available to order. Add to View Price |
|||
|
#41
SILENCER R/S USA
62505183000
|
|||
|
Unavailable |
|||
|
#42
RUBBER BUFFER
54308042000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLAMP FOR SILENCER CPL. 03
60005095000
|
$42.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
SILENCER/HANDLE HOLDER L/S 07
6000508500001S
|
$48.17 | ||
|
Available to order. Add to View Price |
|||
|
#45
SILENCER/HANDLE HOLDER R/S 07
6000508600001S
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#46
HH collar screw M8x25
0015080253
Superseded by 0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
TOOTH LOCK WASHER DIN6797-J
0797050000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
