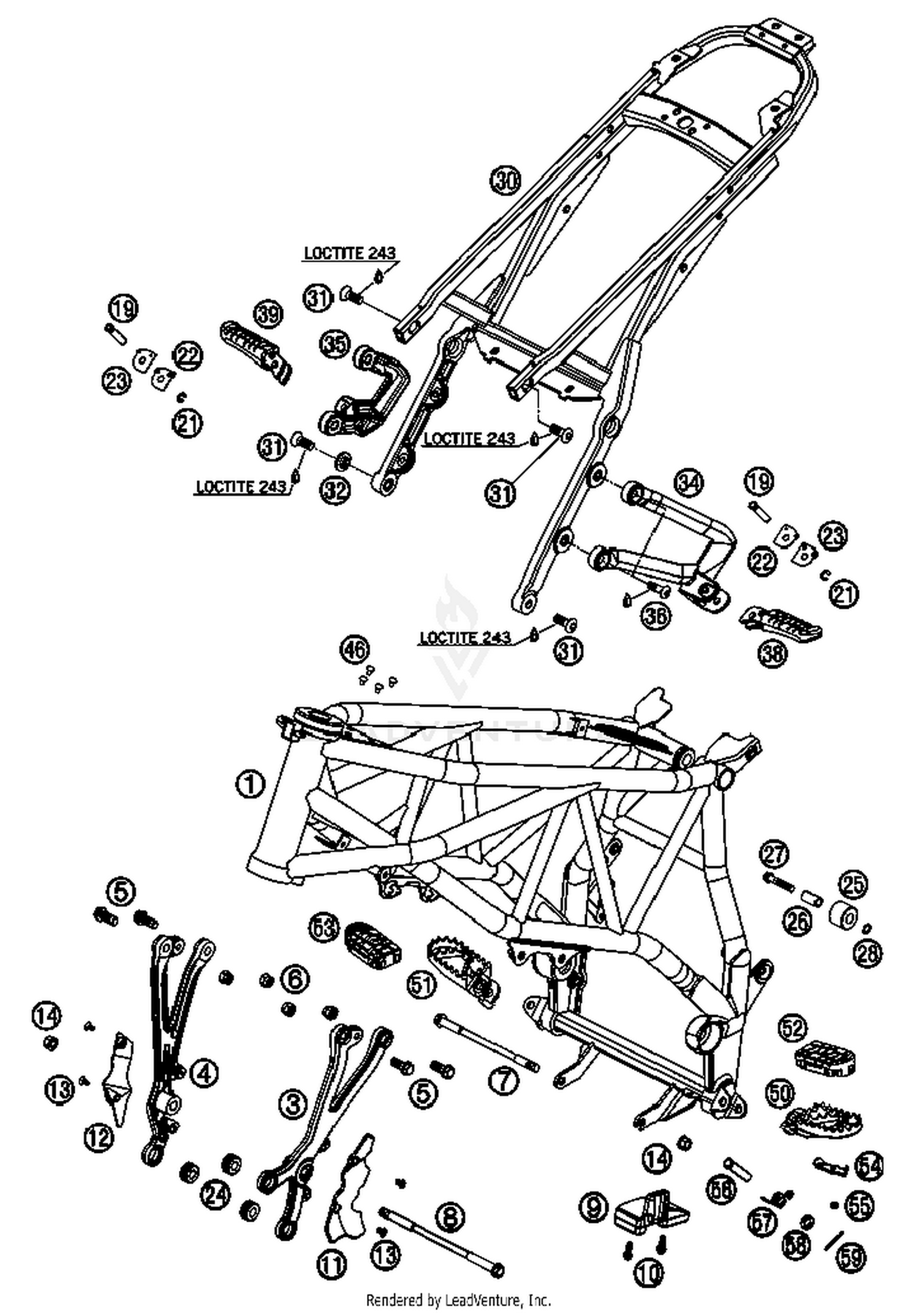

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME "FC07" MATT BLACK
6250300110033
|
|||
|
Unavailable |
|||
|
#3
ENGINE SUPPORT L/S 07
6250300500001S
|
$105.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
ENGINE SUPPORT R/S 07
6250300600001S
|
$105.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH COLLAR SCREW M10X24 WS=13
0015100243
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ENGINE BRAC. SCREW M10X172 03
60003013000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
ENGINE BRAC. SCREW M10X206 03
60003014000
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN SLIDING BLOCK 05
60004076100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW F. PLASTIC K60X20AL SW6
0017060204
Superseded by 0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER ENGINE SUPPORT LEFT 05
62503005050
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER ENGINE SUPPORT RIGHT 05
62503006050
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
FLAT H.SCEW DIN7991-M5X10 10.9
0991050102
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT FOR FOOTREST REAR 03
60003044000
|
$10.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
retaining washer DIN 6799 - 6
0799060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
ENGAGE PANEL FOOTREST L/S 03
60003152000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
ENGAGE PANEL FOOTREST R/S 03
60003052000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
RUBBER SLEEVE 03
60003098000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CHAIN ROLL 12X29X22,5 '98
58403060000
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSH CHAIN ROLL 8X12X23 '98
58403060065
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH COLLAR SCREW M8X40 TX40
0015080403
Superseded by 0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#28
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SUB FRAME 07
6250300200092
|
$525.19 | ||
|
Available to order. Add to View Price |
|||
|
#31
FL.HEAD SCREW M10X1,25 L=27 03
60003004027
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR BUSHING 10X15X25X4 03
60003001051
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#34
FOOTREST BRACKET REAR L/S 07
6250304800001S
|
$124.39 | ||
|
Available to order. Add to View Price |
|||
|
#35
FOOTREST BRACKET REAR R/S 07
6250304900001S
|
$117.48 | ||
|
Available to order. Add to View Price |
|||
|
#36
COUNTER-SUNK SCREW ISA45 M8X26
54510052100
Superseded by 0019080266S
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
FOOTREST CPL. L/S REAR 03
60003050000
|
$72.26 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTREST CPL. R/S REAR 03
60003051000
|
$72.81 | ||
|
Available to order. Add to View Price |
|||
|
#46
PLUG ZK 8/5 06
60103088000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#51
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#52
FOOTREST RUBBER FRONT L/S 03
60003040010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#53
FOOTREST RUBBER FRONT R/S 03
60003041010
|
$26.06 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLOSING PANEL FRONT L/S R/S 03
60003044010
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#55
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#57
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#58
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#59
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
