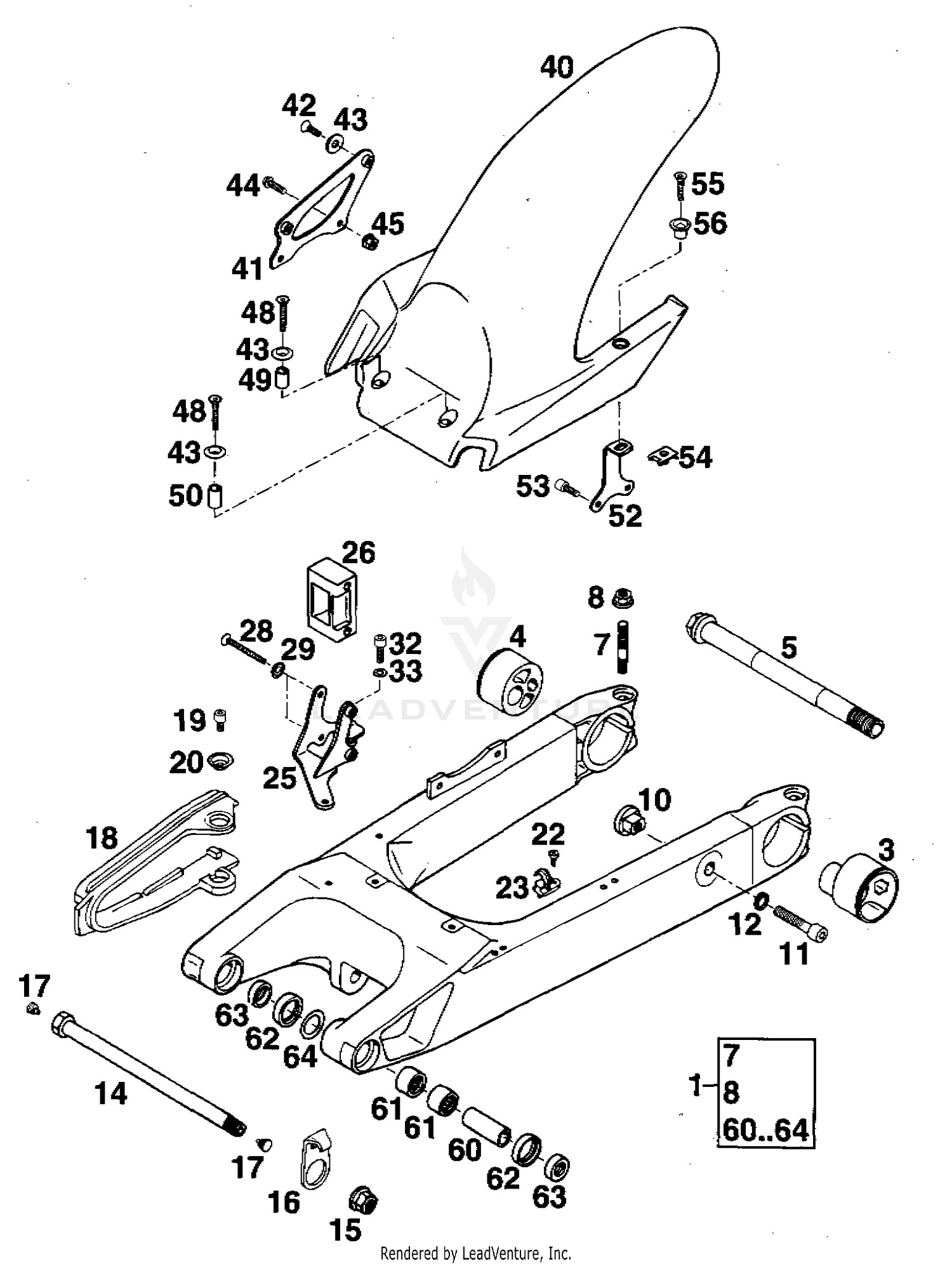

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGARH CPL.
58303230044
|
|||
|
Unavailable |
|||
|
#3
ECCENTRICS L/S '94
58303030011
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ECCENTRICS R/S '94
58303130011
|
$62.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
WHEEL SPINDLE REAR L=232MM '94
58310085000
|
$46.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
STUD DIN0835-M10X45
0835100456
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BRAKE CARRIER SUPPORT
58313050000
|
$17.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
AH-SCREW SELF LOCK
58313051000
|
|||
|
Unavailable |
|||
|
#12
PAIR OF WASHERS M10 NORDLOCK
50233041100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWINGARH BOLT
54603014000
|
|||
|
Unavailable |
|||
|
#15
SELF LOCKING NUT M14X1,5 WS=19
54603015000
|
$6.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE HOSE GUIDE '89
50230211000
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLASTIC CAP SFL10
54403135000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CHAIN SLIDING GUARD DUKE'94
58307073000
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
HH collar screw M6x12 TX30
0912060123
Superseded by 0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BUCKET
72210079000
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SPECIAL SCREW M 5,0X10
0010050103
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
RETAINING CLAMP FOR BRAKE HOSE
54611076000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BRACKET CHAIN GUIDE DUKE
58307068000
|
$49.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
CHAIN GUIDE DUKE'
51007066400
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#28
FLAT HEAD SCREW DIN7991-M 6X50
0991060503
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER 6MM
40006006000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
REARWHEEL COVER
58308015000
|
|||
|
Unavailable |
|||
|
#41
REARFENDER BRACKET
58303230058
|
|||
|
Unavailable |
|||
|
#42
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
SPECIAL WASHER 7X12,5X20 BLACK
58308045000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HH collar screw M6x20 TX30
0015060203
Superseded by 0025060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
SELF LOCKING NUT
56509064000
|
|||
|
Unavailable |
|||
|
#48
FLAT HEAD SCREW DIN7991-M 6X30
0991060303
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BUSHING
58308020100
|
|||
|
Unavailable |
|||
|
#50
BUSHING
58308020000
|
|||
|
Unavailable |
|||
|
#52
BRACKET
58303230057
|
|||
|
Unavailable |
|||
|
#53
A H SCREW
0912060153
|
|||
|
Unavailable |
|||
|
#54
clip nut M6
54603048100
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
FLAT HEAD SCREW DIN7991-M 6X25
0991060253
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
WASHER
58308047000
|
|||
|
Unavailable |
|||
|
#60
BUSHING SLEEVE 15X20X38,75
50203081700
|
$20.23 | ||
|
Available to order. Add to View Price |
|||
|
#61
NEEDLE BUSH HK 2012
50203097000
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#62
radial shaft seal 25x32x7
0760253270
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#63
BUCKET F.SHAFTSEALRING 15X25X9
54603090000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#64
stop disc 22.2/31.7/1
54603036000
Superseded by 63533032000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
