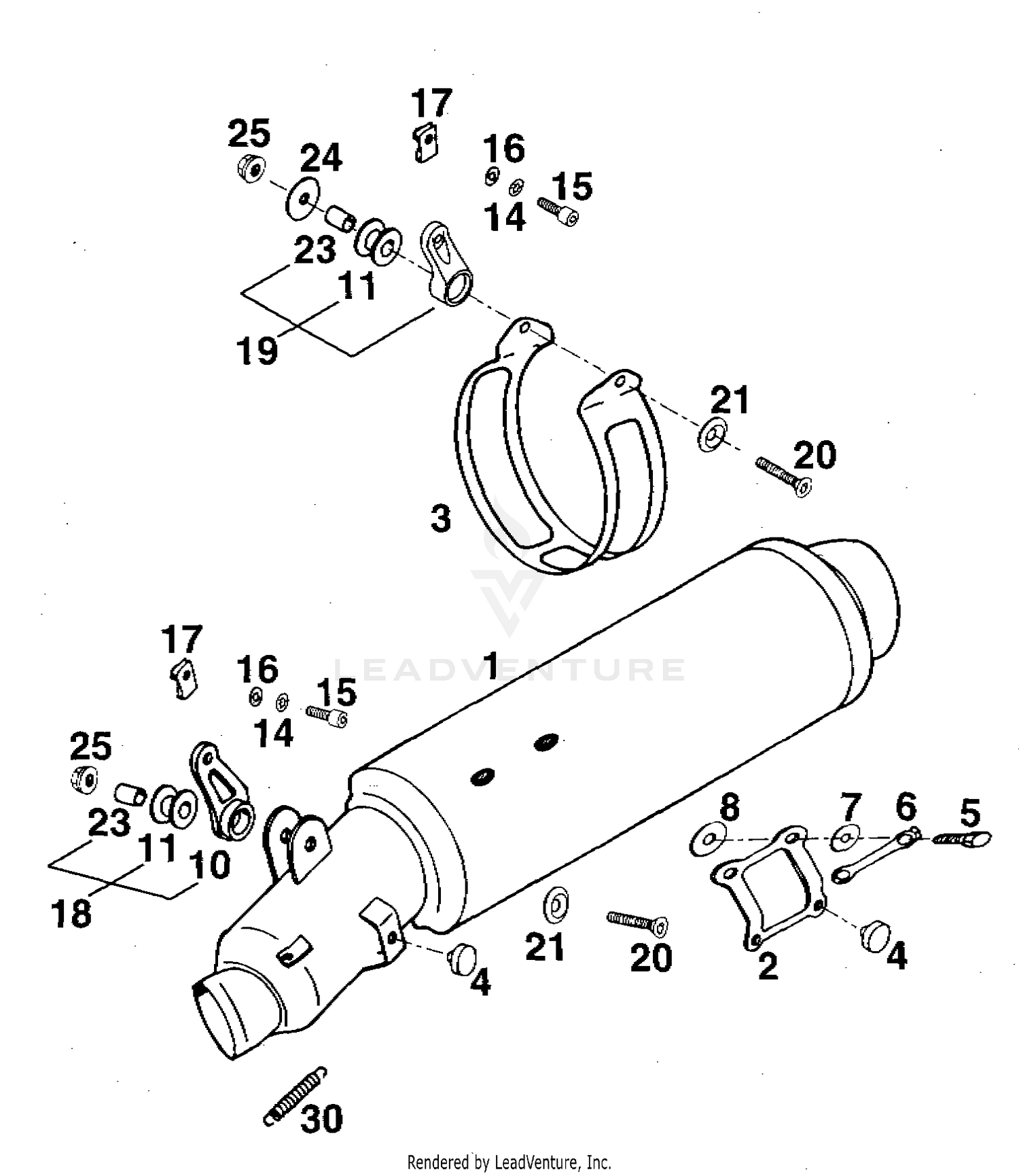

Exhaust Silencer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SILENCER
58305180000
|
|||
|
Unavailable |
|||
|
#2
HEAT PROTECTOR
58305050200
|
|||
|
Unavailable |
|||
|
#3
CLAMP
58305161000
|
|||
|
Unavailable |
|||
|
#4
RUBBER BUFFER
54308042000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
H H SCREW
0933080201
|
|||
|
Unavailable |
|||
|
#6
BRACKET
58305162000
|
|||
|
Unavailable |
|||
|
#7
HASHER
53032068000
|
|||
|
Unavailable |
|||
|
#8
CU-SEAL RING 8 X 16 X 1
56530080000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SILENCER BRACKET
58305165000
|
|||
|
Unavailable |
|||
|
#11
damp. component silicone grey
54305068100
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
clip nut M6
54603048100
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SILENCER BRACKET
58305165044
|
|||
|
Unavailable |
|||
|
#19
SILENCER BRACKET CPL. SHORT
58305165144
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPECIAL WASHER ALU 8 X 24 MM
58303061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER BUSHING 8,4X12X16
56505069000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER DIN9021-A 8,4
0021080003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SELF LOCKING NUT
54310086000
|
|||
|
Unavailable |
|||
|
#30
TENSION SPRING L=55MM
51005063000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
