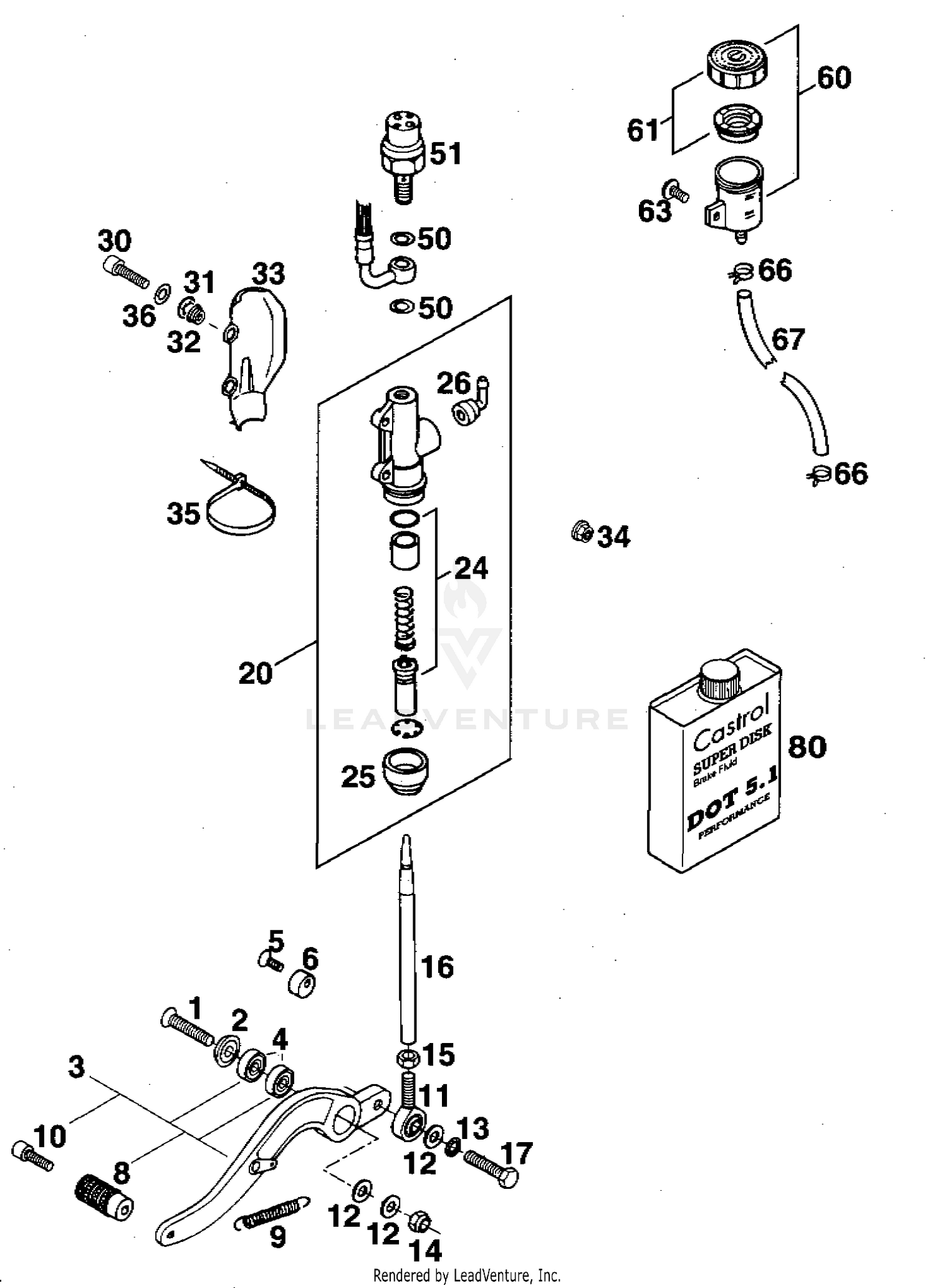

Rear Brake Control Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLAT HEAD SCREW DIN7991-M 8X35
0991080353
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPECIAL WASHER ALU 8 X 24 MM
58303061000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRAKE PEDAL CPL.
58303060144
|
|||
|
Unavailable |
|||
|
#4
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FLAT HEAD DIN7991-M 6X20
0991060203
Superseded by 0991060202
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BRAKE LEVER STOP '93
58303063000
|
$7.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE LEVER PEDAL DUKE'94
58303060051
|
$17.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RETURN SPRING
13003062000
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HEIM JOINT M8 W=12MM '93
58303062000
|
$45.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
TOOTHLOCK WASHER DIN6797-J 8,4
0797080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SELF LOCKING NUT DIN0985-M 8
0985080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PRESSURE ROD
58303168000
|
|||
|
Unavailable |
|||
|
#17
HH SCREW DIN0933-M 8X25
0933080253
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
MAIN BRAKE CYLINDER
54513101044
Superseded by 54513101144
|
$149.09 | ||
|
Unavailable |
|||
|
#24
REPAIR KIT PISTON 13MM
54513150000
|
$54.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER SLEEVE
54513151000
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#26
ANGLE PIECE
54513155000
|
$17.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
AH SCREW DIN0912-M 6X25
0912060253
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COLLAR BUSHING
50213161000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BRAKE CYL. PROTECTOR ''BREMBO''
54513038000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
SELF LOCKING NUT
56509064000
|
|||
|
Unavailable |
|||
|
#35
PLASTIC BAND
44011176305
|
|||
|
Unavailable |
|||
|
#36
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BRAKE LIGHT SWITCH
42013121000
|
$37.76 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRAKE FLUID RESERVOIR '89
54513030044
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#61
SCREW CAP
54513031044
|
|||
|
Unavailable |
|||
|
#63
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
YDNAC CLAMP 10101 (10,4MM)
58007017000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#67
Hose reservoir 6x1,5
58007016101
Superseded by 57313072001
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#80
BRAKE FLUID
06054
|
|||
|
Unavailable |
|||
