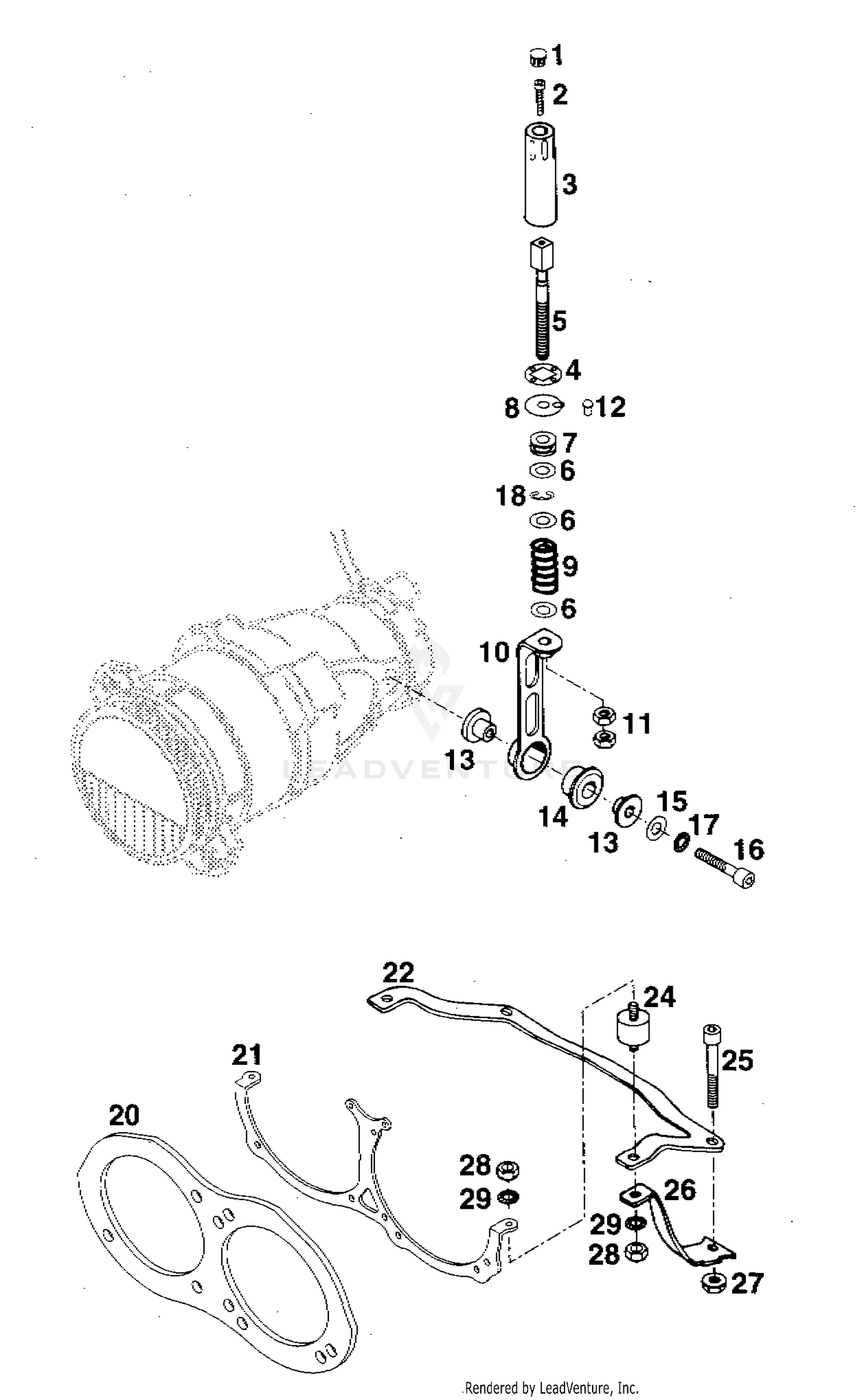

Head Light Support Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG 3/8"
58301098100
|
|||
|
Unavailable |
|||
|
#2
AH SCREW DIN0912-M 4X16
0912040163
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ADJUSTING BUTTON
58311049003
|
|||
|
Unavailable |
|||
|
#4
ARRESTING WASHER
58311049008
|
|||
|
Unavailable |
|||
|
#5
SHAFT
58311049002
|
|||
|
Unavailable |
|||
|
#6
washer DIN 125 A -8.4
0125080003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
rubber grommet D=8mm open
31008060000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SUPPORT HASHER
58311049009
|
|||
|
Unavailable |
|||
|
#9
TENSIONING SPRING 1 X 12 X 35
58311049007
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT
58311049000
|
|||
|
Unavailable |
|||
|
#11
HEXAGON NUT DIN0936-M 8
0936080003
|
$0.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
PRESSURE PIECE
58303050054
|
|||
|
Unavailable |
|||
|
#13
BUSHING
54635036000
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
rubber bushing
56401040000
|
$6.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER DIN9021-A 6,4
0021060003
|
$2.99 | ||
|
Unavailable |
|||
|
#16
AH SCREW DIN0912-M 6X35
0912060353
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAB WASHER DIN6799-RS 7,0
0799070000
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEADLIGHT COVER DUKE'94
58311009000
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
HEADLIGHT CARRIER
58311045000
|
|||
|
Unavailable |
|||
|
#22
HEADLIGHT SUPPORT
58311047000
|
|||
|
Unavailable |
|||
|
#24
RUBBER GROMMET 20X15-M6X10 (2)
54335031000
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
AH SCREW DIN0912-M 6X50
0912060503
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#26
HEADLIGHT SUPP.L/S
58311147000
|
|||
|
Unavailable |
|||
|
#
HEADLIGHT SUPP.R/S
58311147001
|
|||
|
Unavailable |
|||
|
#21
SELF LOCKING NUT
56509064000
|
|||
|
Unavailable |
|||
|
#28
hex nut DIN 934 M6
0934060003
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOOTH LOCK WASH. DIN6797-A 6,4
0797060003
|
$1.99 | ||
|
Unavailable |
|||
