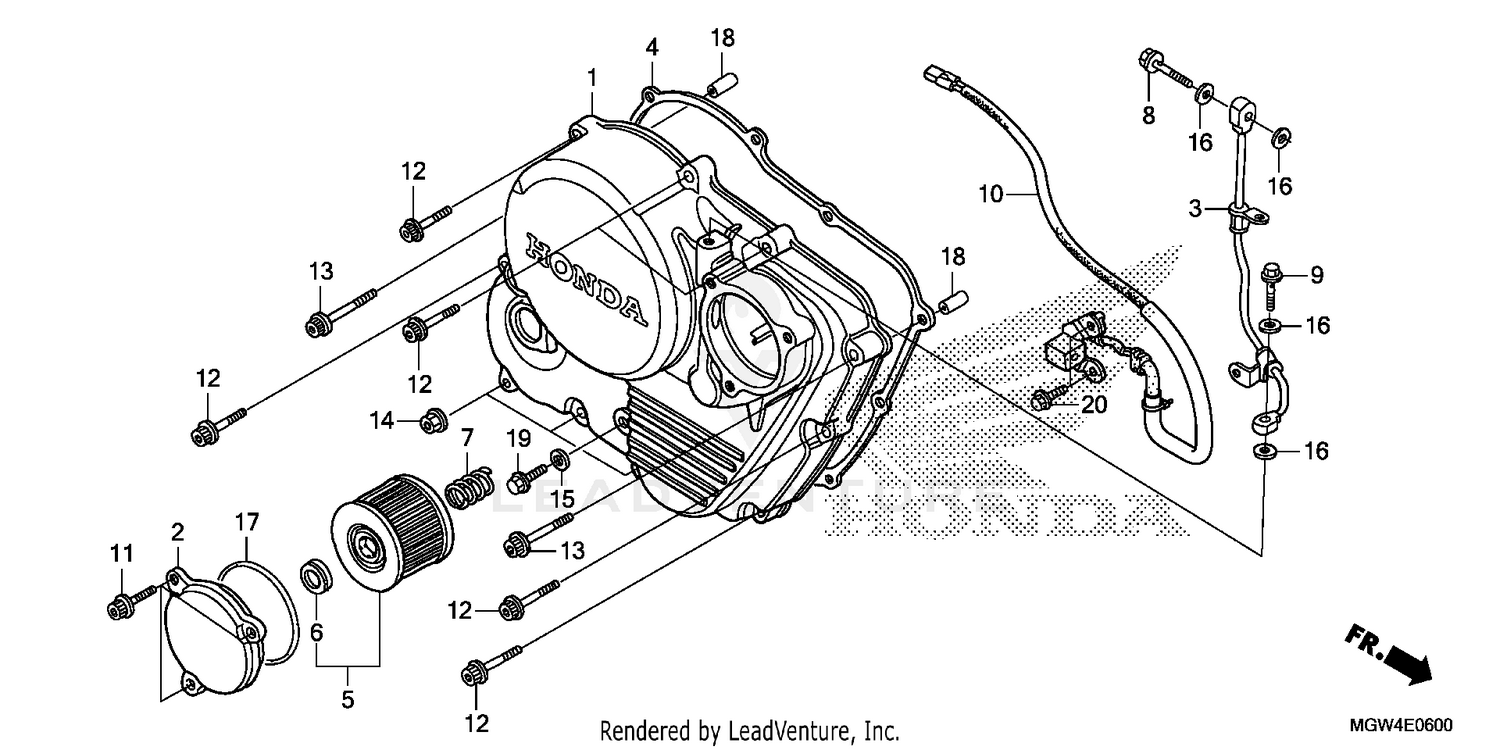

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-MY2-620
|
$344.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL FILTER
11333-MN1-870
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, OIL PASSAGE
11335-MN9-000
|
$75.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
11394-MY2-623
Superseded by 11394-MY2-624
|
$35.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
11394-MY2-624
|
$35.09 | ||
|
Unavailable |
|||
|
#5
ELEMENT, OIL FILTER
15410-KF0-305
Superseded by 15410-KF0-315
|
$7.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ELEMENT, OIL FILTER
15410-KF0-315
|
$7.35 | ||
|
Unavailable |
|||
|
#5
ELEMENT, OIL FILTER
15412-KF0-010
Superseded by 15410-KF0-315
|
$7.35 | ||
|
Unavailable |
|||
|
#6
RUBBER, FILTER
15413-MC8-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPRING, OIL FILTER ELEMENT SETTING
15414-KF0-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (8X30)
15531-KN8-730
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (8X30)
15532-MA6-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
GENERATOR ASSY., IGNITION PULSE (TOYO)
30300-MY6-671
|
$87.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X25) (NSHF)
90004-GHB-670
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X40) (NSHF)
90004-GHB-710
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET (SHOWA)
90544-439-930
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (54X2.4) (ARAI)
91302-KF0-003
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, DOWEL (8X20) (Honda Code 1417369)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
