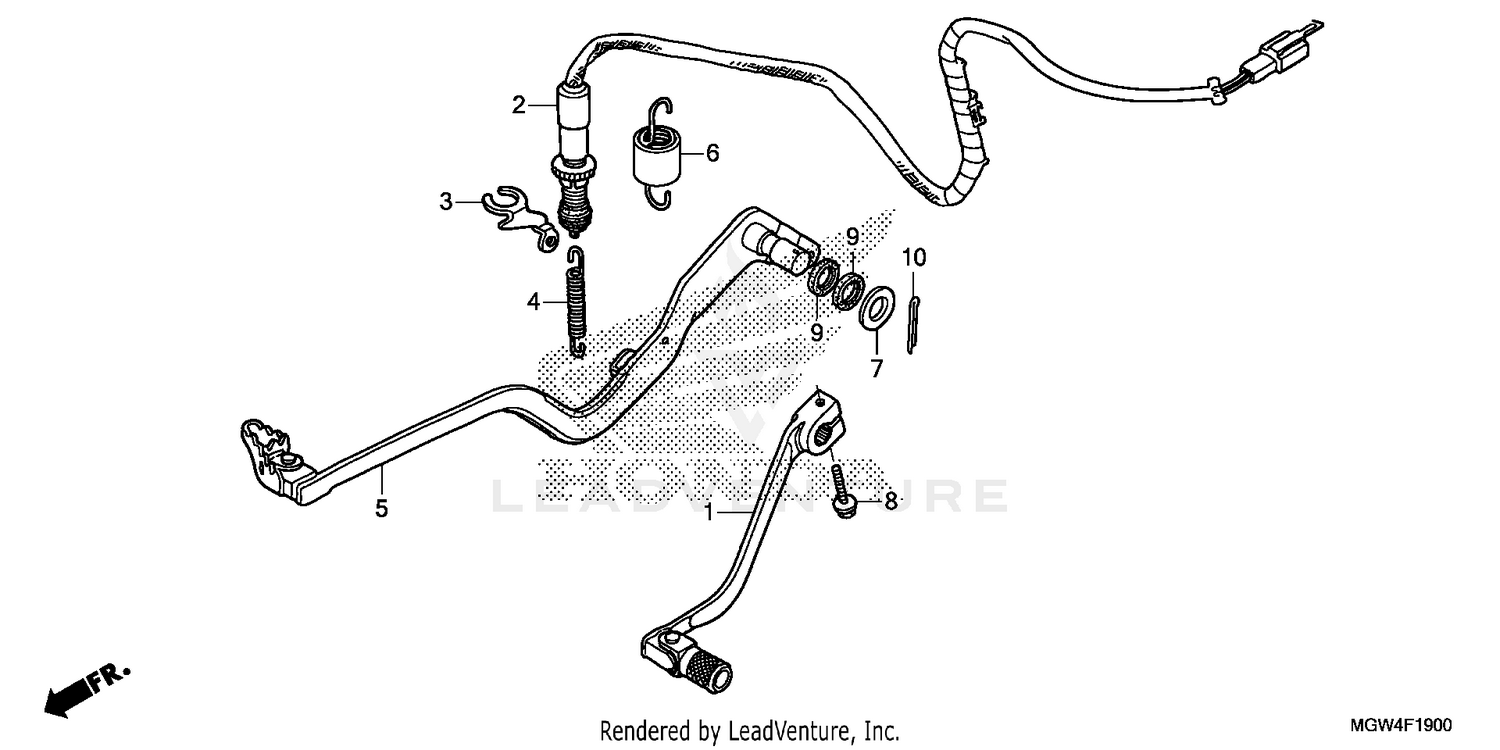

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE (COO)
24700-MGW-305
|
$129.15 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, CHANGE (COO)
24700-MY6-670
Superseded by 24700-MGW-305
|
$129.15 | ||
|
Unavailable |
|||
|
#2
SWITCH ASSY., RR. STOP
35350-MY6-671
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, RR. STOP SWITCH
35356-MN9-000
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, STOP SWITCH
35357-ME9-000
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL ASSY., BRAKE (COO)
46500-MGW-305
|
$143.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
PEDAL ASSY., BRAKE (COO)
46500-MY6-670
Superseded by 46500-MGW-305
|
$143.20 | ||
|
Unavailable |
|||
|
#6
SPRING ASSY., BRAKE PEDAL
46515-MN1-680
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH, WASHER
53312-657-000
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X20)
90102-MN1-670
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
