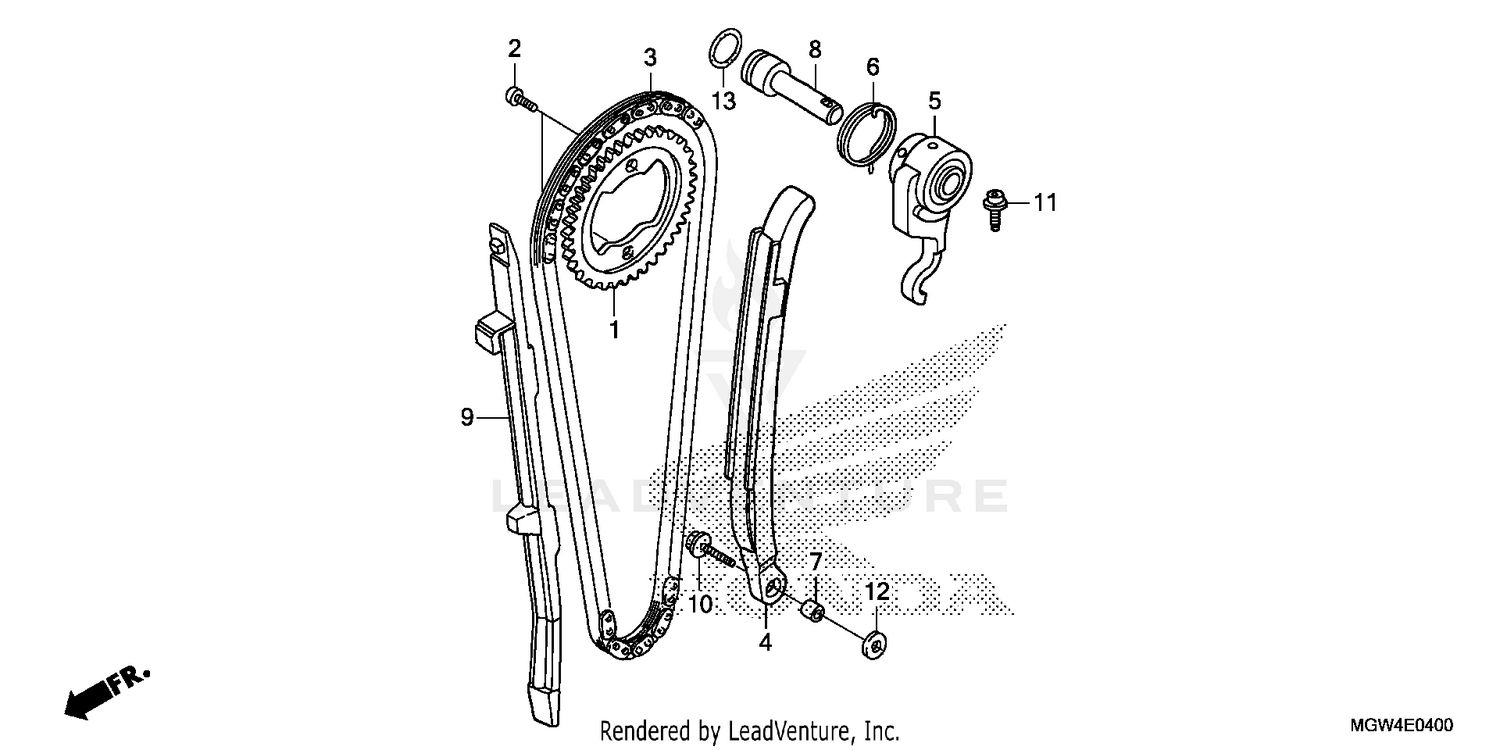

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (38T)
14321-MN1-670
|
$47.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, SPECIAL KNOCK (7X9.5)
14322-MAN-620
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, CAM (118L) (BORG WARNER)
14401-MN1-671
|
$159.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
TENSIONER, CAM CHAIN
14511-MN9-003
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LIFTER, DAMPER
14512-MG3-000
|
$83.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CAM CHAIN TENSIONER
14514-MG3-000
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, TENSIONER (6X7.1)
14515-MN9-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, TENSIONER LOCK
14516-MN1-670
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CAM CHAIN
14620-MN9-870
|
$62.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X25) BOLT, FLANGE (6X28)
90003-MM4-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE SOCKET (6X20)
90097-MY6-880
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, DRUM STOPPER
90417-360-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (14.5X2.4) (ARAI)
91303-MG2-792
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
