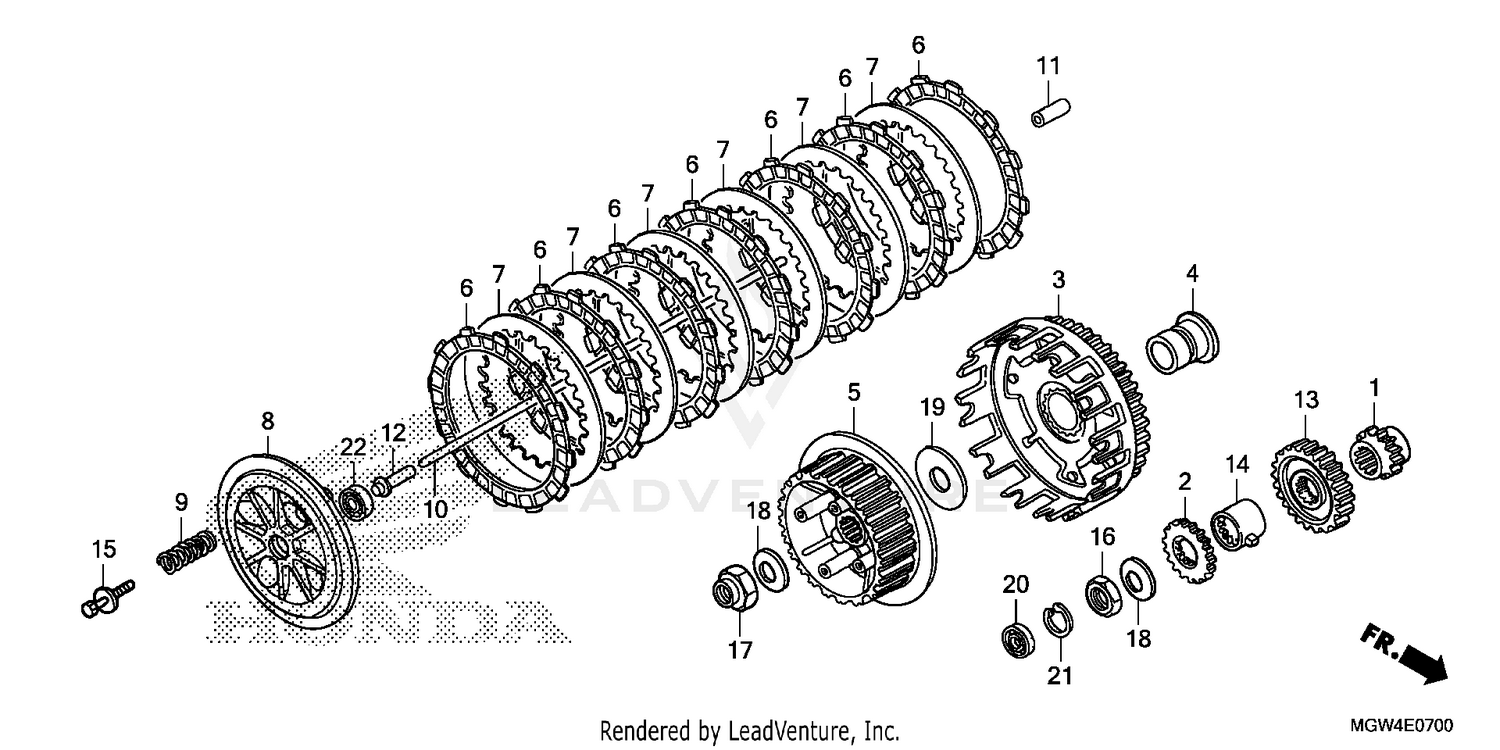

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, TIMING (19T)
14312-MN1-670
|
$57.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PUMP DRIVE (28T)
15130-MN1-670
|
$58.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH OUTER
22100-MN9-000
|
$546.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, CLUTCH (OUTER)
22116-MN1-670
|
$26.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH (28T)
22120-KN8-000
|
$155.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MY6-670
|
$25.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH
22321-MG3-000
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH PRESSURE
22350-MG3-000
|
$108.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-MK2-003
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CLUTCH LIFTER
22850-MG3-000
|
$45.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, CLUTCH LIFTER ROD
22852-MK5-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
LIFTER, CLUTCH
22853-KN8-000
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, PRIMARY DRIVE (34T)
23121-MN9-000
|
$139.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOSS, PULSER
30220-MK5-000
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X25)
90022-MM5-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT (18MM)
90235-MN1-670
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (18MM)
90236-HA0-000
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK
90432-428-000
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (22MM)
90452-471-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL (14X22X5) (ARAI)
91201-HM3-A61
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
CIRCLIP (INNER) (24MM)
94520-24000
|
$1.27 | ||
|
Unavailable |
|||
|
#22
BEARING, RADIAL BALL (6001)
96100-60010-00
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
