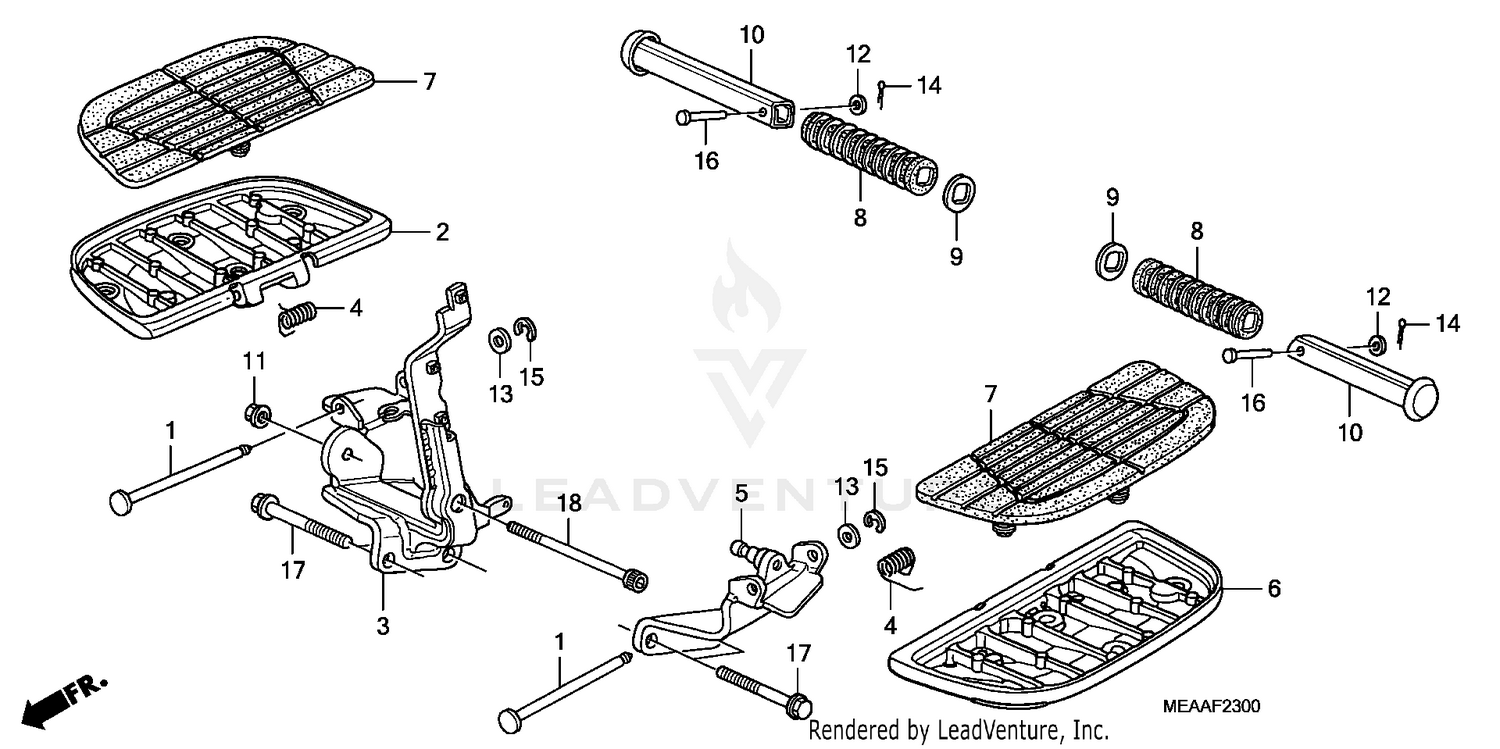

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP JOINT
50603-MBH-000
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOARD, R. STEP (COO)
50612-MEA-671
Superseded by 50612-MFY-305
|
$130.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, R. STEP
50615-MEA-670
|
$113.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, STEP RETURN
50617-MEA-670
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, L. STEP
50625-MEA-670
|
$110.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOARD, L. STEP
50642-MEA-671
|
$130.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, MAIN STEP (COO)
50661-MCV-000
Superseded by 50661-MFY-305
|
$69.38 | ||
|
Unavailable |
|||
|
#8
RUBBER, PILLION FOOTPEG
50710-377-000
Superseded by 50716-371-660
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PILLION FOOTPEG
50712-413-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, PILLION STEP (COO)
50715-MFR-305
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, PILLION STEP (COO)
50715-MN0-000
Superseded by 50715-MFR-305
|
$25.73 | ||
|
Unavailable |
|||
|
#11
NUT, FLANGE (8MM)
90309-MR1-770
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#12
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (8MM)
94102-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, COTTER (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
E-RING (7MM) (Honda Code 2771319)
94540-07029
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN A, PILLION STEP
95015-81000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X50)
95701-10050-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (8X125)
96600-08125-07
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
