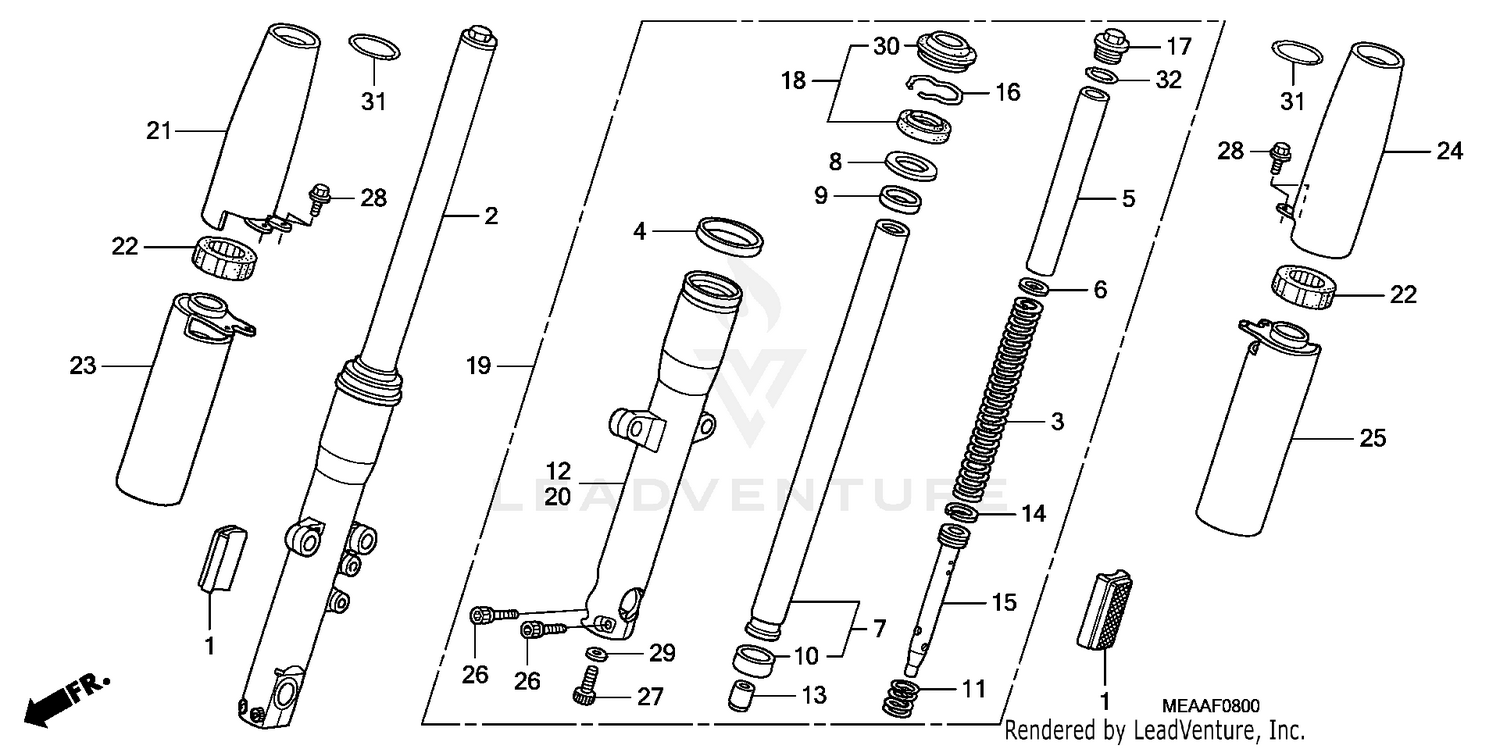

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, FR. REFLEX
33740-MEA-671
|
$36.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK ASSY., R. FR.
51400-MEA-671
|
$444.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, FR. FORK
51401-MEA-671
|
$60.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, CASE
51402-MEA-671
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, SPRING (SHOWA)
51402-MN0-003
|
$24.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, SPRING JOINT
51404-MB4-003
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, FR. FORK
51410-MEA-671
|
$149.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, BACK-UP (SHOWA)
51412-MB4-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, GUIDE (SHOWA)
51414-KCR-003
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SLIDER (SHOWA)
51415-KCR-003
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, REBOUND
51416-MEA-671
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, R. (LOWER)
51420-MEA-671
|
$267.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, OIL LOCK (SHOWA)
51432-MV9-003
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, PISTON (SHOWA)
51437-MN5-003
|
$10.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, SEAT
51440-MEA-671
|
$16.72 | ||
|
Unavailable |
|||
|
#16
RING, OIL SEAL STOPPER (SHOWA)
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FR. FORK
51454-MM9-671
|
$46.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL SET, FR. FORK (SHOWA)
51490-MN8-305
|
$42.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
FORK ASSY., L. FR.
51500-MEA-671
|
$505.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
CASE, L. (LOWER)
51520-MEA-671
|
$252.30 | ||
|
Unavailable |
|||
|
#21
COVER, R. FR. FORK TOP
51610-MEA-670
|
$108.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
MOUNT, FR. FORK COVER
51611-MBA-000
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, R. FR. FORK (LOWER)
51620-MEA-670
|
$136.51 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, L. FR. FORK TOP
51660-MEA-670
|
$98.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, L. FR. FORK (LOWER)
51670-MEA-670
|
$136.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SOCKET (8X35)
90109-MCR-D00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (8MM) (SHOWA)
90116-KV3-701
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
90123-MBA-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPECIAL (8MM) (SHOWA)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
DUST SEAL
91254-MM8-003
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (39.5X5)
91305-MC7-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (21.7X3.5) (SHOWA)
91356-KF0-003
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
