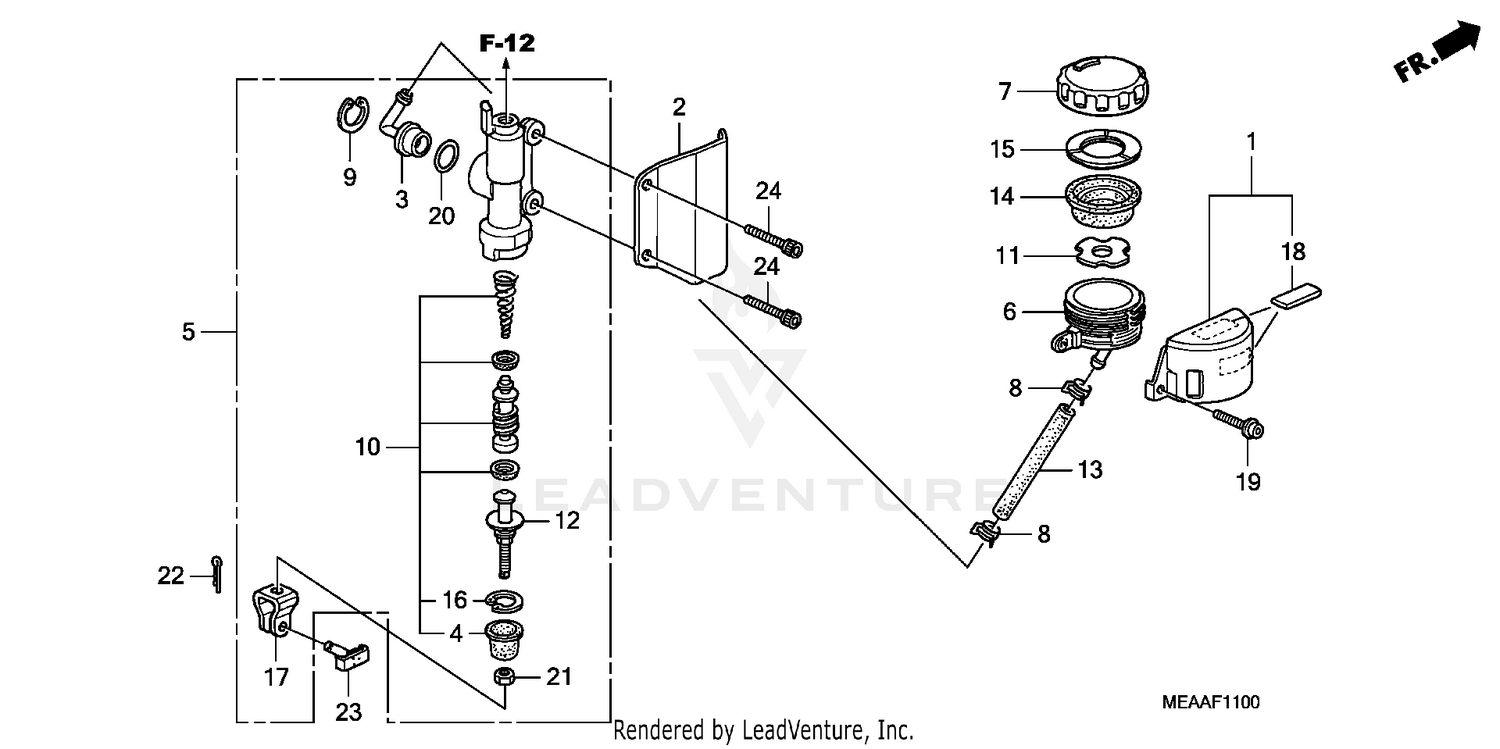

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. BRAKE OIL CUP
21341-MEA-670
|
$21.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, STOP SWITCH
21342-MEA-670
|
$14.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNECTOR, MASTER CYLINDER
43503-KS6-701
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER CYLINDER SUB-ASSY., RR.
43510-MEA-902
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, OIL (NISSIN)
43511-MR7-016
|
$37.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP, RR. MASTER CYLINDER (FOR FR.)
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLOAT, RR. MASTER CYLINDER
43523-MAH-671
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, PUSH
43530-KV3-701
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, MASTER CYLINDER OIL
45512-MCJ-006
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD
46504-MAH-671
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION, NUMBER PLATE
84703-KC2-960
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE SOCKET (6X20)
90097-MY6-880
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, SOCKET (6X25)
96600-06025-07
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
