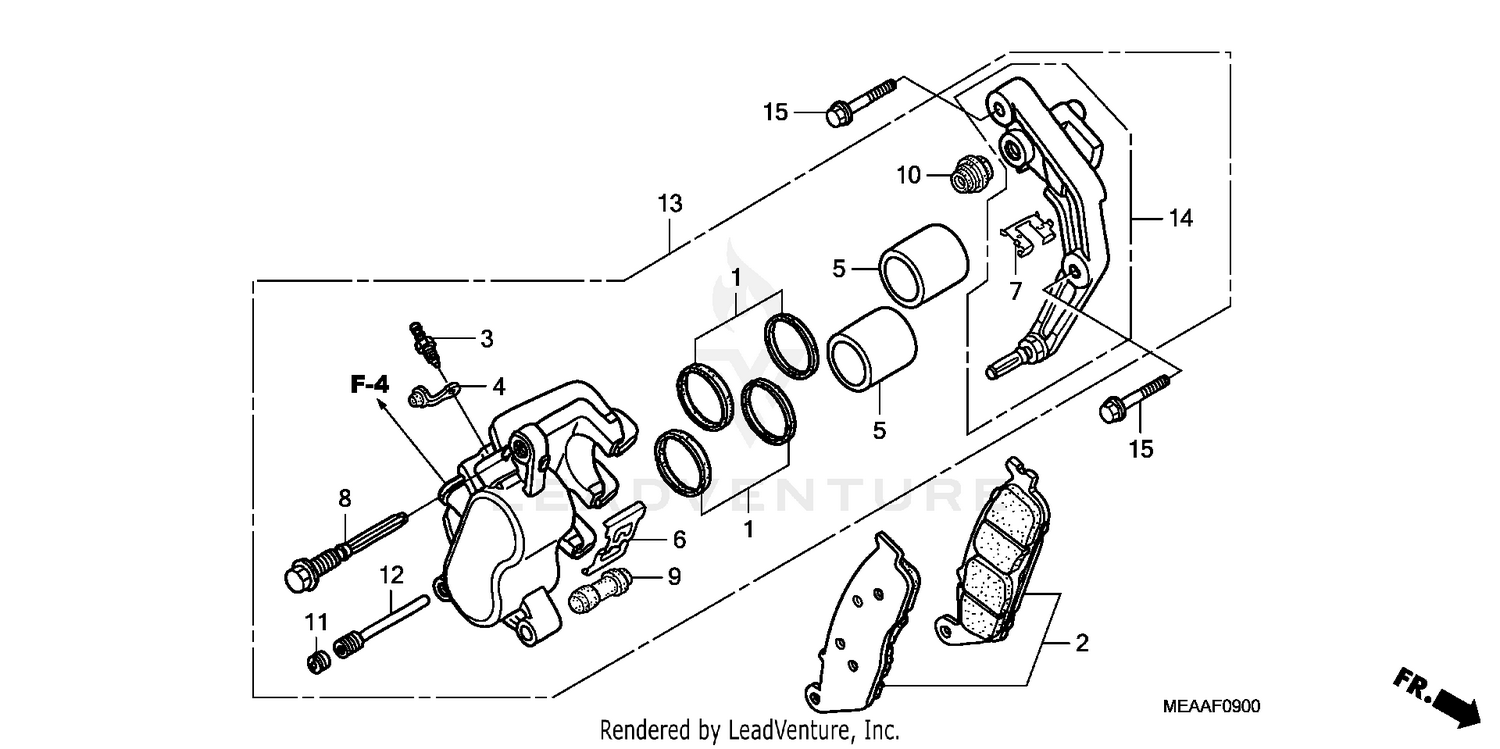

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)
06451-GE2-405
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, FR.
06455-MEA-672
Superseded by 06455-MEA-673
|
$72.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-HC5-971
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON (NISSIN)
45107-MN5-006
|
$45.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD (NISSIN)
45108-ML7-922
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-MAA-006
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, BOLT
45131-MA3-006
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN, HANGER (NISSIN)
45215-ML7-922
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., R. FR. (NISSIN)
45250-MEM-671
|
$320.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET SUB-ASSY., R. FR.
45290-MEA-671
|
$49.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL FLANGE (8X50)
90131-MEA-670
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
