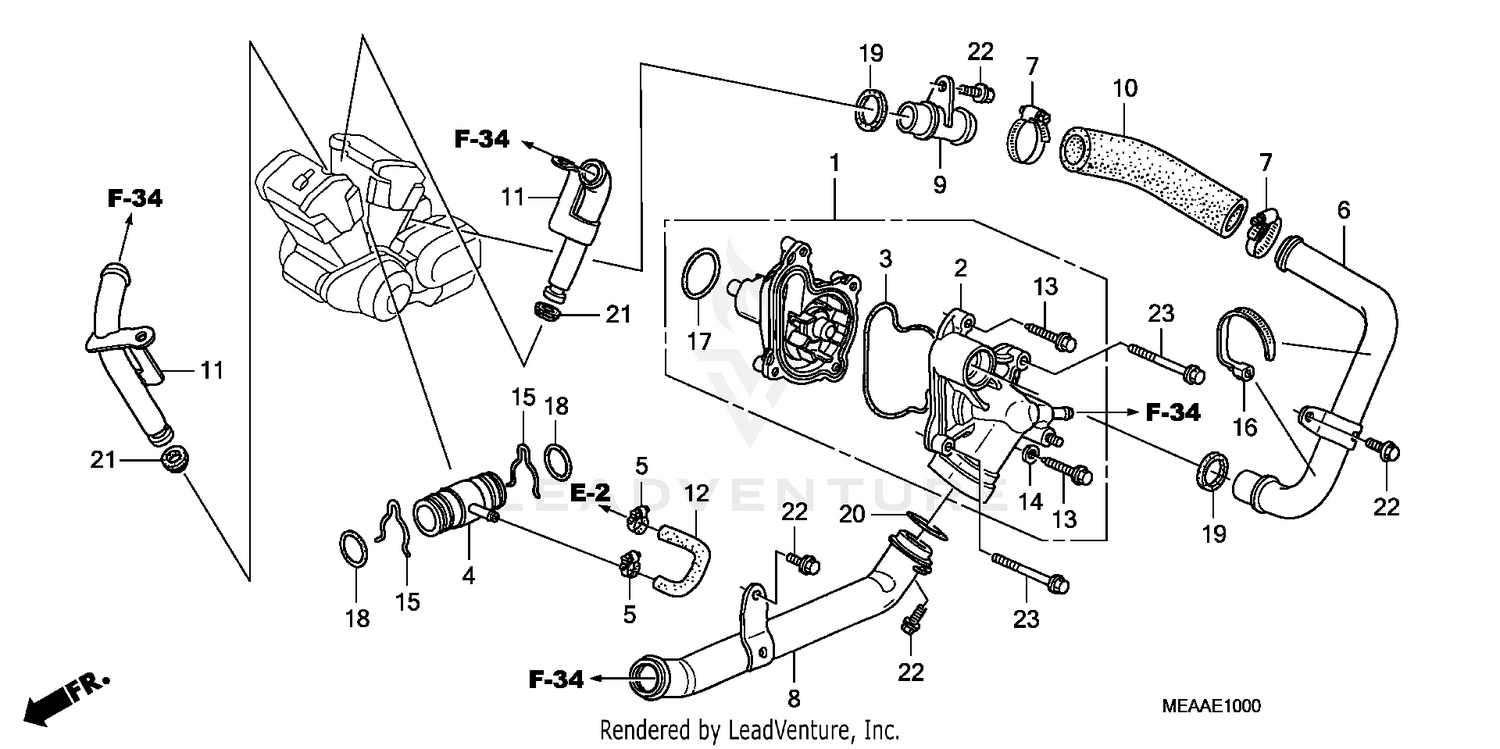

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WATER PUMP ASSY.
19200-MEA-670
|
$294.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, WATER PUMP
19220-MEA-670
|
$129.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, WATER PUMP COVER
19226-MEA-670
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, WATER (FR/RR)
19505-MEA-670
|
$28.42 | ||
|
Unavailable |
|||
|
#5
CLAMP, WATER HOSE
19507-MAL-600
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE A, WATER
19510-MEA-670
|
$23.03 | ||
|
Unavailable |
|||
|
#7
CLAMP, WATER HOSE
19516-MB6-000
|
$16.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE B, WATER
19520-MEA-670
|
$33.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE C, WATER
19524-MCH-000
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, IN. WATER
19526-MEA-670
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, OUTLET WATER
19530-MEA-670
|
$25.81 | ||
|
Unavailable |
|||
|
#12
HOSE A, IN. MANIFOLD
19551-MEA-670
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X25)
90121-MV9-670
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLIP, RING (24MM)
90601-MCH-000
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (23.5X2.2)
91311-MCH-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, WATER PIPE
91315-MB0-013
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (27X3.1) (FRAME NO.)
91315-MCH-000
Superseded by 91315-MCH-003
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (27X3.1) (FRAME NO.)
91315-MCH-003
|
$5.45 | ||
|
Unavailable |
|||
|
#21
SEAL, WATER PIPE (ARAI)
91315-ME9-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
