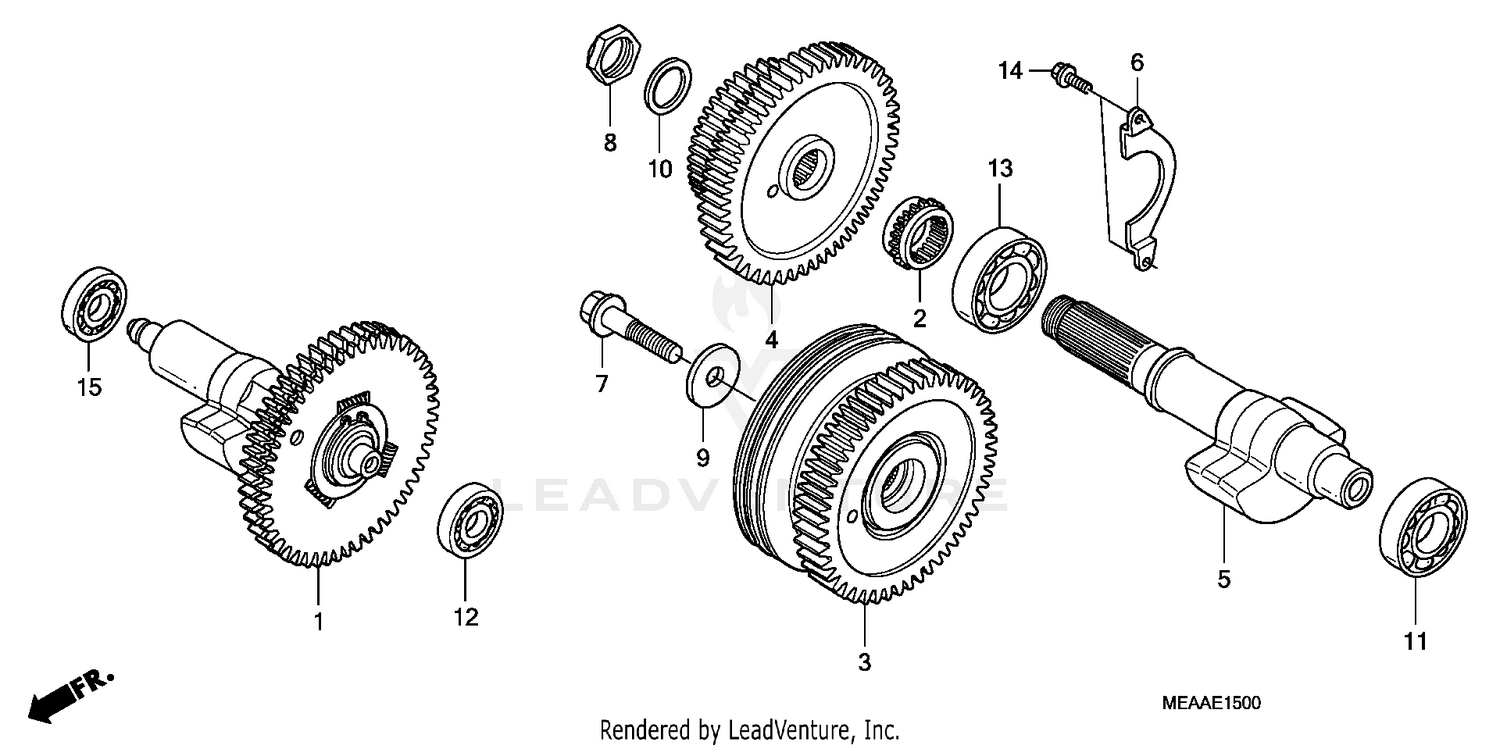

Balancer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT ASSY., FR. BALANCER (47T)
13400-MEM-670
|
$399.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, OIL PUMP DRIVE (21T)
15131-MEA-670
|
$54.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER ASSY., PRIMARY (47T)
23110-MEA-671
Superseded by 23110-MEA-672
|
$436.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER ASSY., PRIMARY (47T)
23110-MEA-672
|
$436.84 | ||
|
Unavailable |
|||
|
#4
GEAR, PRIMARY (47T/31T)
23131-MEA-670
|
$135.16 | ||
|
Unavailable |
|||
|
#5
SHAFT, RR. BALANCER
23150-MEM-670
|
$245.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE B, BEARING SETTING
23153-MCH-000
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (12X45)
90023-MBT-010
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, LOCK (25MM)
90231-MCH-000
|
$8.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER (12.2X40X5)
90402-MBA-A40
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING (25MM)
90432-MEA-670
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (63/22U) (KOYO)
91002-MCH-003
|
$31.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (6204U SPL.) (KOYO)
91011-HN2-004
|
$19.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6305U)
91024-MEA-671
|
$25.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
