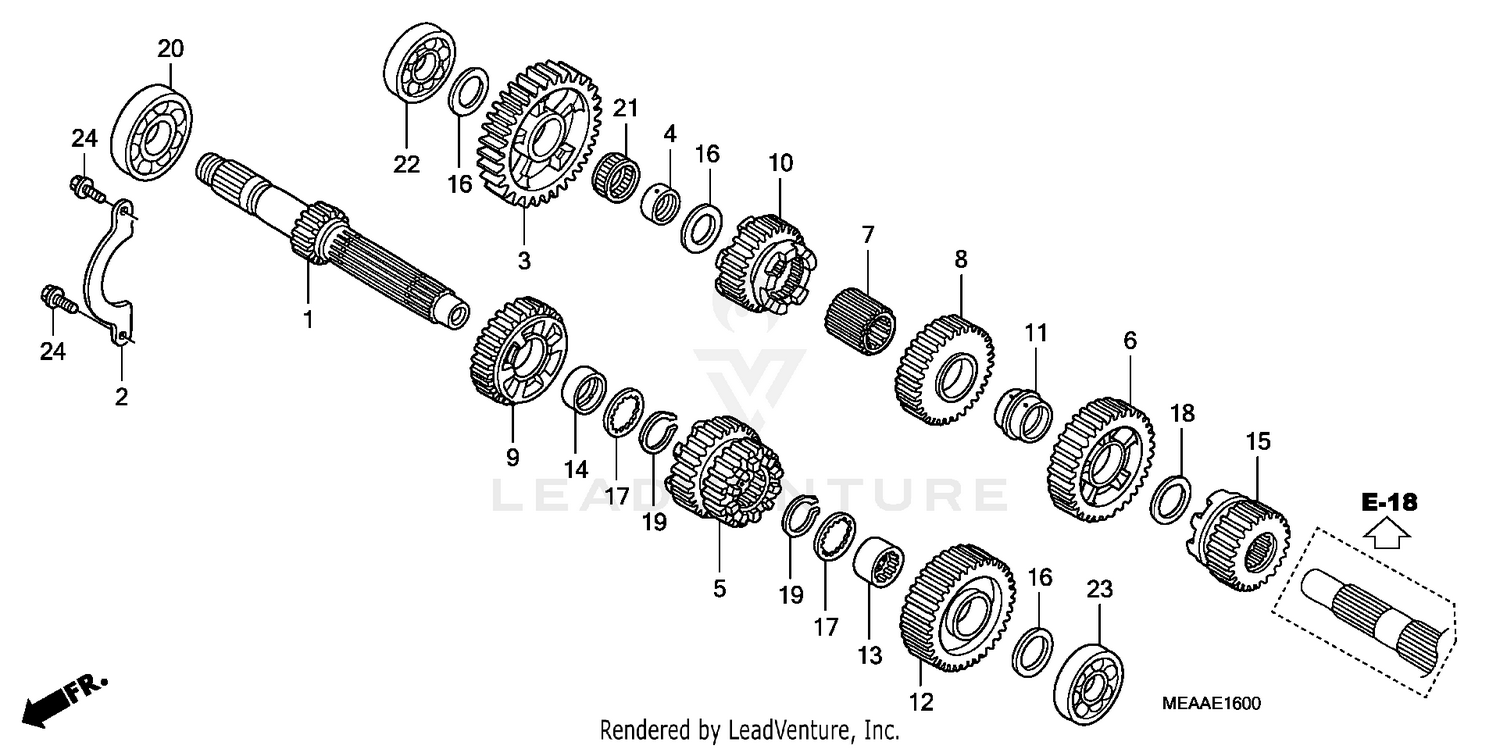

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (20T)
23210-MEA-670
|
$198.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE A, BEARING SETTING
23212-MCH-000
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, COUNTERSHAFT FIRST (38T)
23421-MEA-A50
|
$139.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
23422-MCH-000
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, MAINSHAFT SECOND & THIRD (26T/34T)
23431-MEA-A50
|
$167.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (32T)
23441-MEA-A50
|
$127.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, SPLINE
23442-MCH-010
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (31T)
23461-MEA-670
|
$104.26 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT FOURTH (36T)
23471-MEA-670
|
$117.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (28T)
23481-MEA-A50
|
$144.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
23482-MCH-000
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, MAINSHAFT FIFTH (33T)
23491-MEA-670
|
$106.62 | ||
|
Unavailable |
|||
|
#13
COLLAR, SPLINE (28X22.7)
23492-MCH-000
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (28X13)
23495-MM5-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, COUNTERSHAFT FIFTH (23T)
23501-MEA-A50
|
$132.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SWINGARM SIDE
52143-KZ3-860
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPLINE (28X34X1.5)
90452-MR7-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (30X38X1)
90501-752-A10
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (28MM)
90603-MN4-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (63/28) (FUJIKOSHI)
91001-KY0-891
|
$25.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (26X30X13)
91001-MCH-003
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (63/22)
91001-MN8-911
Superseded by 91002-KY4-901
|
$29.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (63/22)
91002-KY4-901
|
$29.53 | ||
|
Unavailable |
|||
|
#23
BEARING, RADIAL BALL (63/22U) (KOYO)
91002-MCH-003
|
$31.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
