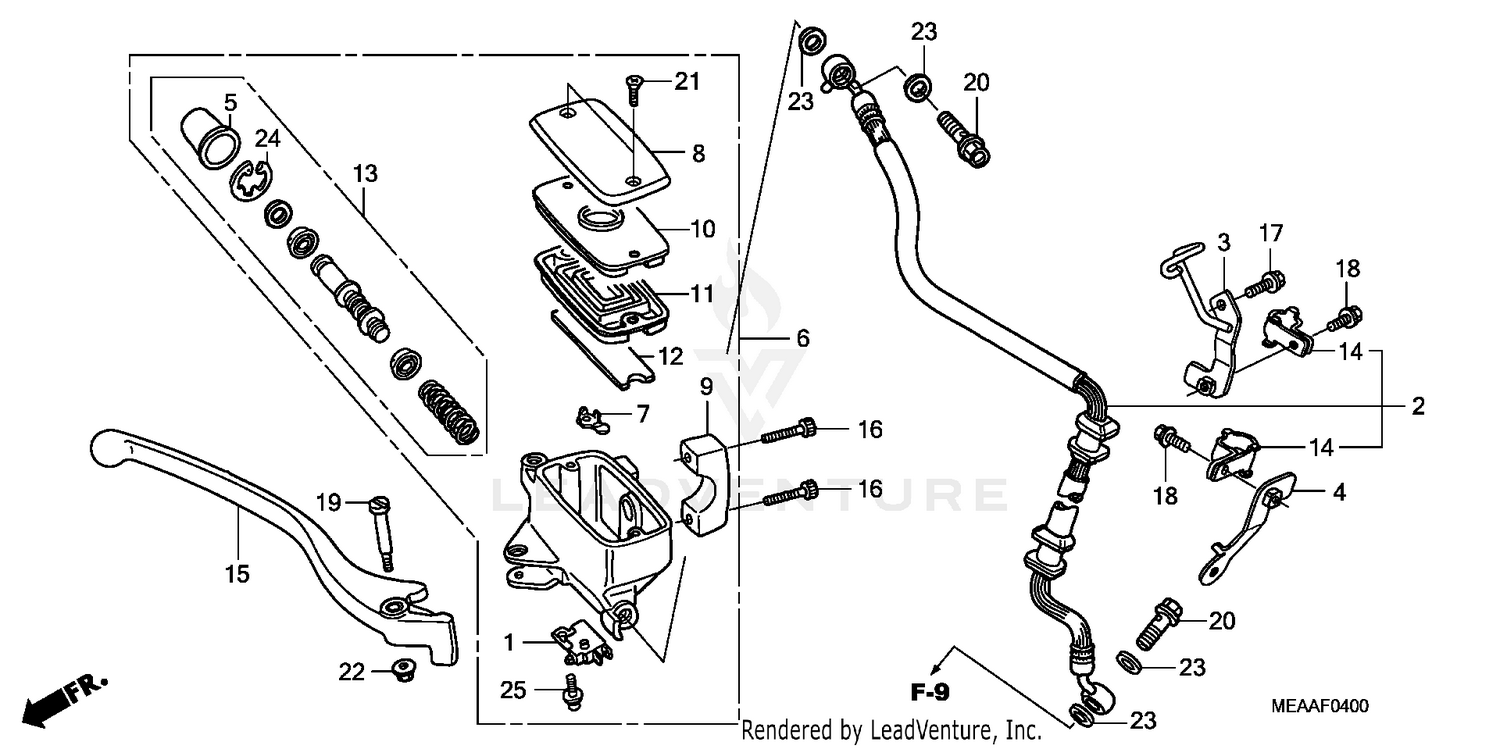

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MM5-600
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45126-MEA-741
|
$48.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, FR. BRAKE HOSE
45137-MEM-670
|
$78.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FR. HOSE CLIP
45138-MEM-670
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
MASTER CYLINDER SUB-ASSY., FR. (NISSIN)
45510-MEA-A21
|
$131.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, MASTER CYLINDER (NISSIN)
45513-MM4-016
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER (NISSIN)
45517-MEG-006
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DIAPHRAGM (NISSIN)
45518-MM5-006
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM (NISSIN)
45520-MM5-006
|
$18.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLOAT, FR. MASTER CYLINDER (NISSIN)
45523-MN5-006
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)
45530-MN9-305
|
$61.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP, BRAKE HOSE
52115-ML8-670
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, R. HANDLEBAR (COO)
53175-MFR-305
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER, R. HANDLE (COO)
53175-ML5-006
Superseded by 53175-MFR-305
|
$22.73 | ||
|
Unavailable |
|||
|
#16
BOLT, SOCKET (6X22)
90101-MCL-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X12) (DR)
90104-MEA-740
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X10)
90106-MBZ-G00
|
$1.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
90158-MT7-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
