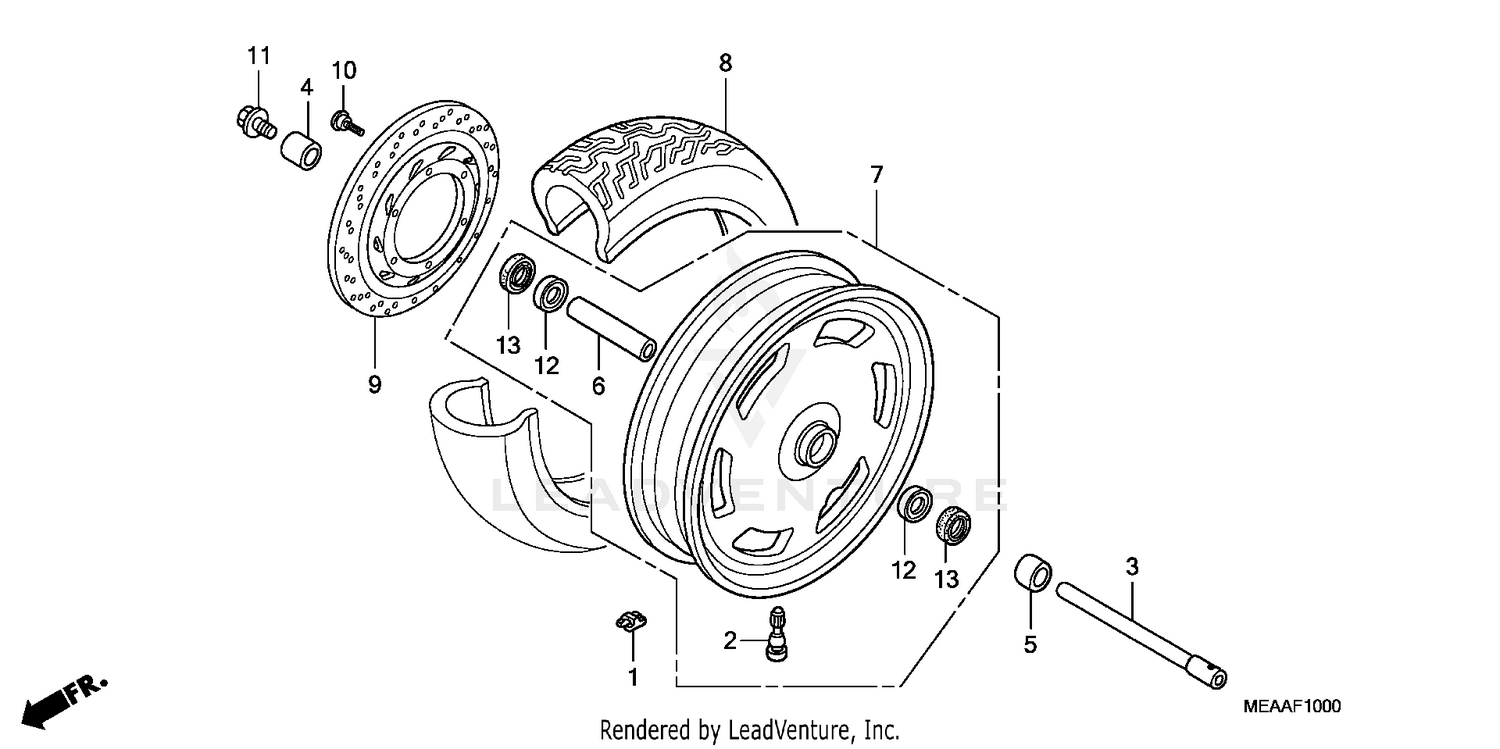

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WEIGHT, BALANCE (10G)
42704-MER-D00
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (20G)
42705-MER-D00
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
WEIGHT, BALANCE (30G)
42706-MER-D00
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-MEA-670
|
$83.67 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, R. FR. WHEEL SIDE
44311-MEA-670
|
$23.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. FR. WHEEL SIDE
44312-MEA-670
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, FR. AXLE DISTANCE (27X119)
44620-MZ0-010
|
$17.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR.
44650-MEA-910
|
$891.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR. (140/80-17) (M/C 69H) (DUNLOP)
44711-MEA-911
|
$166.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISK, R. FR. BRAKE
45251-MEA-671
|
$253.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Unavailable |
|||
|
#11
BOLT, FR. AXLE
90105-MBT-610
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (6304UU)
91053-MM5-004
|
$38.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL (30X52X7)
91253-442-003
|
$16.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
