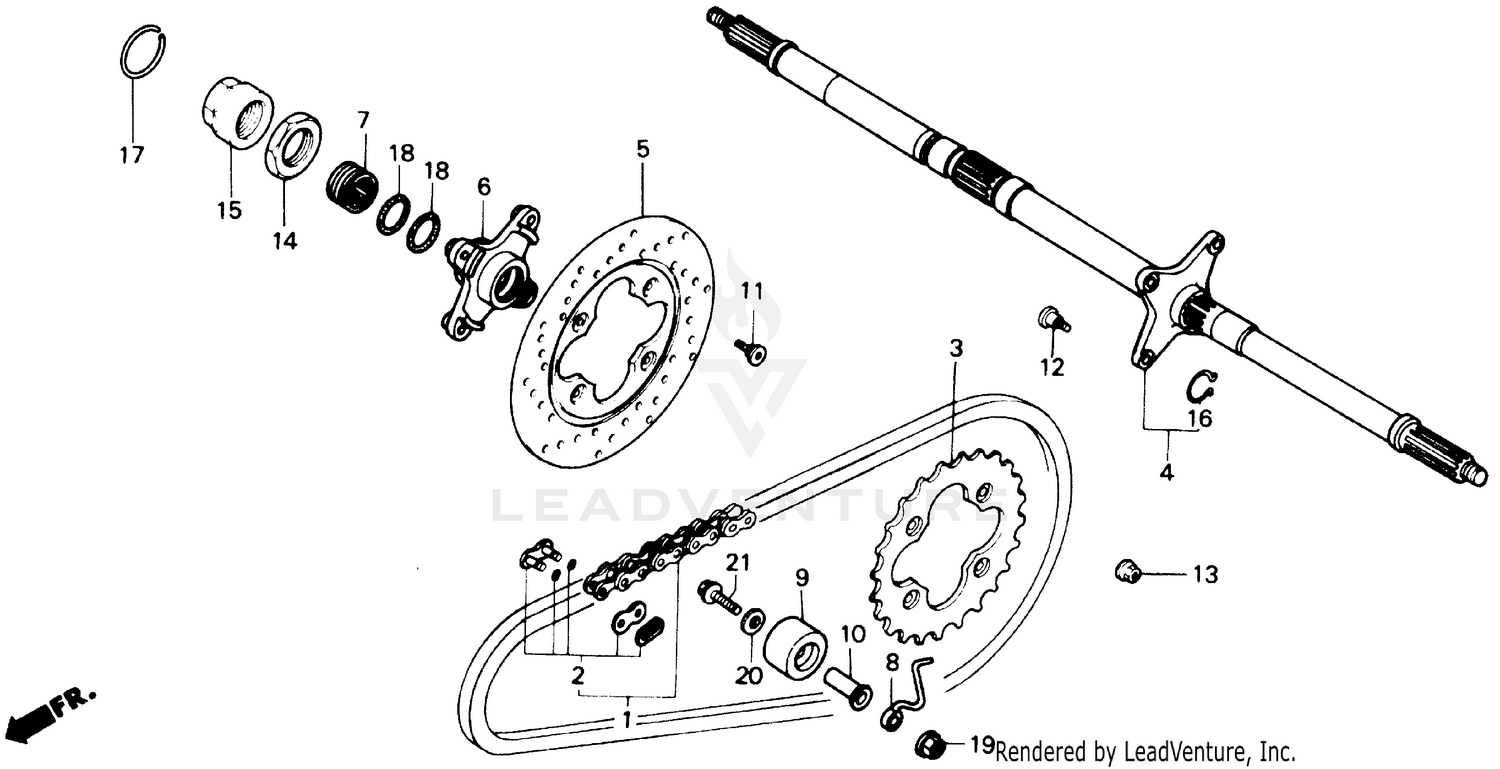

Rear Wheel Axle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE (NOT AVAILABLE)
40530-HB9-771
Superseded by 405W3-HB9-505
|
$124.63 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE (NOT AVAILABLE)
40530-HB9-772
Superseded by 405W3-HB9-505
|
$124.63 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (TAKASAGO) (NOT AVAILABLE)
40531-HB9-005
|
$4.49 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (DAIDO)
40531-HB5-671
|
$5.60 | ||
|
Unavailable |
|||
|
#3
SPROCKET, FINAL DRIVEN (38T)
41201-HC0-000
|
$110.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, RR.
42310-HB9-771
|
$484.39 | ||
|
Unavailable |
|||
|
#5
DISK, BRAKE (NOT AVAILABLE)
43122-HB9-000
|
$246.49 | ||
|
Unavailable |
|||
|
#6
FLANGE, BRAKE DISK (NOT AVAILABLE)
43126-HB9-770
|
$79.26 | ||
|
Unavailable |
|||
|
#7
BOLT, RR. AXLE
43127-HB9-000
|
$38.98 | ||
|
Unavailable |
|||
|
#8
GUIDE, JOINT HOSE (NOT AVAILABLE)
50254-HB9-770
|
$5.98 | ||
|
Unavailable |
|||
|
#9
ROLLER, CHAIN
52158-HB5-003
|
$23.15 | ||
|
Unavailable |
|||
|
#10
COLLAR, CHAIN ROLLER
52159-467-000
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, DISK (8X20)
90112-GZ0-000
|
$7.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, DISK (8X20)
90112-HB9-000
Superseded by 90112-GZ0-000
|
$7.95 | ||
|
Unavailable |
|||
|
#12
BOLT, DRIVEN SPROCKET (10MM)
90114-HA2-670
Superseded by 90114-HM3-A60
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT, RR. AXLE SPECIAL
90307-HA2-000
|
$27.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, RR. AXLE (B)
90308-HB9-000
|
$16.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP (OUTER) (40MM)
90651-HA2-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP (OUTER) (37MM)
90652-HA2-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (39.6X1.3) (NOK)
91351-HA2-003
Superseded by 91351-HA2-005
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
O-RING (39.6X1.3) (NOK)
91351-HA2-005
|
$2.77 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, PLAIN (8MM)
94101-08800
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X80)
96400-08080-00
|
$2.26 | ||
|
Unavailable |
|||
