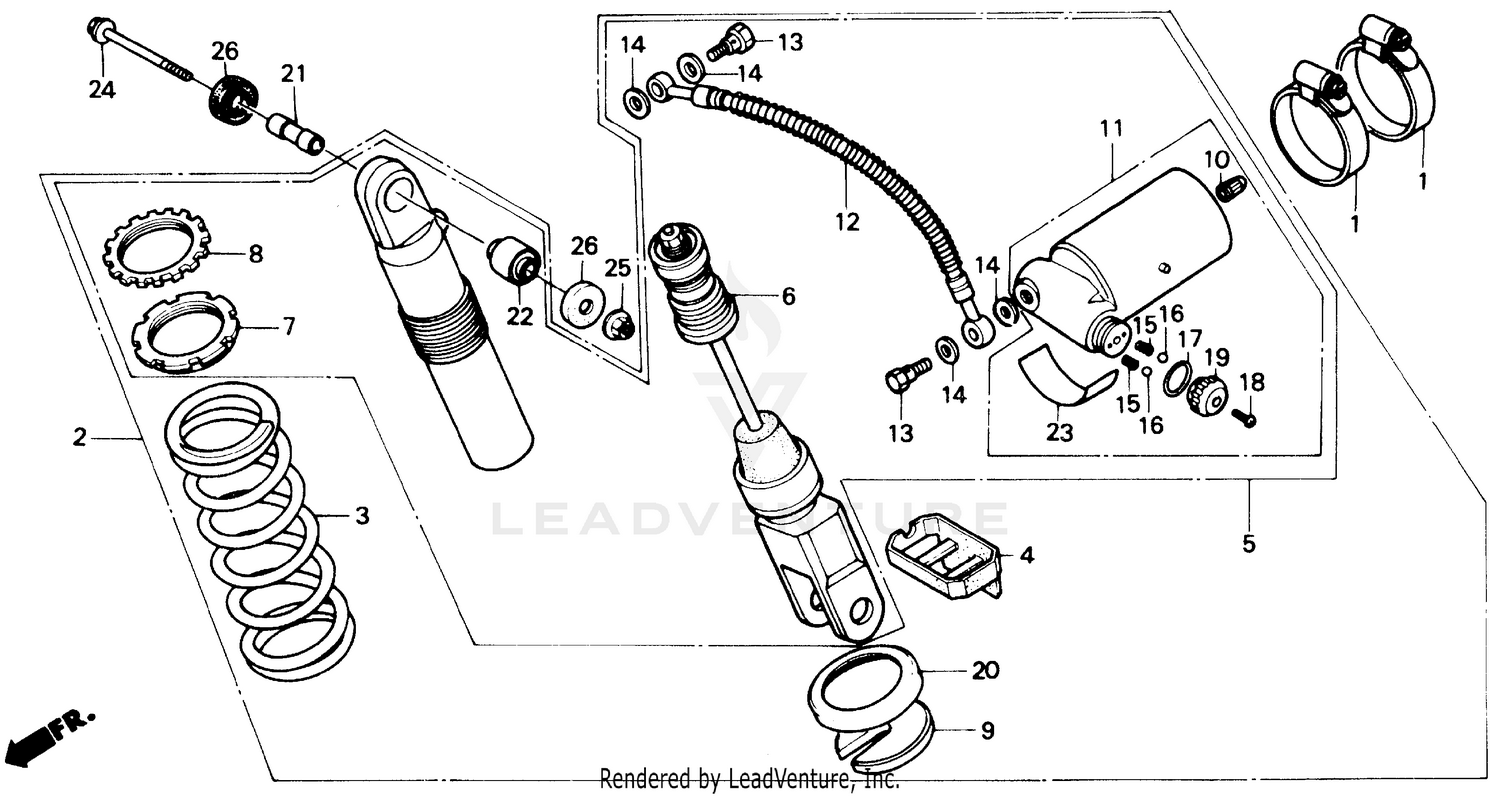

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SUB-TANK
50252-HB9-770
|
$18.49 | ||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)
52400-HB9-771
|
$714.95 | ||
|
Unavailable |
|||
|
#3
SPRING, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)
52401-HB9-771
|
$104.93 | ||
|
Unavailable |
|||
|
#4
BOOT, RR. SHOCK ABSORBER (NOT AVAILABLE)
52402-964-671
|
$8.16 | ||
|
Unavailable |
|||
|
#5
DAMPER, RR. (SHOWA)
52410-HB9-771
|
$905.83 | ||
|
Unavailable |
|||
|
#6
ROD, PISTON (SHOWA) (NOT AVAILABLE)
52421-HB9-771
|
$301.07 | ||
|
Unavailable |
|||
|
#7
ADJUSTER, SPRING
52422-MA0-003
|
$44.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTER
52423-KA3-711
|
$25.55 | ||
|
Unavailable |
|||
|
#9
STOPPER, SPRING SEAT
52424-MA0-003
|
$14.38 | ||
|
Unavailable |
|||
|
#10
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-TANK ASSY. (SHOWA) (NOT AVAILABLE)
52430-HB9-771
|
$114.39 | ||
|
Unavailable |
|||
|
#12
HOSE, JOINT (SHOWA) (NOT AVAILABLE)
52440-HB9-671
|
$58.64 | ||
|
Unavailable |
|||
|
#13
BOLT, OIL (10X22)
52441-KA3-711
|
$8.32 | ||
|
Unavailable |
|||
|
#14
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, CLICK (NOT AVAILABLE)
52445-KA4-731
|
$4.47 | ||
|
Unavailable |
|||
|
#16
BALL
52446-KF0-003
|
$2.19 | ||
|
Unavailable |
|||
|
#17
O-RING (2X23.5)
52447-KF0-003
|
$3.86 | ||
|
Unavailable |
|||
|
#18
SCREW
52448-KF0-003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, ADJUSTING (NOT AVAILABLE)
52449-HB9-771
|
$10.80 | ||
|
Unavailable |
|||
|
#20
SEAT, SPRING
52459-964-003
|
$22.84 | ||
|
Unavailable |
|||
|
#21
COLLAR, SHOCK ABSORBER PIVOT (NOT AVAILABLE)
52487-HB9-000
|
$15.84 | ||
|
Unavailable |
|||
|
#23
LABEL, RR. DAMPER WARNING
87516-MK2-681
|
$4.63 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (10X70)
90158-MG3-000
|
$15.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SEAL, SHOCK ABSORBER PIVOT
91265-HA2-013
|
$8.69 | ||
|
Unavailable |
|||
