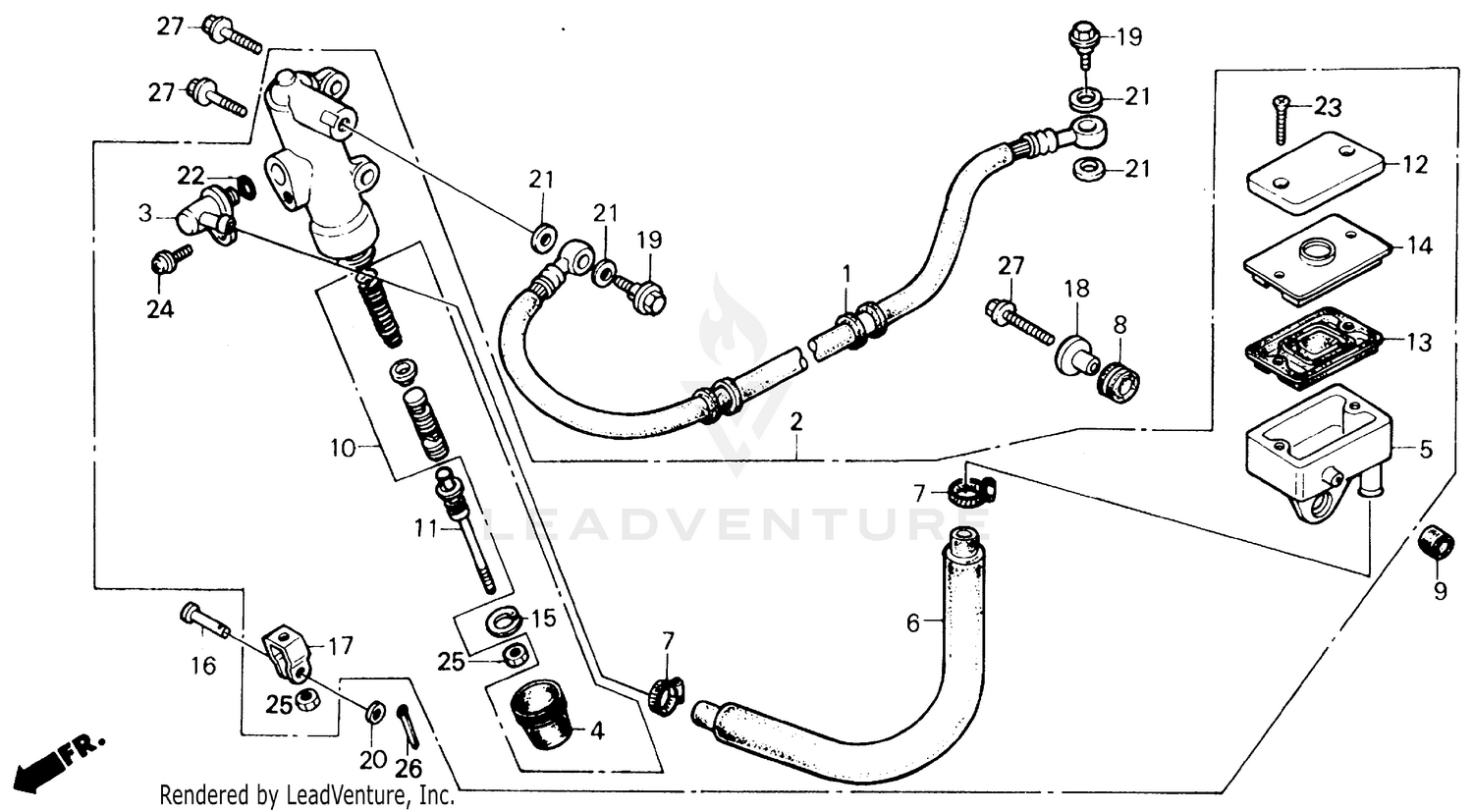

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE ASSY., RR. BRAKE (NICHIRIN) (NOT AVAILABLE)
43310-HB9-771
|
$51.81 | ||
|
Unavailable |
|||
|
#2
MASTER CYLINDER ASSY., RR. BRAKE (NISSIN) (ALT P/N 43510-HB9-P00 DOESN'T INCLUDE 5,6,7,12,13,14,23) (NA USE ALT:43510-HB9-P00)
43500-HB9-771
|
$221.15 | ||
|
Unavailable |
|||
|
#3
CONNECTOR, MASTER CYLINDER (NOT AVAILABLE)
43503-HB9-006
|
$5.98 | ||
|
Unavailable |
|||
|
#4
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, OIL
43511-HA2-016
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. BRAKE MASTER CYLINDER
43512-HB9-000
|
$23.11 | ||
|
Unavailable |
|||
|
#7
CLAMP, MASTER CYLINDER OIL HOSE
43514-964-006
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, OIL CUP MOUNTING
43516-HA2-000
|
$5.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RUBBER, OIL CUP (NOT AVAILABLE)
43517-HB9-000
|
$0.95 | ||
|
Unavailable |
|||
|
#10
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-305
Superseded by 43520-MB2-315
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, PUSH (NOT AVAILABLE)
43530-HB9-006
|
$14.04 | ||
|
Unavailable |
|||
|
#12
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, BRAKE ROD
46503-371-000
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD
46504-MB2-006
|
$8.17 | ||
|
Unavailable |
|||
|
#18
COLLAR (6.3X13)
50324-425-010
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$13.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-KM3-751
|
$13.35 | ||
|
Unavailable |
|||
|
#20
WASHER (7X12)
90501-310-000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, FLAT (4X30)
93600-04030-1A
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#25
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16150
Superseded by 94201-16250
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, COTTER (1.6X25)
94201-16250
|
$1.08 | ||
|
Unavailable |
|||
|
#27
BOLT, FLANGE (6X22)
96300-06022-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X22)
96400-06022-00
Superseded by 96300-06022-00
|
$1.60 | ||
|
Unavailable |
|||
